Flange Magnetic Alignment Pin

The Strong Hand Tools Magnetic Alignment Pin (MAP200) is a compact (0.72 kg) pipe-fitting tool engineered from CNC-machined, anodized aluminum to streamline the leveling and alignment of ferrous pipe flanges.

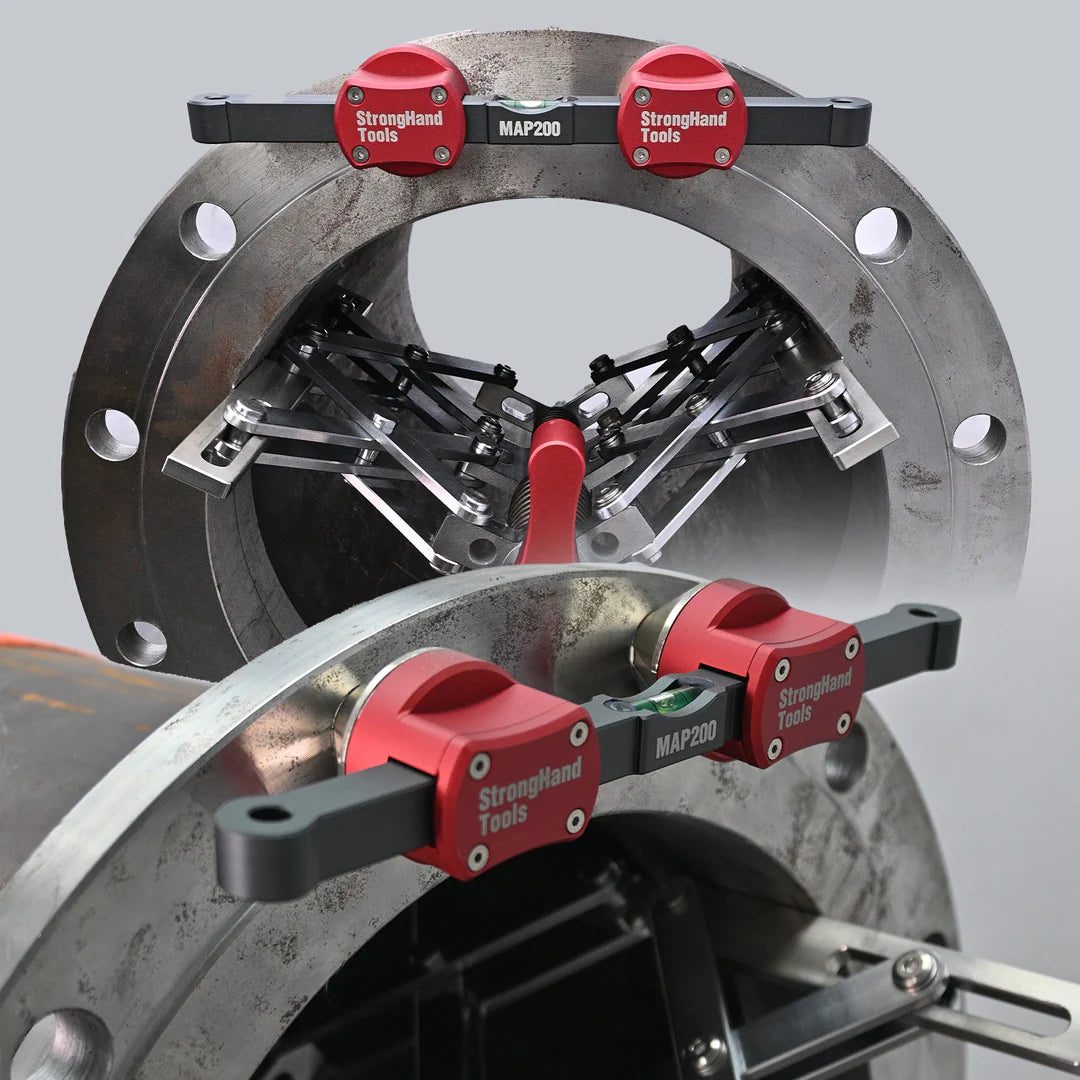

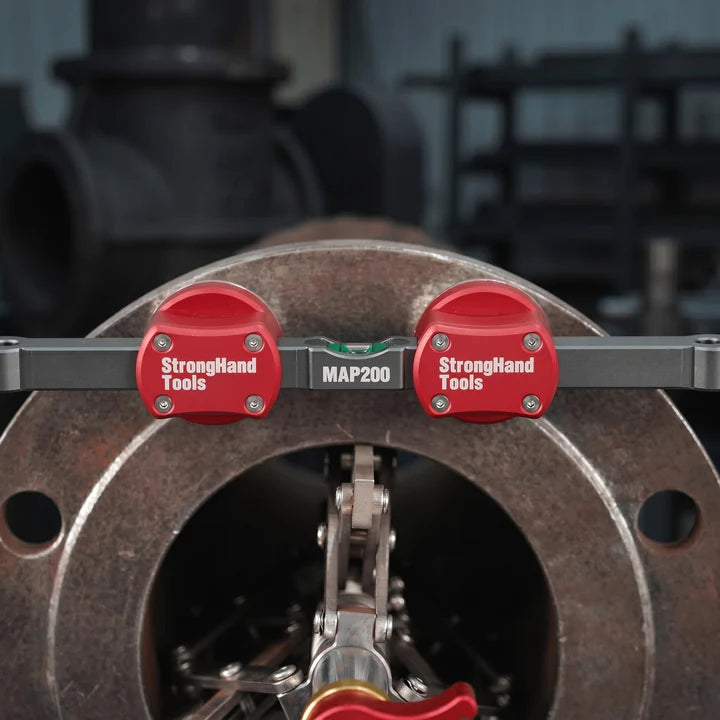

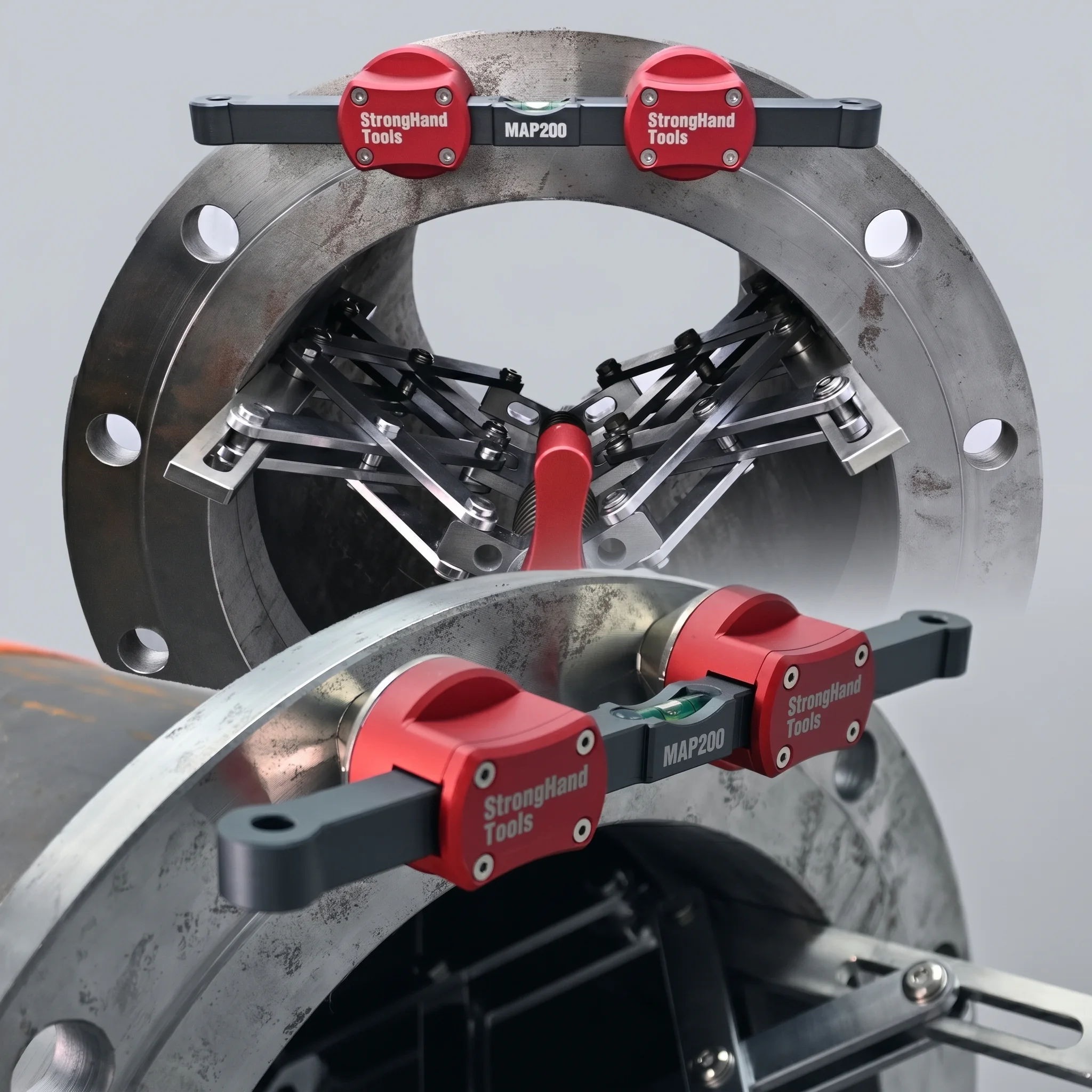

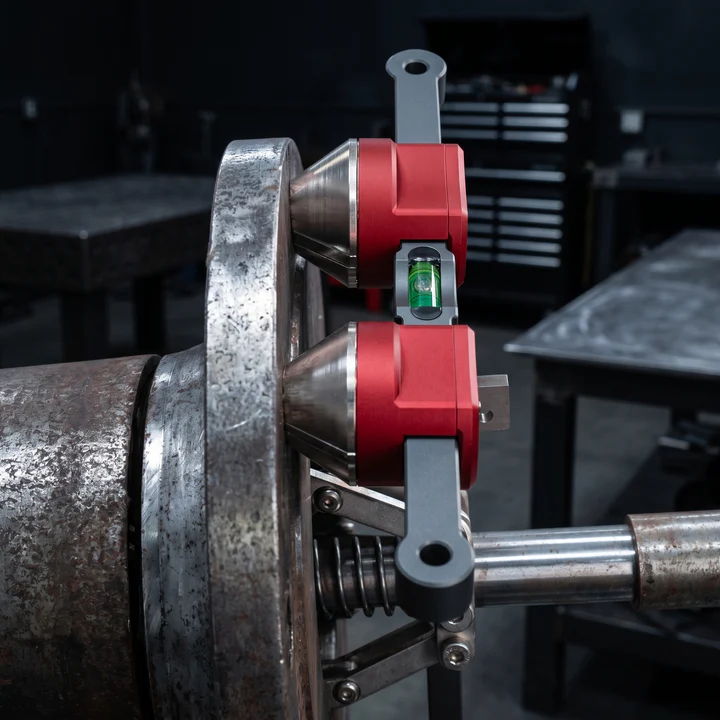

Designed for efficient operation even while wearing heavy welding gloves, it utilizes spring-loaded, self-aligning pin heads that drop directly into adjacent bolt holes while integrated, ultra-strong magnets instantly lock the unit securely to the steel surface.

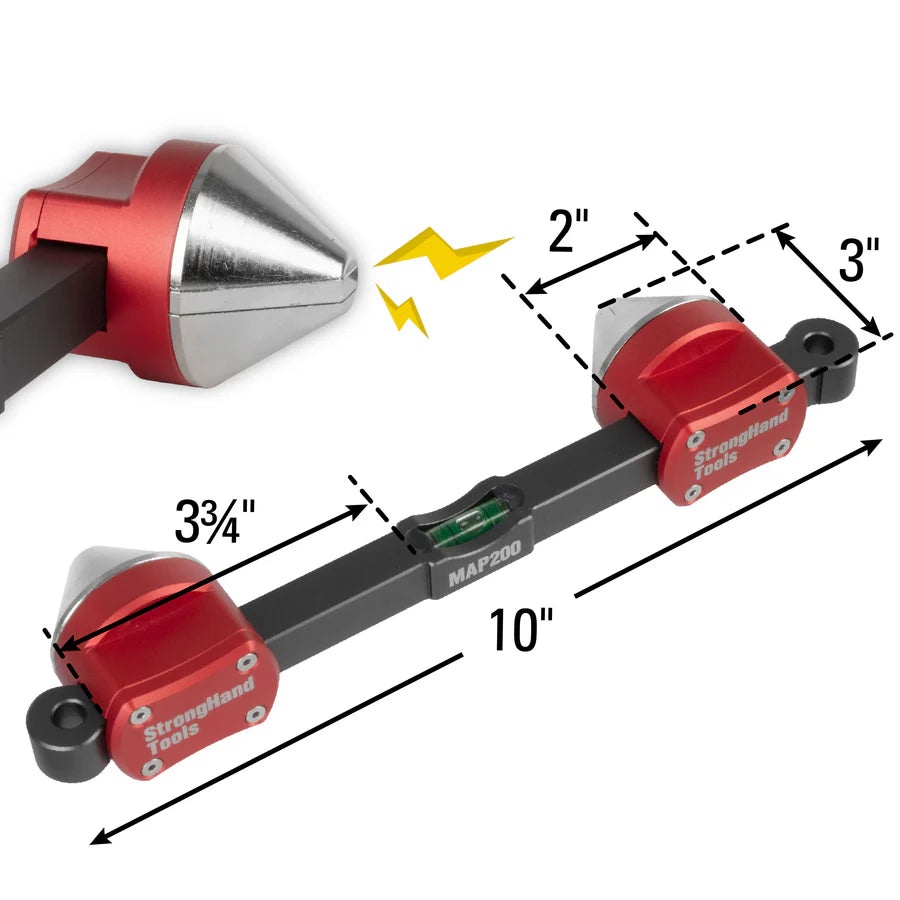

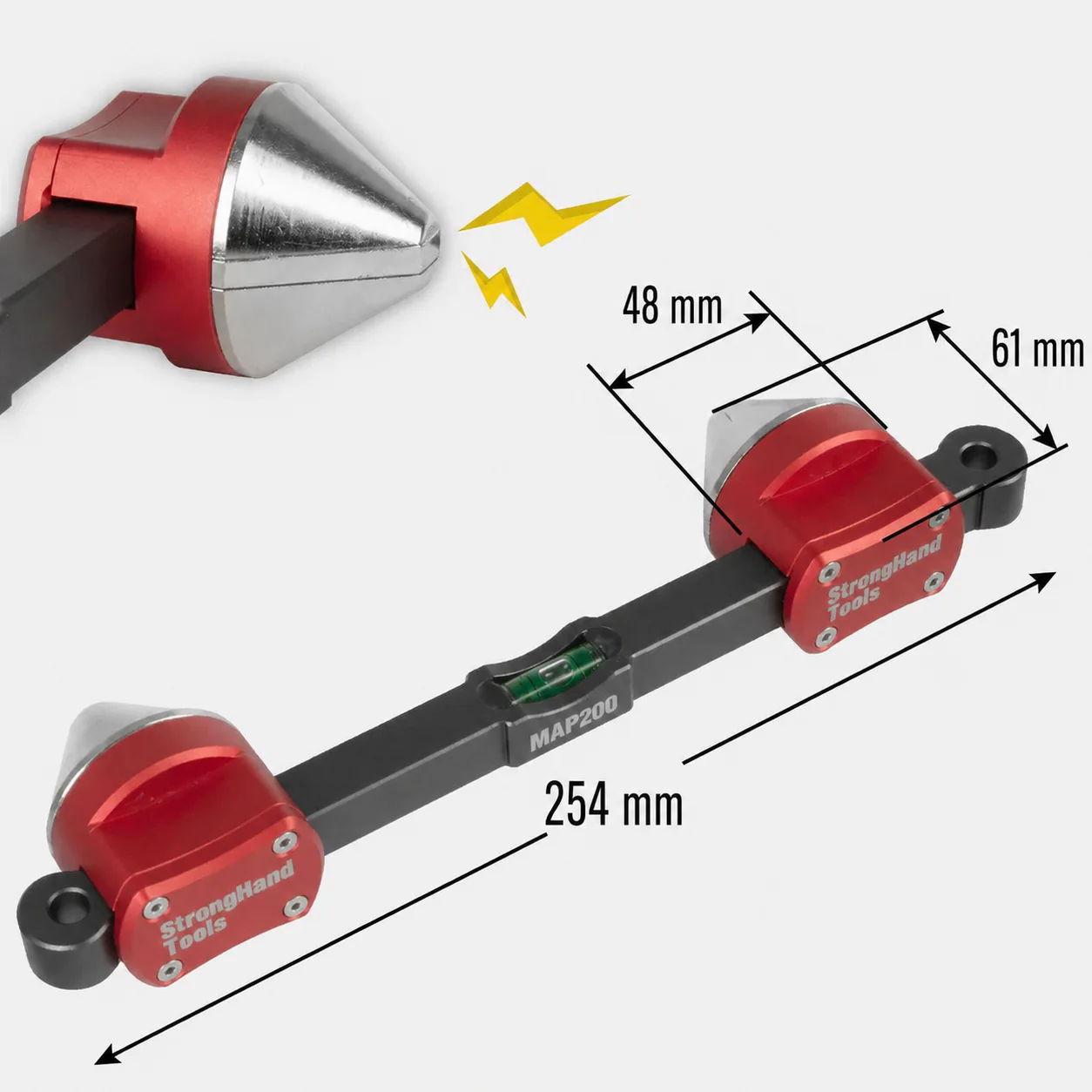

Featuring a built-in bubble vial for fast horizontal calibration, the adjustable design accommodates pin diameters from 12.7 mm to 50.8 mm and center-to-center hole spacings from 79.8 mm to 177.0 mm. This makes it highly versatile across standard flanges ranging from 12.7 mm to 508.0 mm, and it comes complete with a rugged, protective foam storage case to safeguard its precision components between tasks.

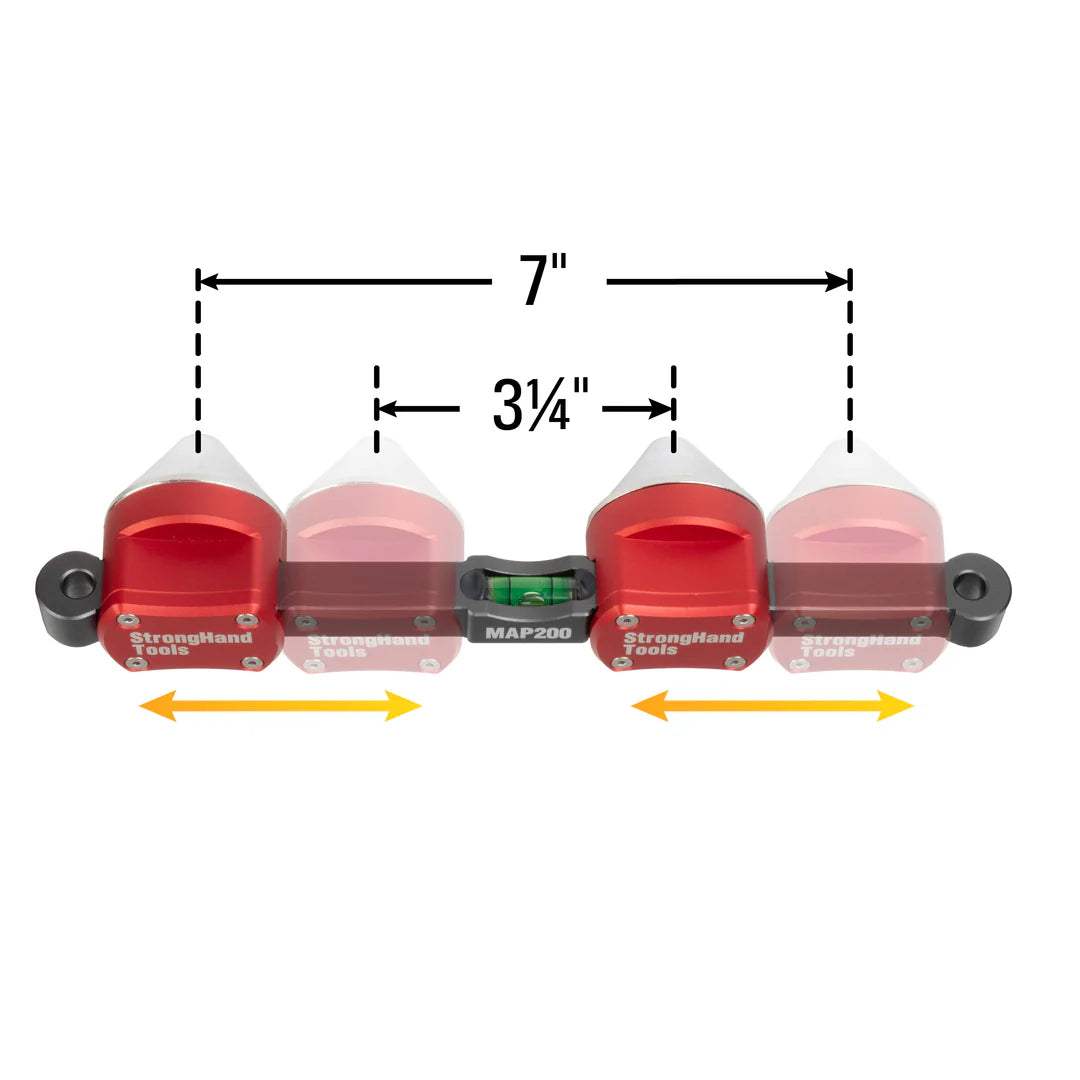

Slides smoothly to accommodate a center-to-center distance from a minimum of 79.8 mm up to a maximum of 177.0 mm.

A strong 2.0 kg magnetic hold that locks the tool tight against the steel flange face so it won't slip or sag.

Premium CNC-machined, anodized aluminum construction built to survive rough field drops while maintaining exact geometric tolerances.

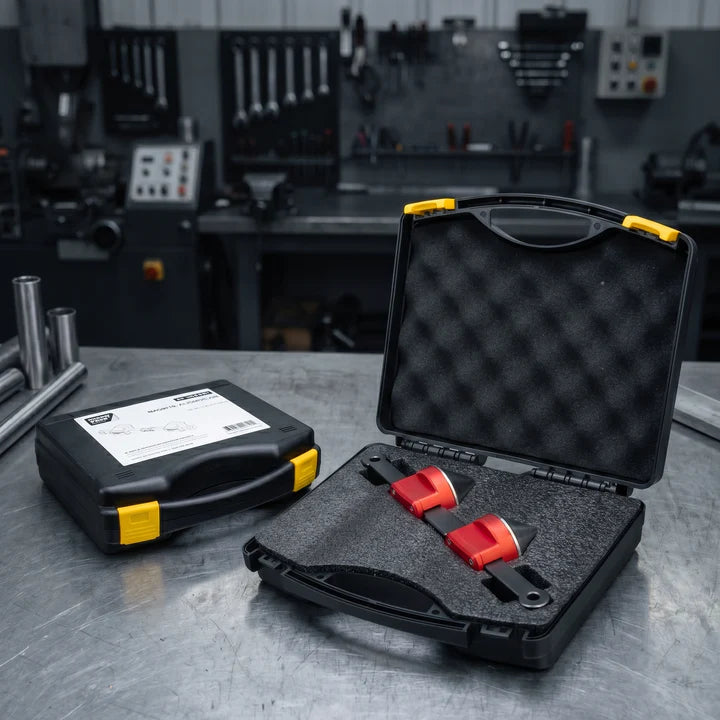

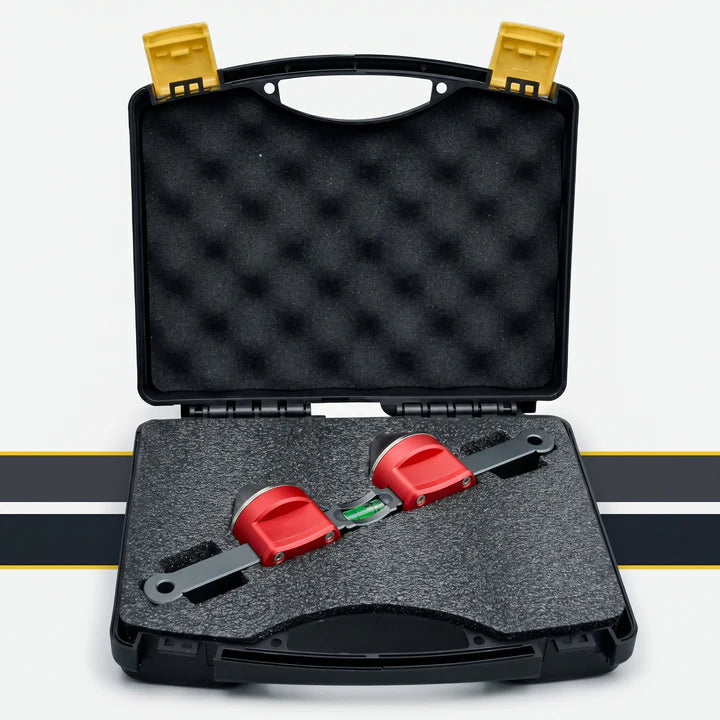

Ships in a custom-fit protective foam case to shield the precision vial and machined surfaces from being scratched up in a heavy job box.

Eliminates the frustration of spinning dirty, slag-covered nuts or dealing with crossed threads.

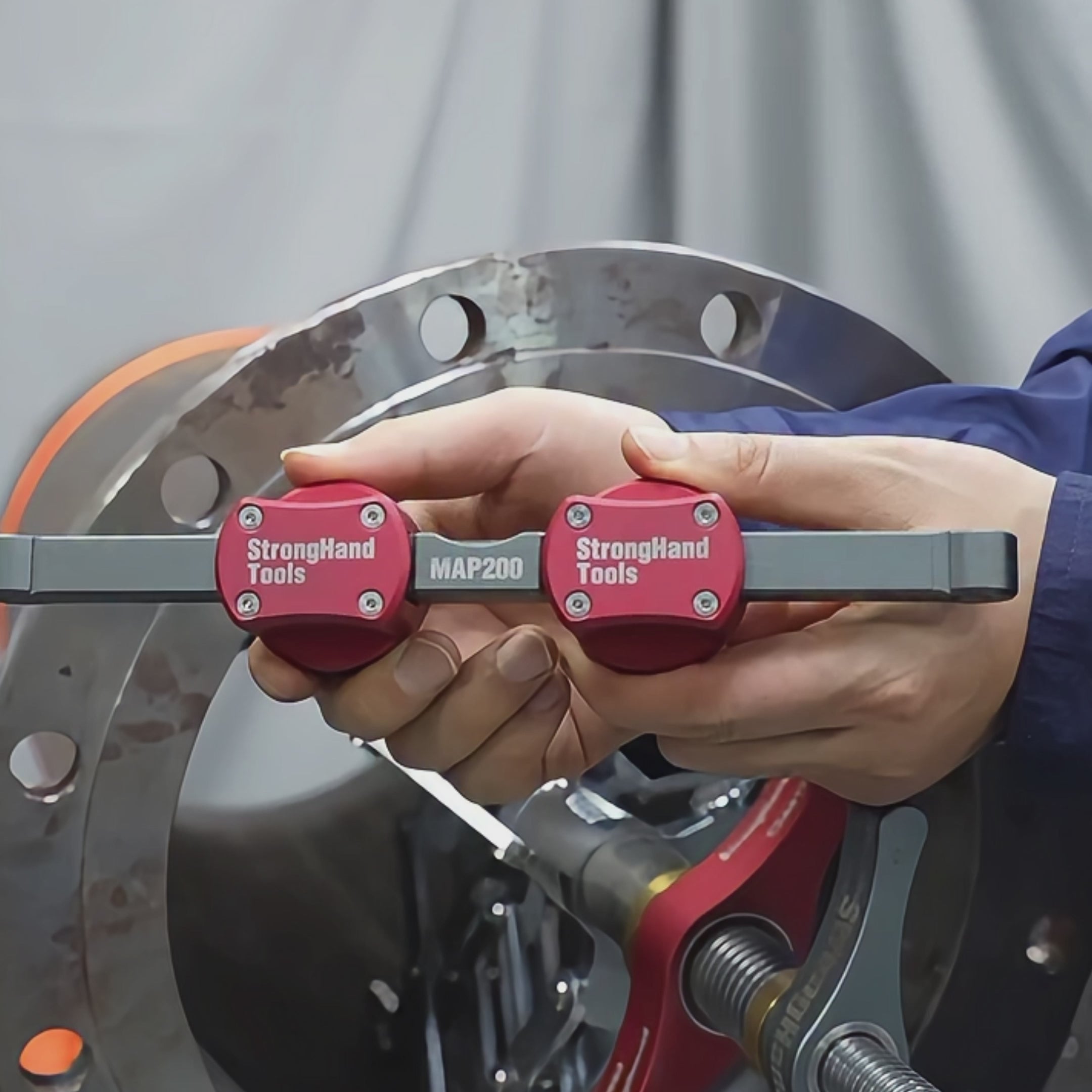

Designed to be used completely while wearing heavy welding gloves. You simply snap it in and go to work.

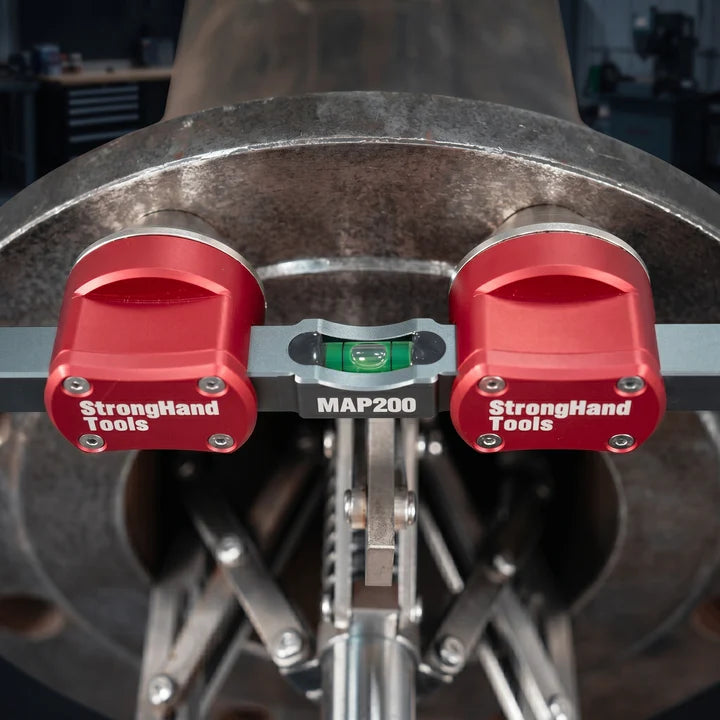

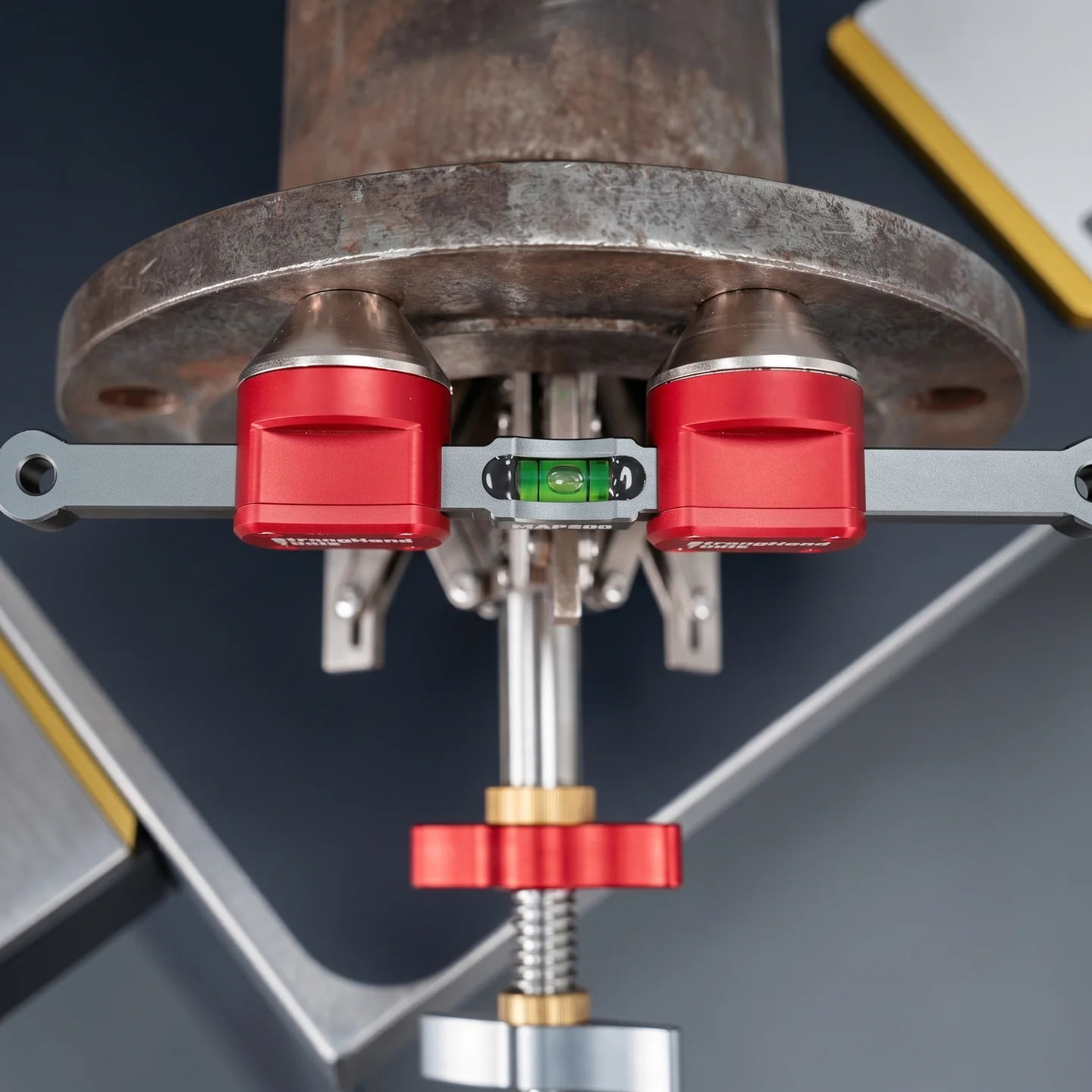

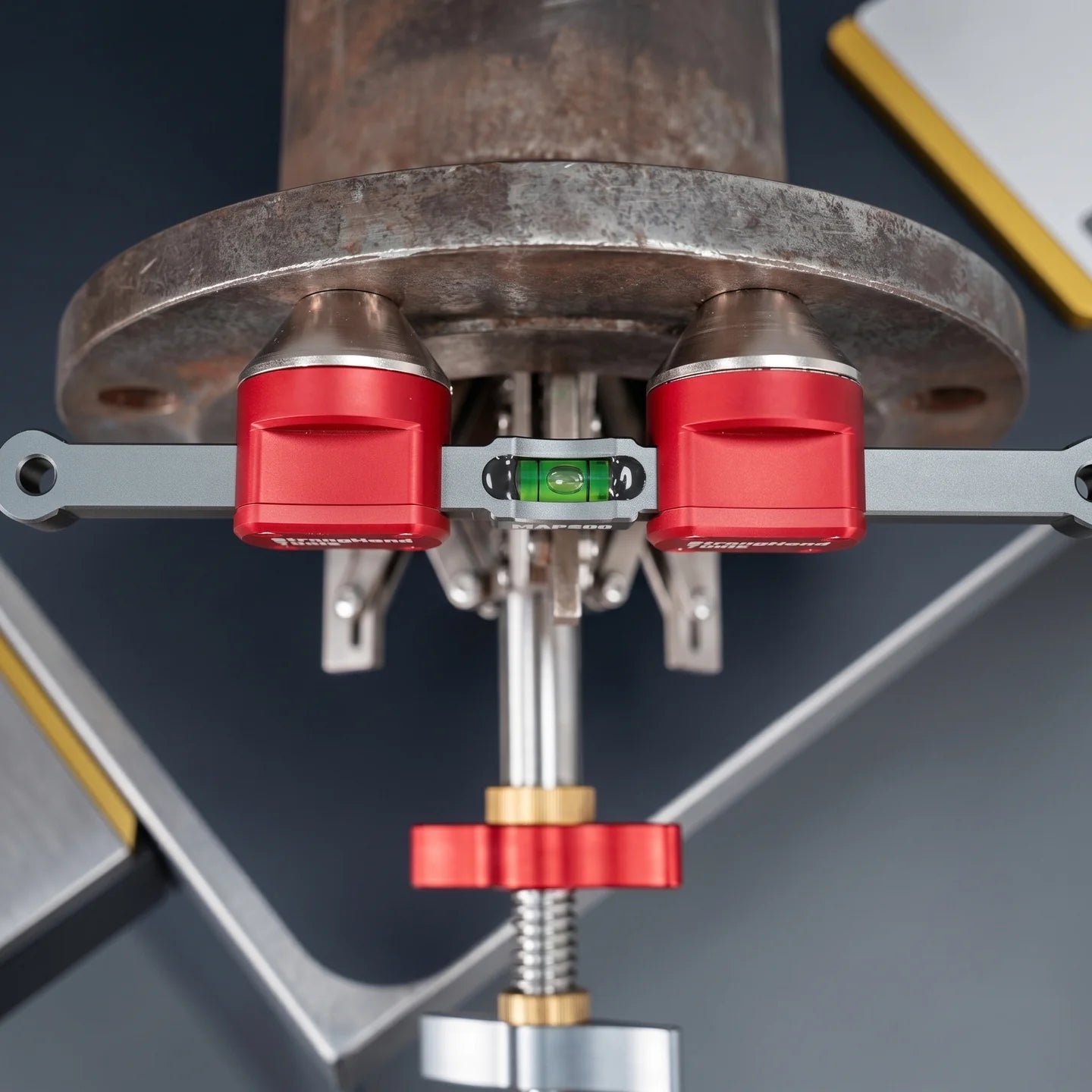

Features an integrated horizontal bubble vial right in the center frame, allowing you to align the holes and check your level in one movement without grabbing a separate torpedo level.

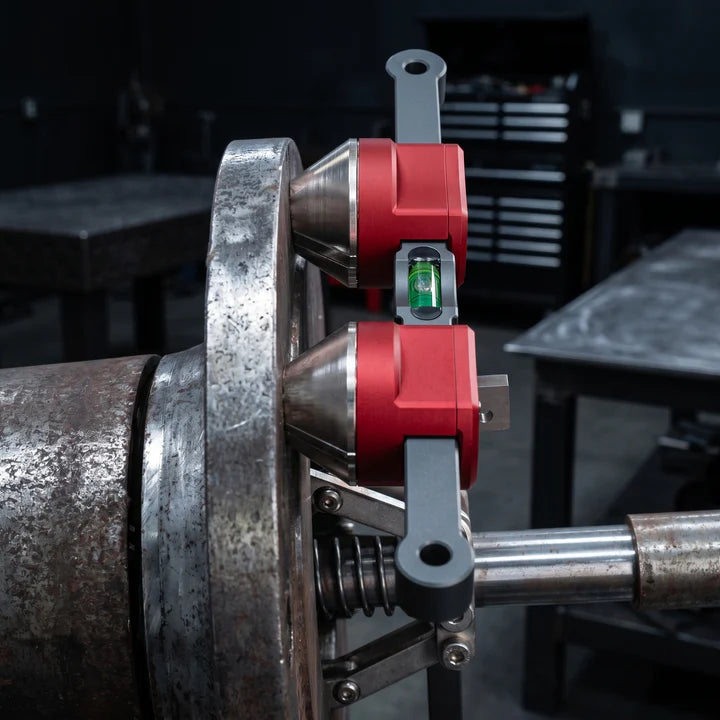

The tapered pin heads instantly seat themselves firmly against the edges of the bolt holes for perfect concentric accuracy.
