The only modular ultra heavy duty welding table with positionable, self-locating, reversible table plates for unlimited possibilities in heavy duty fixturing for welding and fabrication. Accurately locate, position and clamp stock for higher quality welding.
BuildPro Engineers developed the Alpha 28 line by customer demand for an affordable, heavy duty, metric Welding Table.
The five-face Alpha 28 Table is the optimal solution for precision vertical and horizontal fixturing to expand your capabilities in welding and fabrication.
Table Accuracy
| Hole Diameter: | 28 + .20/-0 mm |
| Hole Spacing: | 100 ±0.05 mm |
| Table Flatness: | ±0.125 mm per 600 x 600 mm |
| Plate Thickness: | 25 ±0.06 mm |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Coefficient of Friction: | 0.37 |
Top Plate
| Material: | P20 |
| Hardness: | 58-62 HRC |
Side Plate
| Material: | Q345B |
| Hardness: | 50-55 HRC |
Table Top Plates are made from tough P20 low alloy tool steel for a 60.5HRC hardness, then CNC machined for flatness.
QPQ Nitriding Treatment provides corrosion and weld spatter resistance for superior performance and wear.
Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.
2X LIFE! Plates can be reversed to use both sides, which doubles the table lifespan.
Each leg can be loaded up to 2,000 kg.
Alpha 28 Tables feature 6 legs compared to competitors' 4 legs on 2.4 x 1.2 and 2.0 x 1.0 M table sizes for greater rigidity and flatness.
System Borehole
Hole Diameter: 28 +0.20/-0 mm
Hole Spacing: 100 ±0.050 mm
Large chamfer on top for easy insertion. Chamfer on underside as well to maximize bolt clamping force.
Material Thickness
Plate Thickness: 25 ±0.06 mm
Tabletop Finish: Nitrided (Heat-Treated)
Coefficient of Friction: 0.37
Table Surface
Table Flatness: ±0.125 mm per 600 x 600 mm
Material: P20
Surface Hardness: 58-62 HRC
Base Material Hardness: 25.1-29.6 HRC
Borehole spacing 100 mm with additional 100 mm grid offset by 50 mm in the x and y axis, aka diagonal grid.
Self-Locating Plate System for Top and Side Plates
Locating features in the table frame and plate combine with our locator bushings for self alignment.
Table Side Panel
Material: Q35B
Hardness: 50-55 HRC

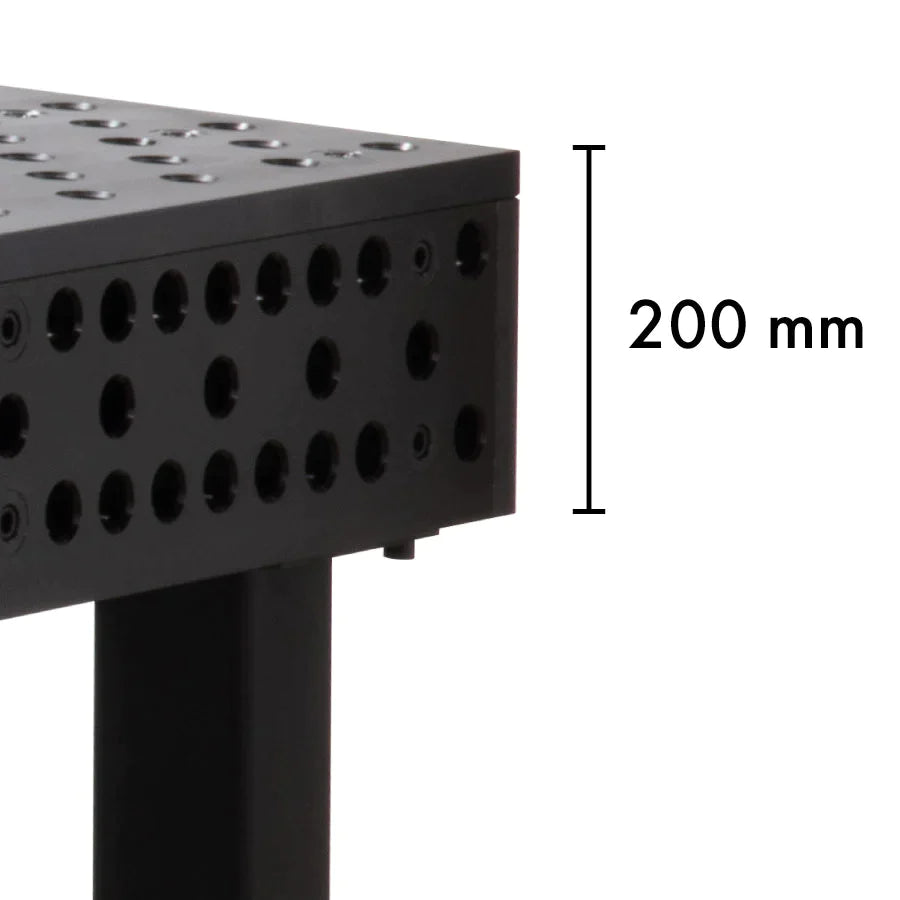

Tabletop: 200 mm high
Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
Stronger, More Rigid Frame
Standard Welded Plate Design
The welded construction of plate only design used by competitors often leads to distortion and high spots around the corners and center.
BuildPro Tubular Frame Design
The machined, tubular frame construction provides improved flatness and torsional stiffness compared to plate only frames.
The rigid frame with the modular plates on BuildPro tables means less high spots and less twisting compared to welded plate designs.
What People Say About Us
I am still waiting on the fixture kit but so far am very impressed with the craftsmanship put into this table. It is super heavy but easy to assemble with the help of a forklift.
Kevin T
Morro Bay, CA, USA
These tables are exceeding my expectations. They are built much heavier than what I envisioned.
Don W
Manitowoc, WI, USA
Excellent size. Good access for mounting and tool insertion. Very stiff. Very straight.
David S
San Luis Obispo, CA, USA
Discover Options

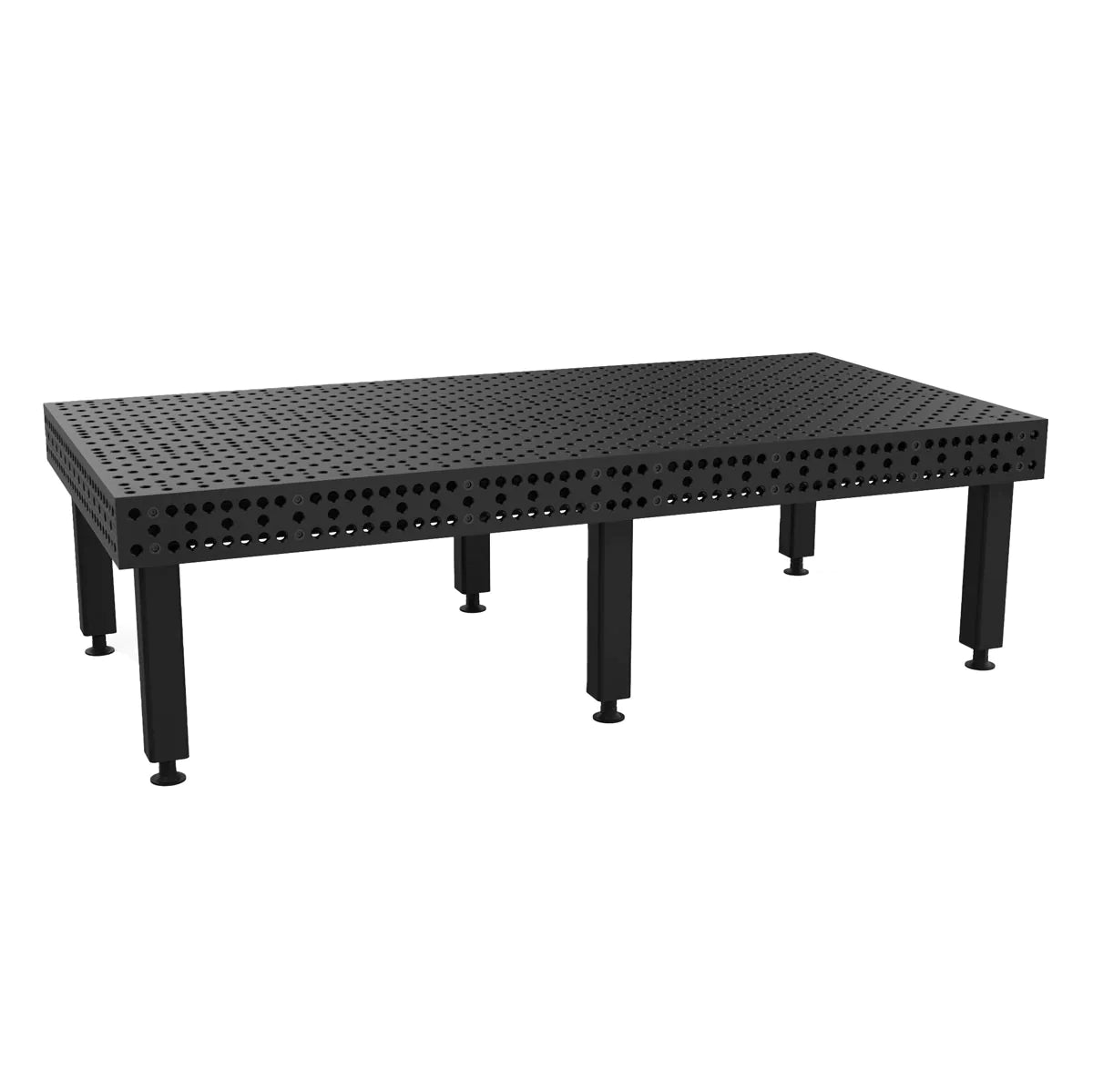

Tabletop + Fixed Length Legs
| Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
| T28-3015XQ-A1 | T28-81007 | 860 | 6,000 | 1,588 |
| T28-3015XQ-A2 | T28-81005 | 710 | 6,000 | 1,585 |
| T28-3015XQ-A3 | T28-81004 | 560 | 6,000 | 1,580 |

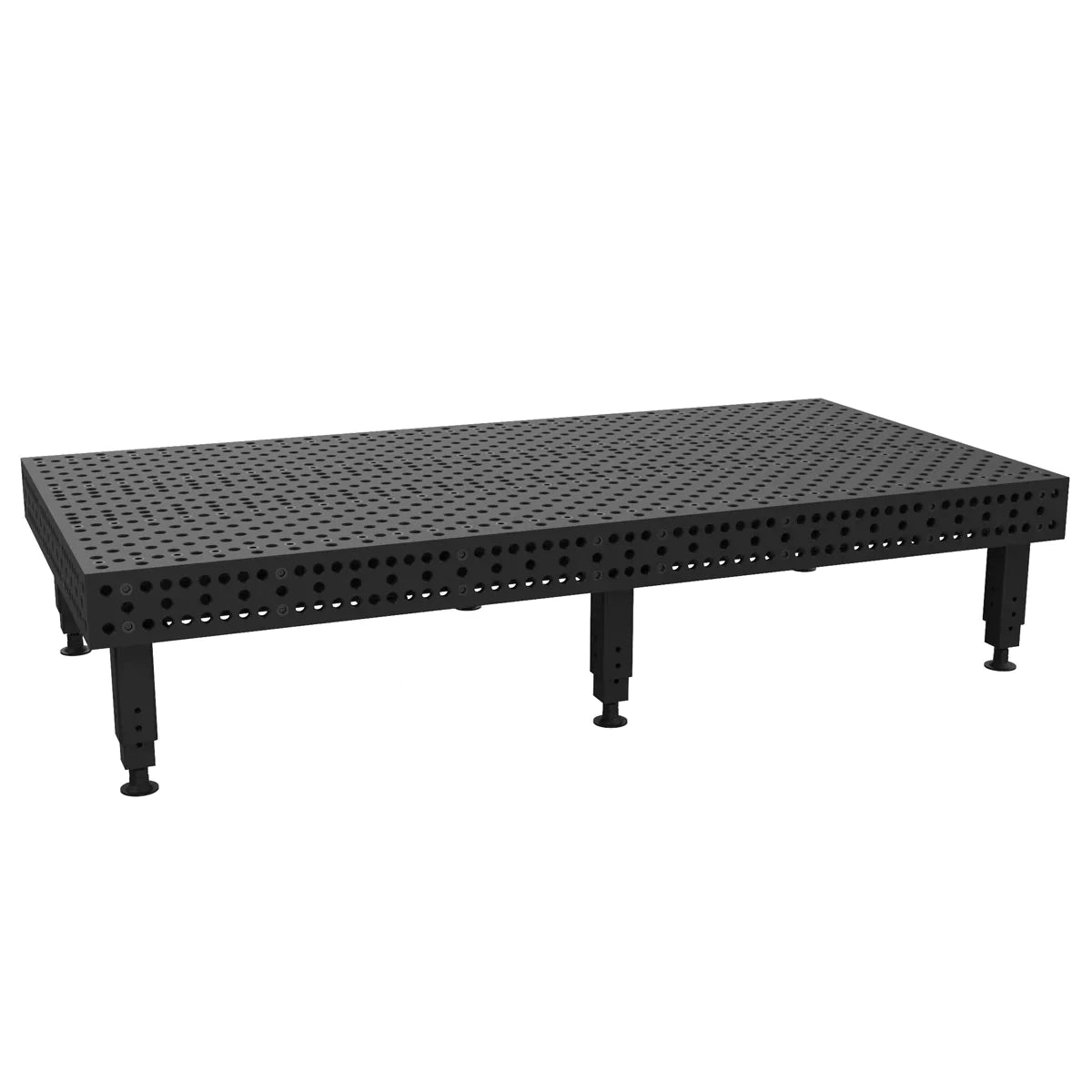

Tabletop + Height-Adjustable Legs 620 ~ 970 mm
| Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
| T28-3015XQ-B1 | T28-82009 | 810 ~ 1,160 | 6,000 | 1,650 |
Tabletop + Height-Adjustable Legs + Caster and Locking Brake 575 ~ 780 mm
| Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
| T28-3015XQ-C1 | T28-82407 | 765 ~ 970 | 4,800 | 1,720 |

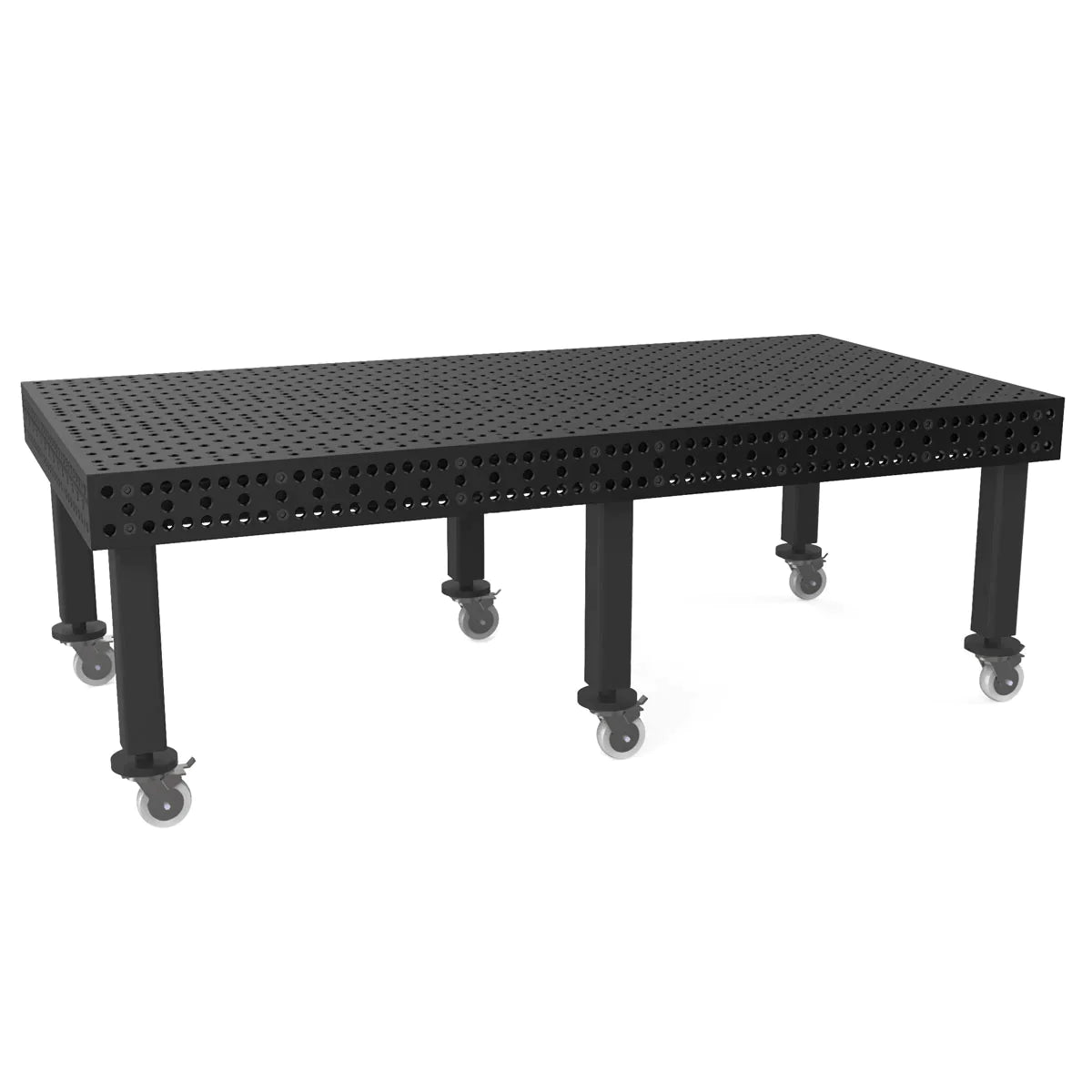

Tabletop + Fixed Length Legs + Caster and Locking Brake 845 mm
| Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
| T28-3015XQ-C2 | T28-81406 | 1,035 | 4,800 | 1,656 |
