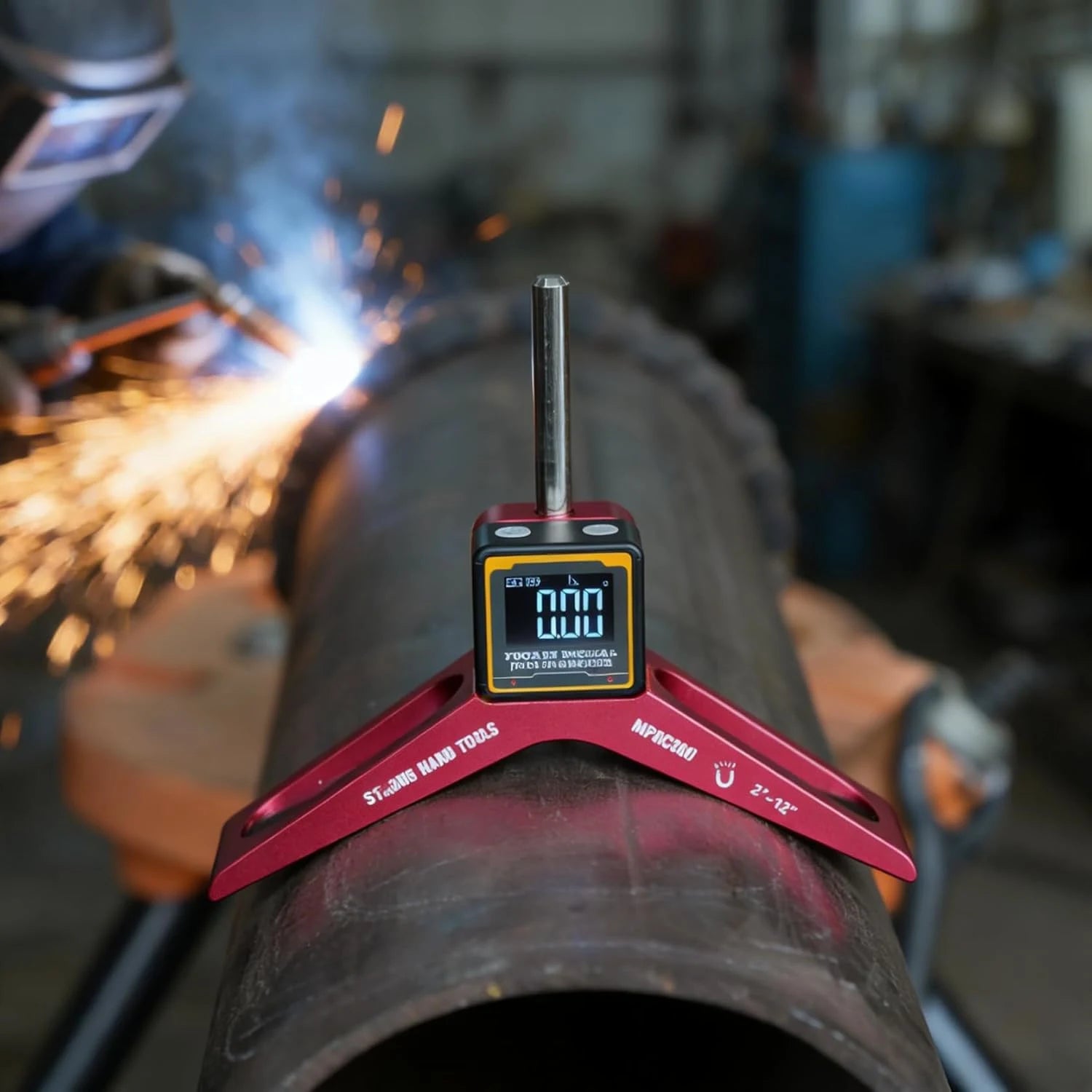

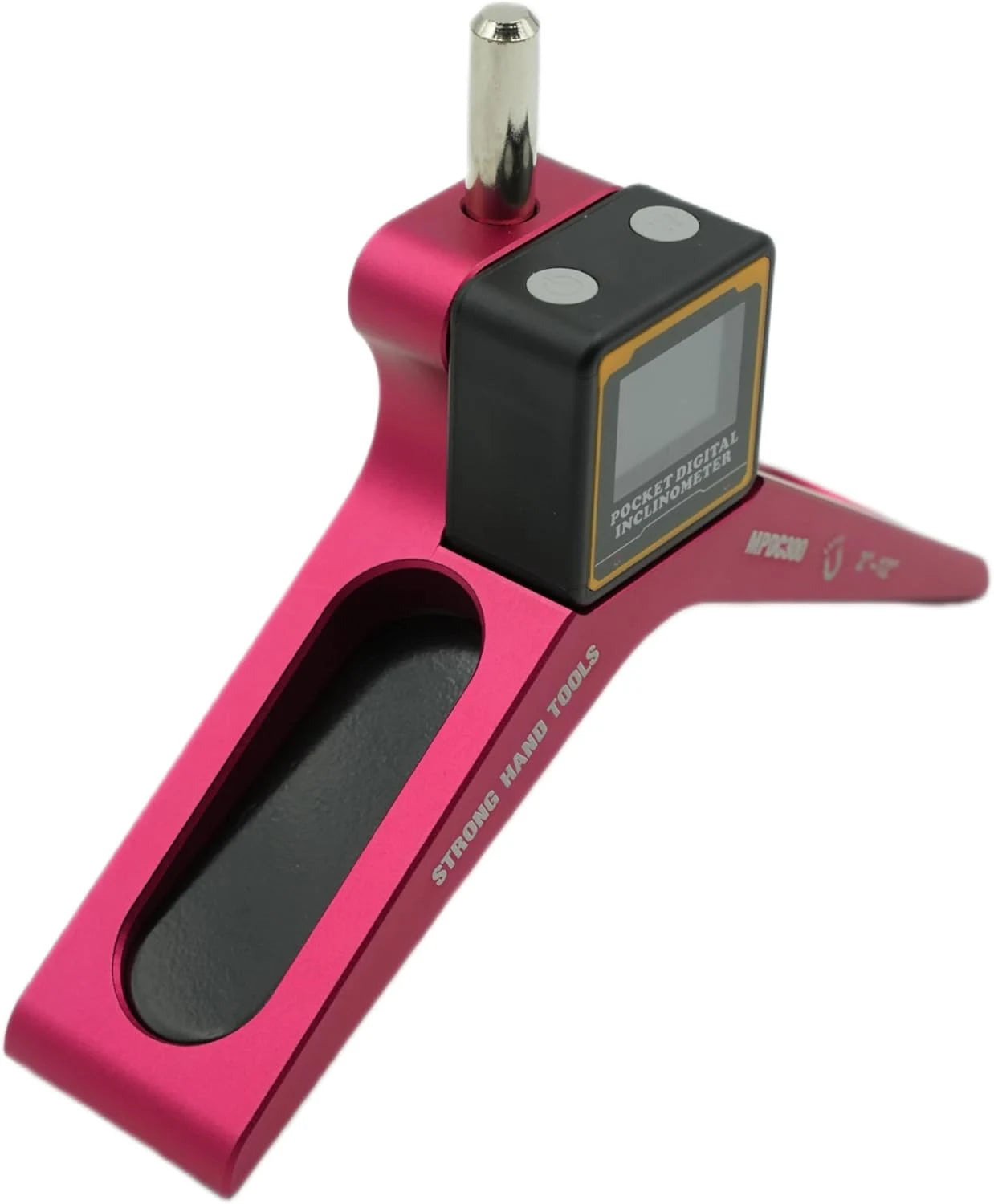

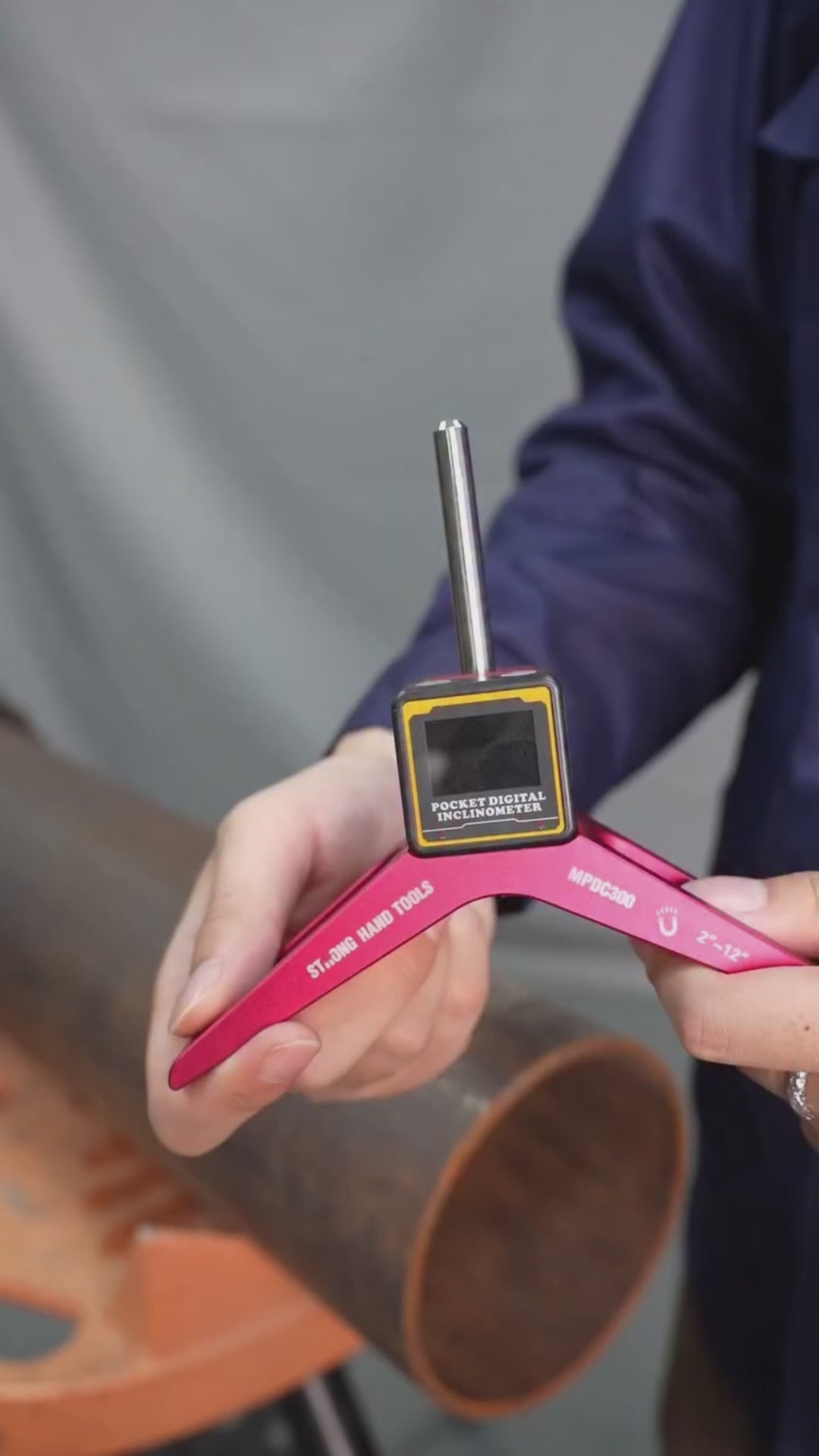

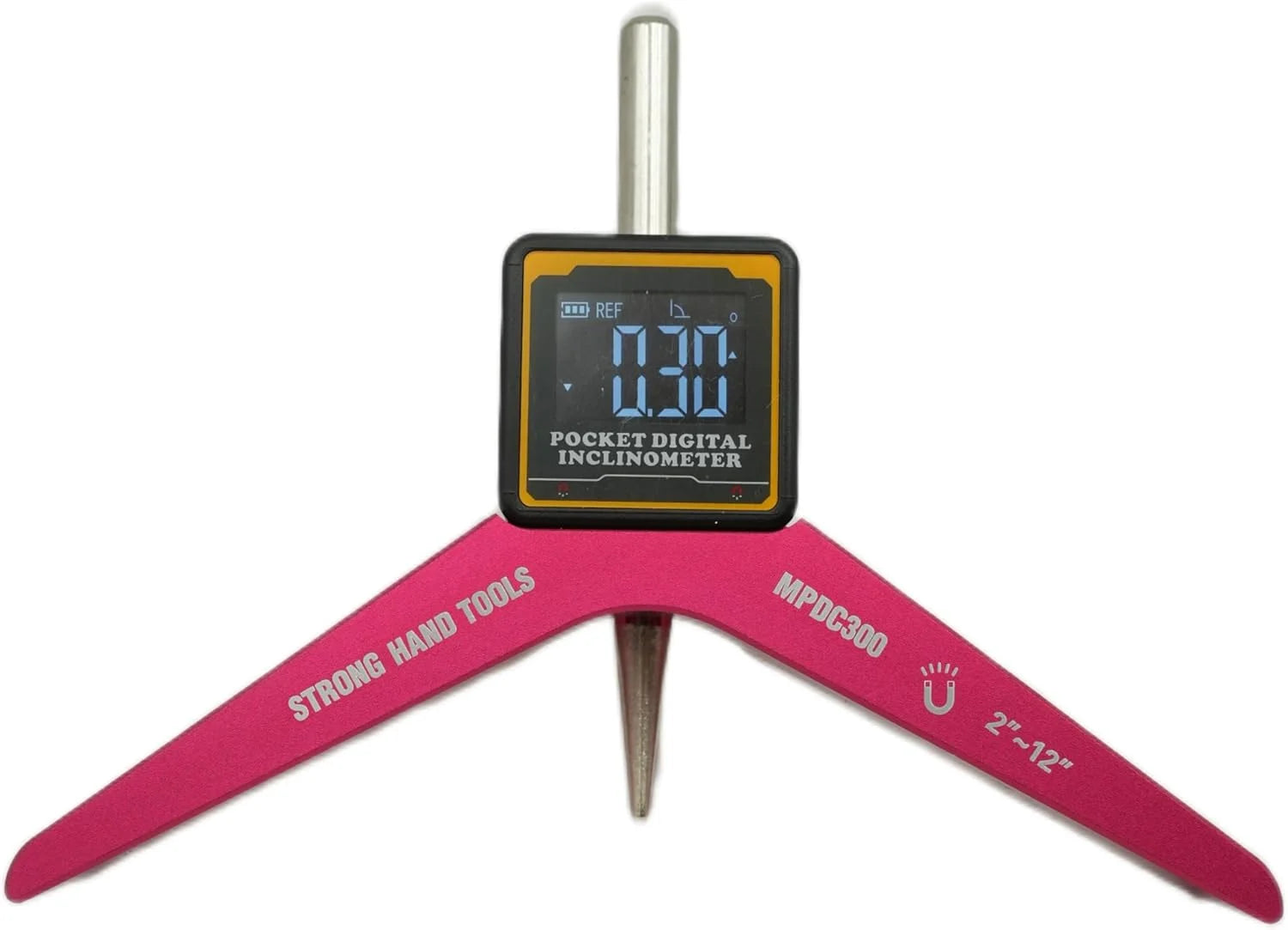

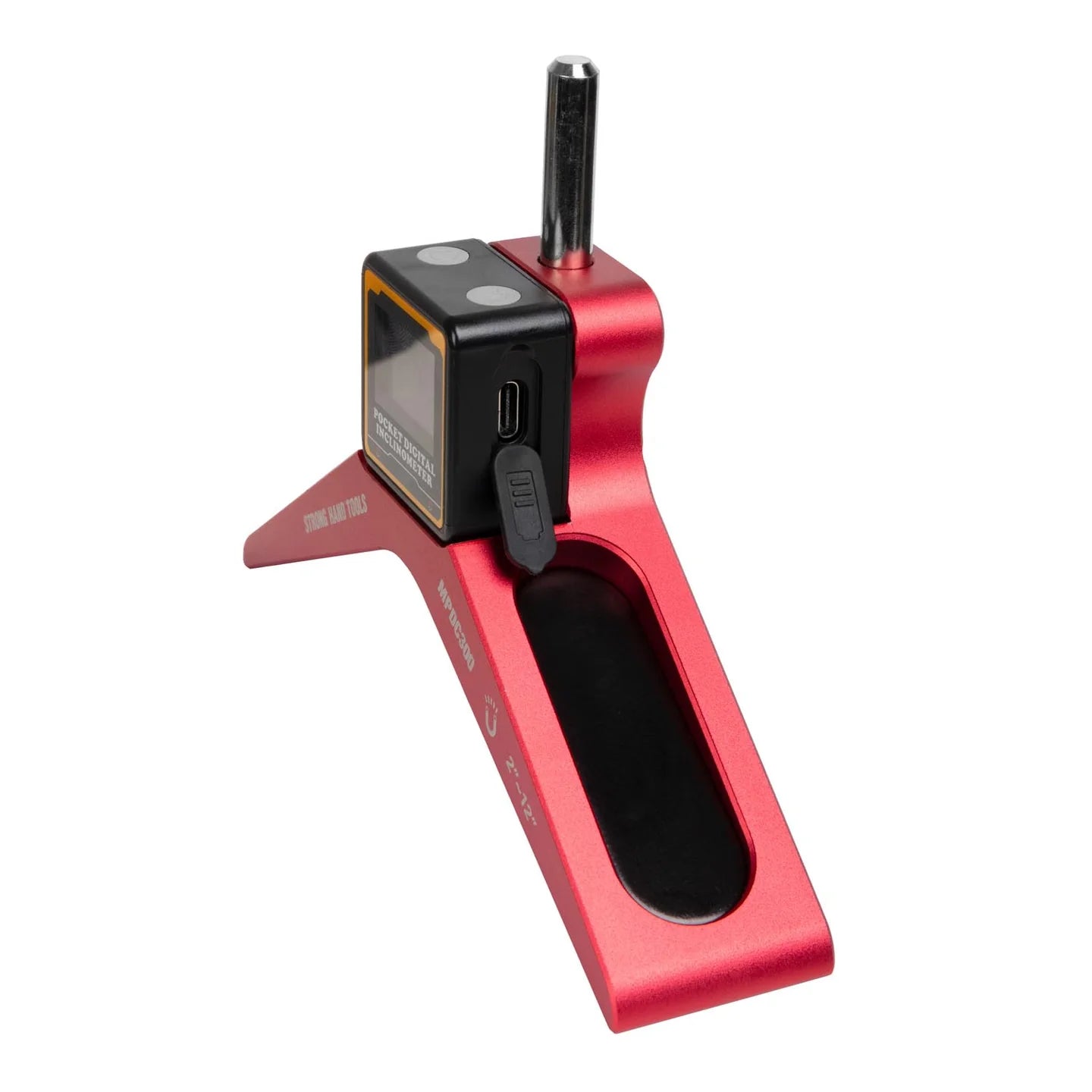

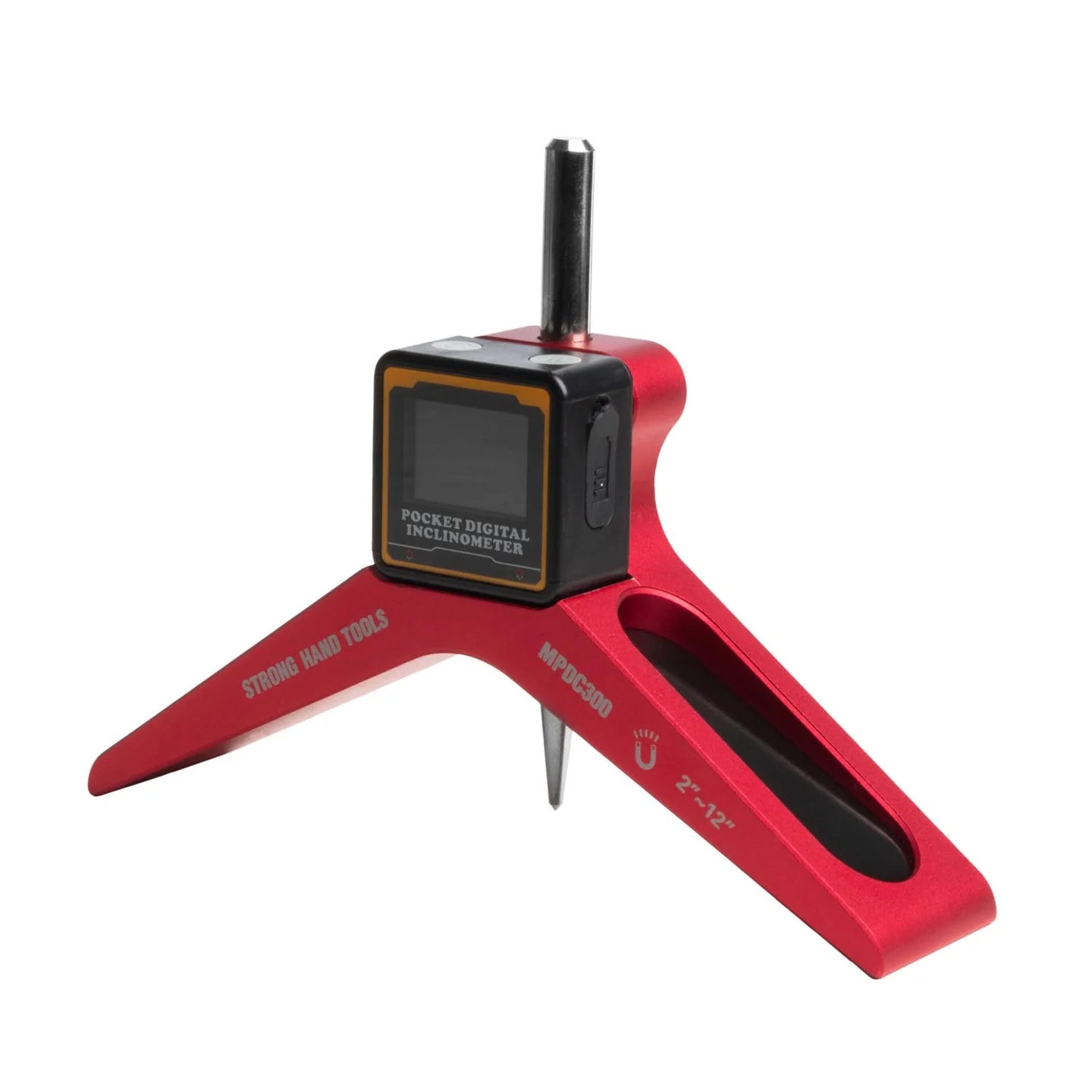

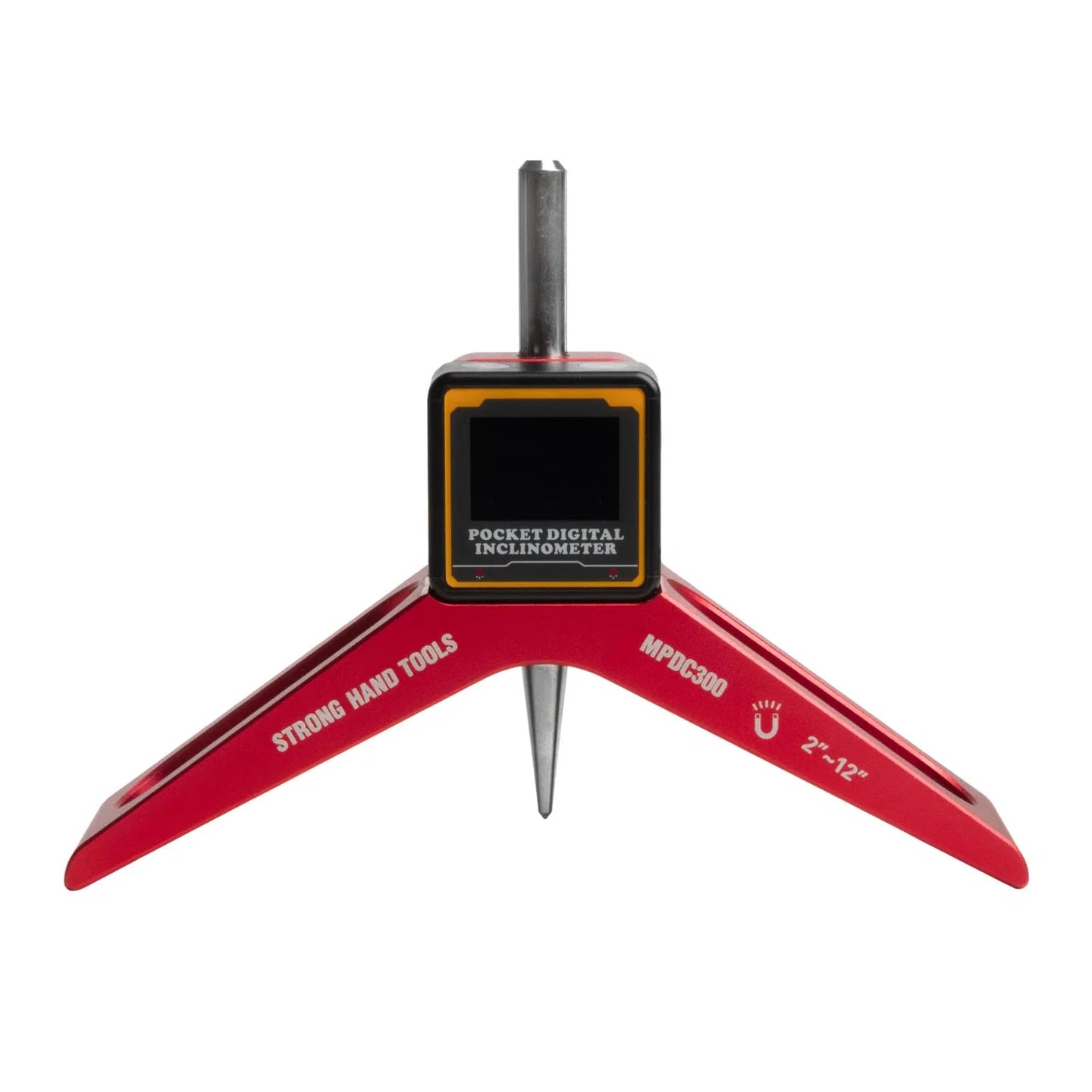

Magnetic Pipe Centering Head, Digital Precision Model

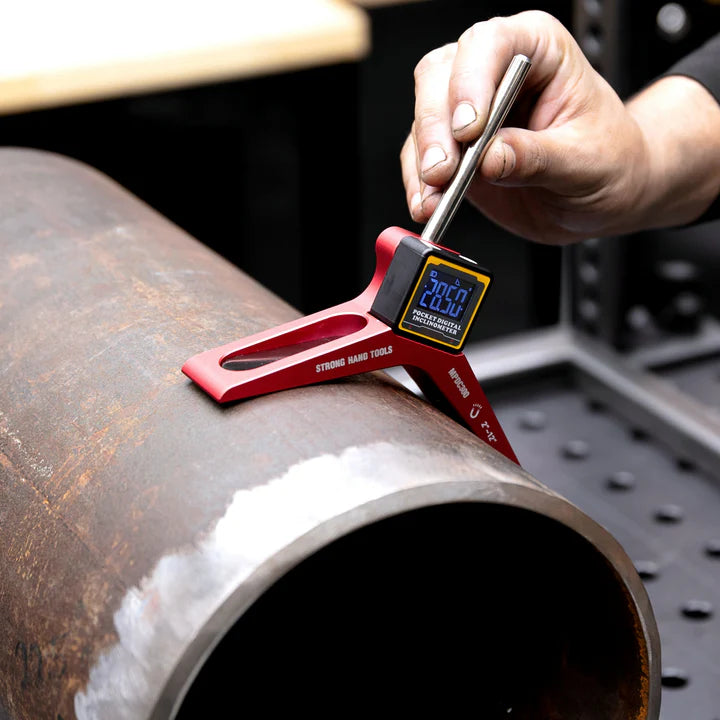

A next-generation pipe layout tool designed for high-accuracy marking and angle measurement on both interior and exterior pipe surfaces. Built for professionals who demand faster setup, tighter tolerances, and repeatable precision.

This digital model builds on the standard centering head by adding real-time angle readout and advanced measurement functions, making it ideal for precision fabrication and critical alignment work.

• Fits pipe diameters from 50 to 304 mm

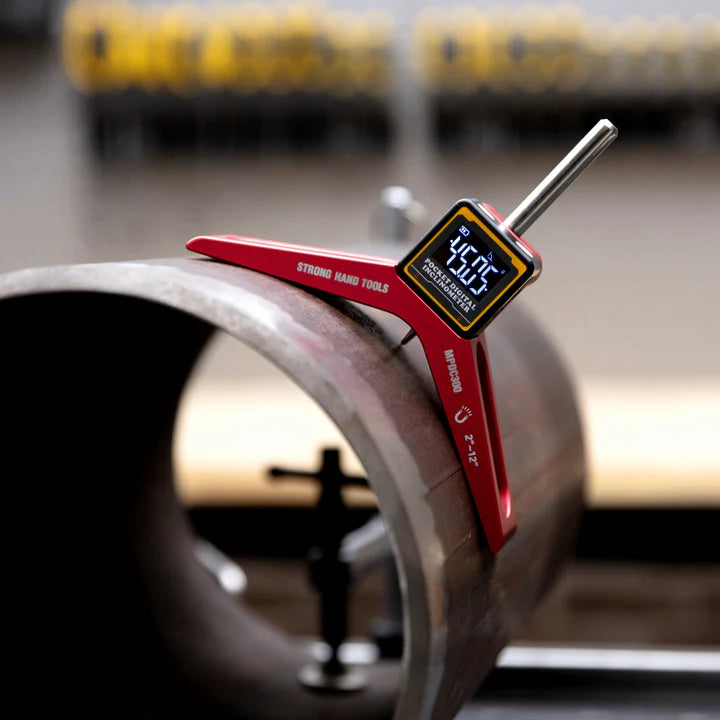

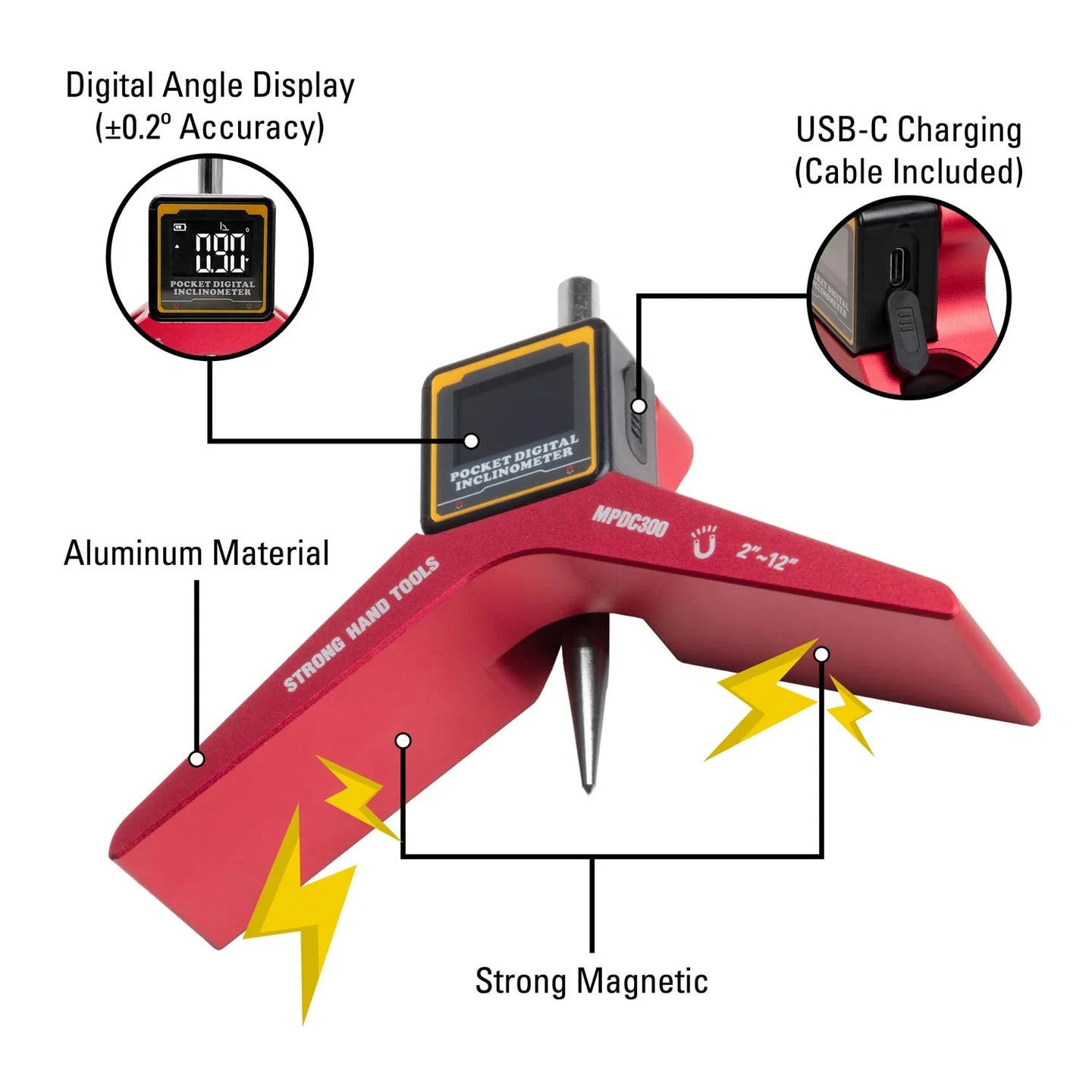

• High-precision digital angle display with ±0.2° accuracy

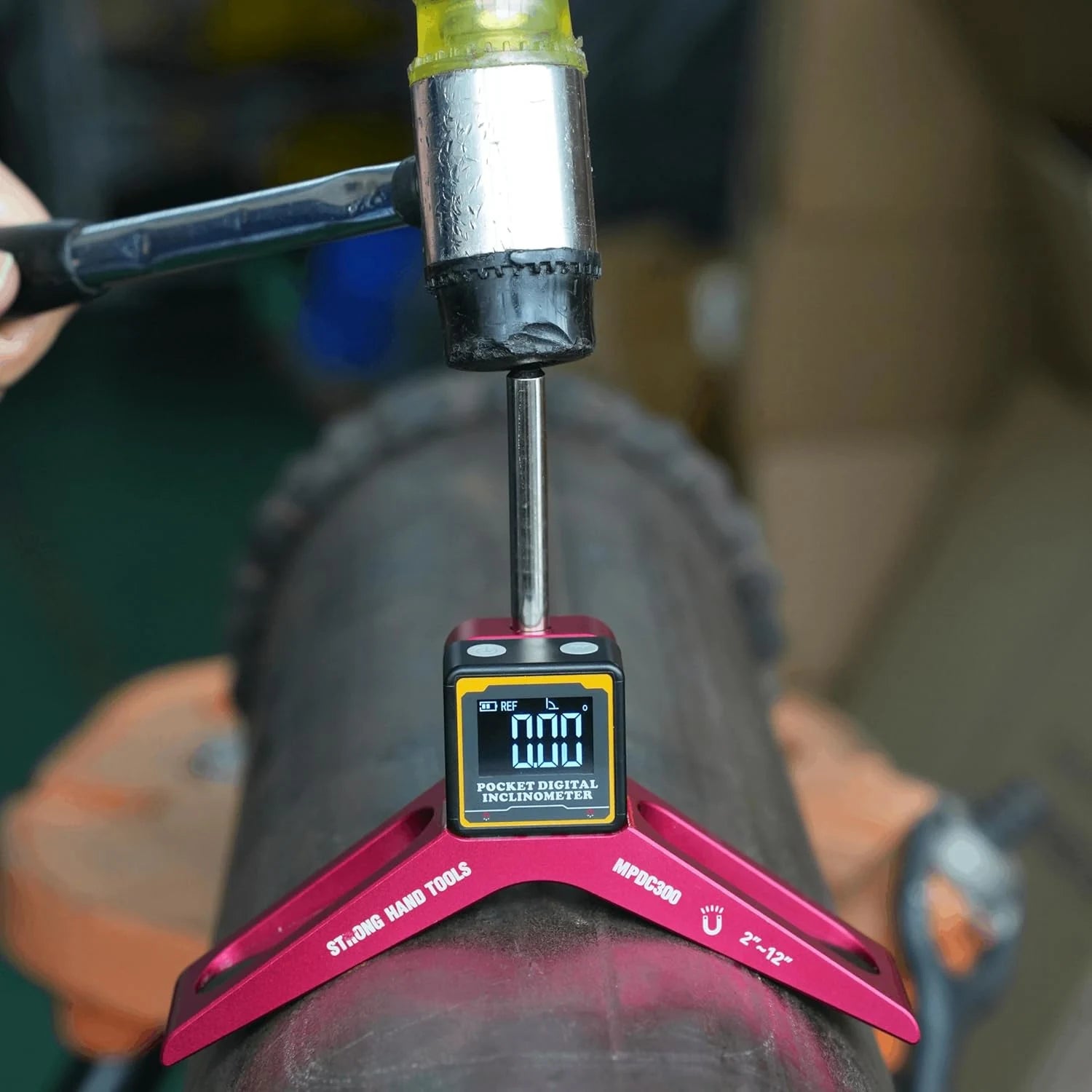

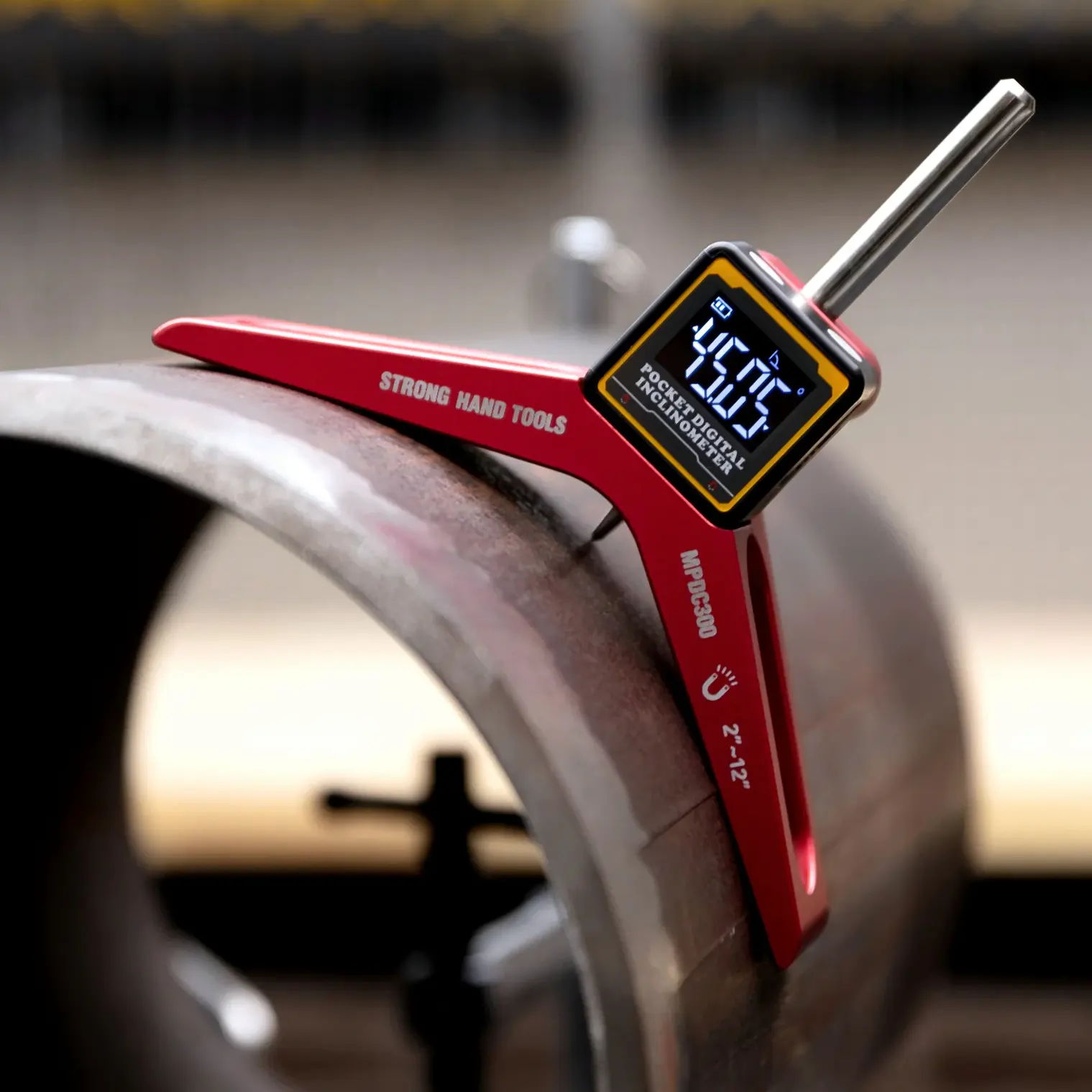

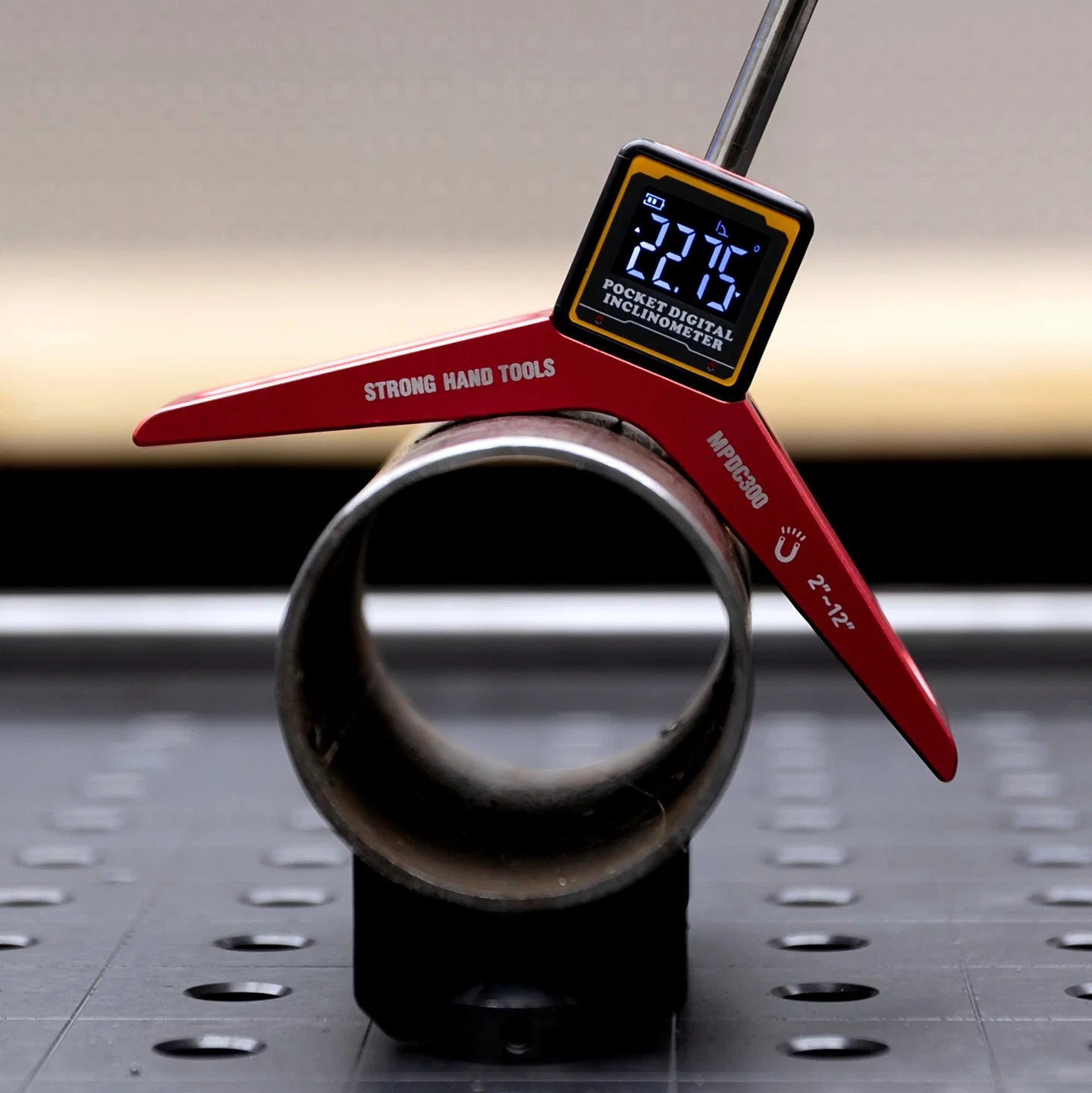

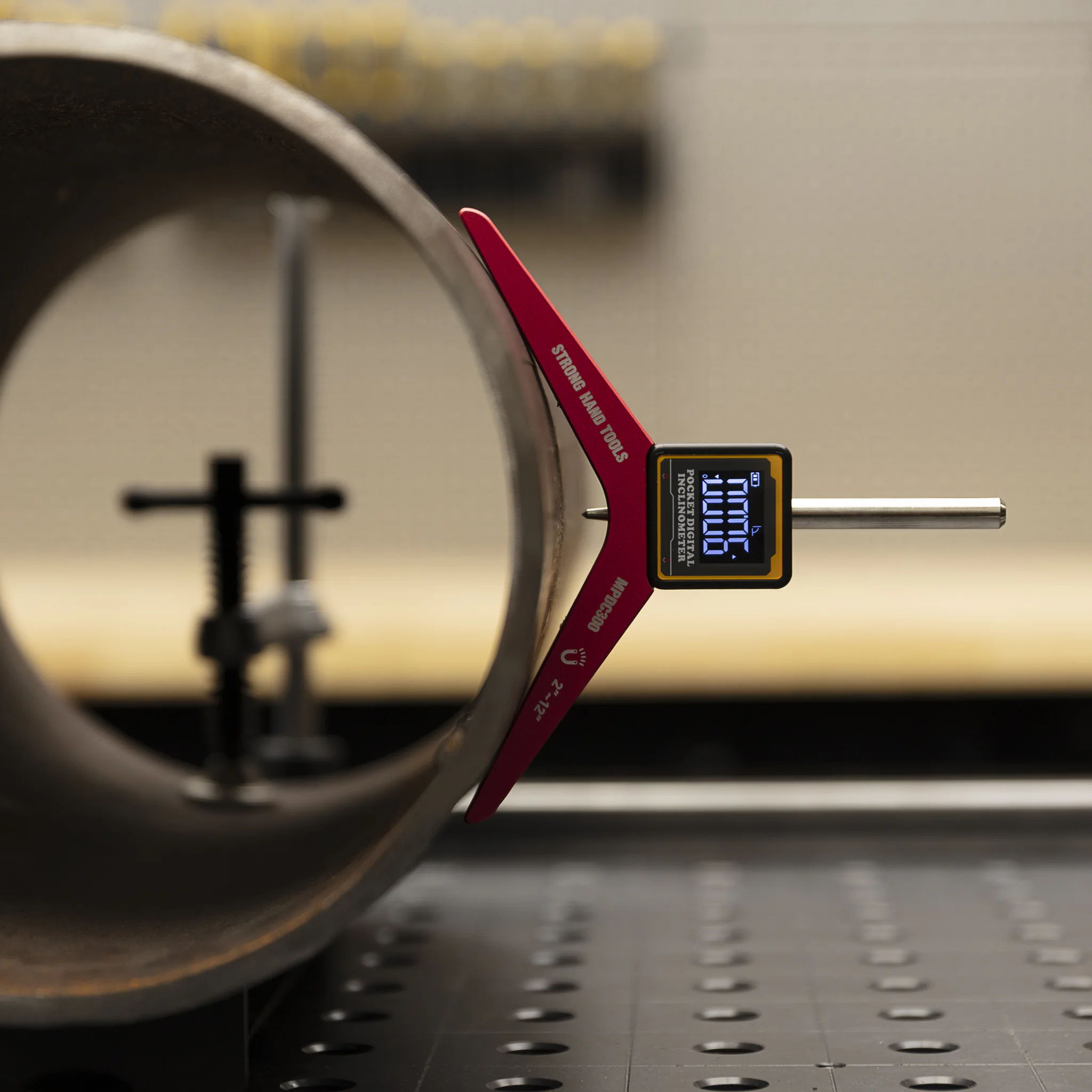

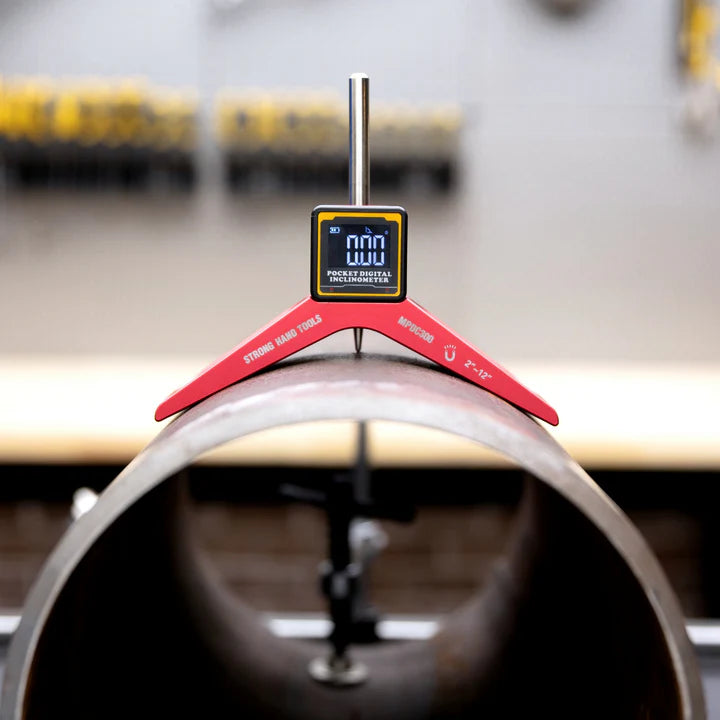

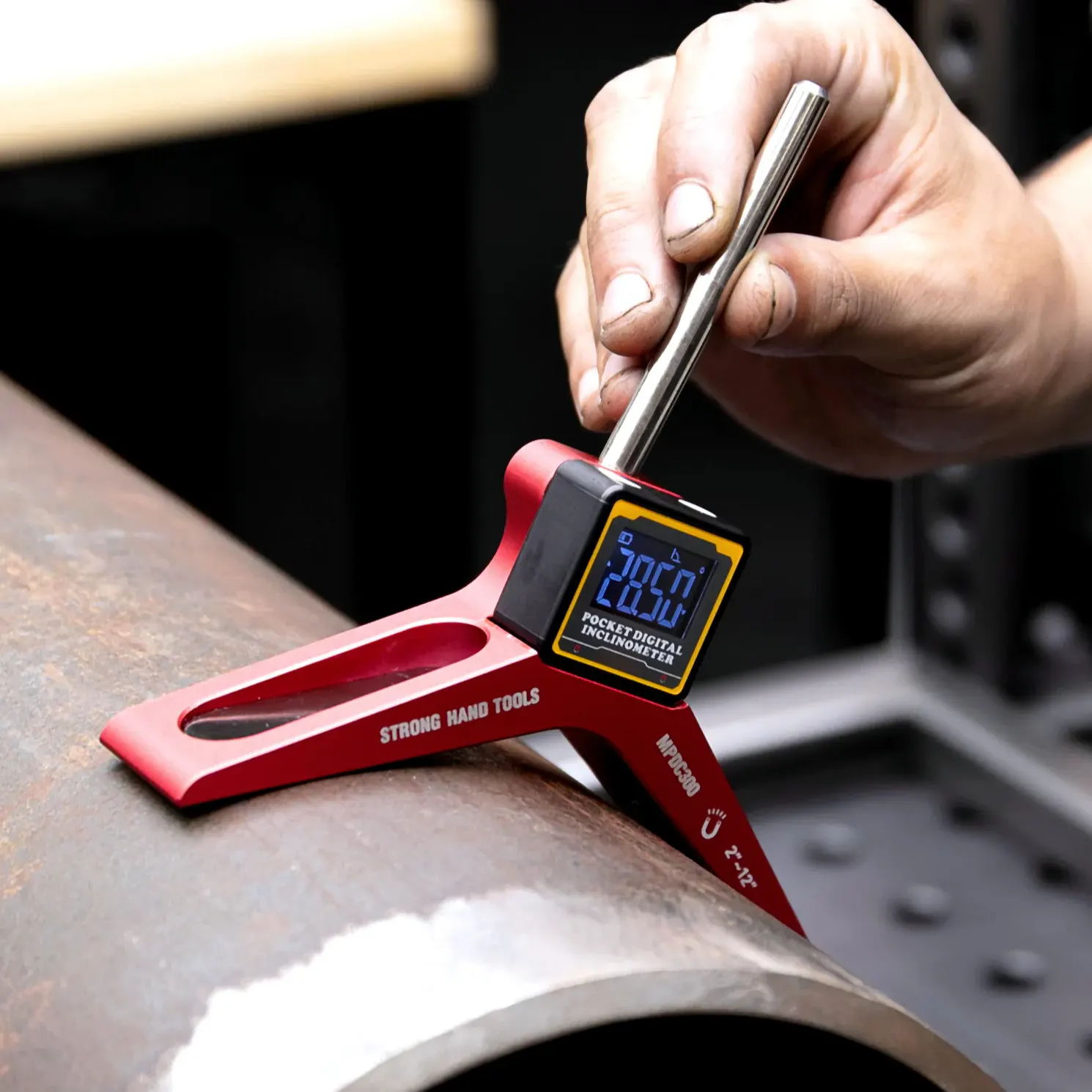

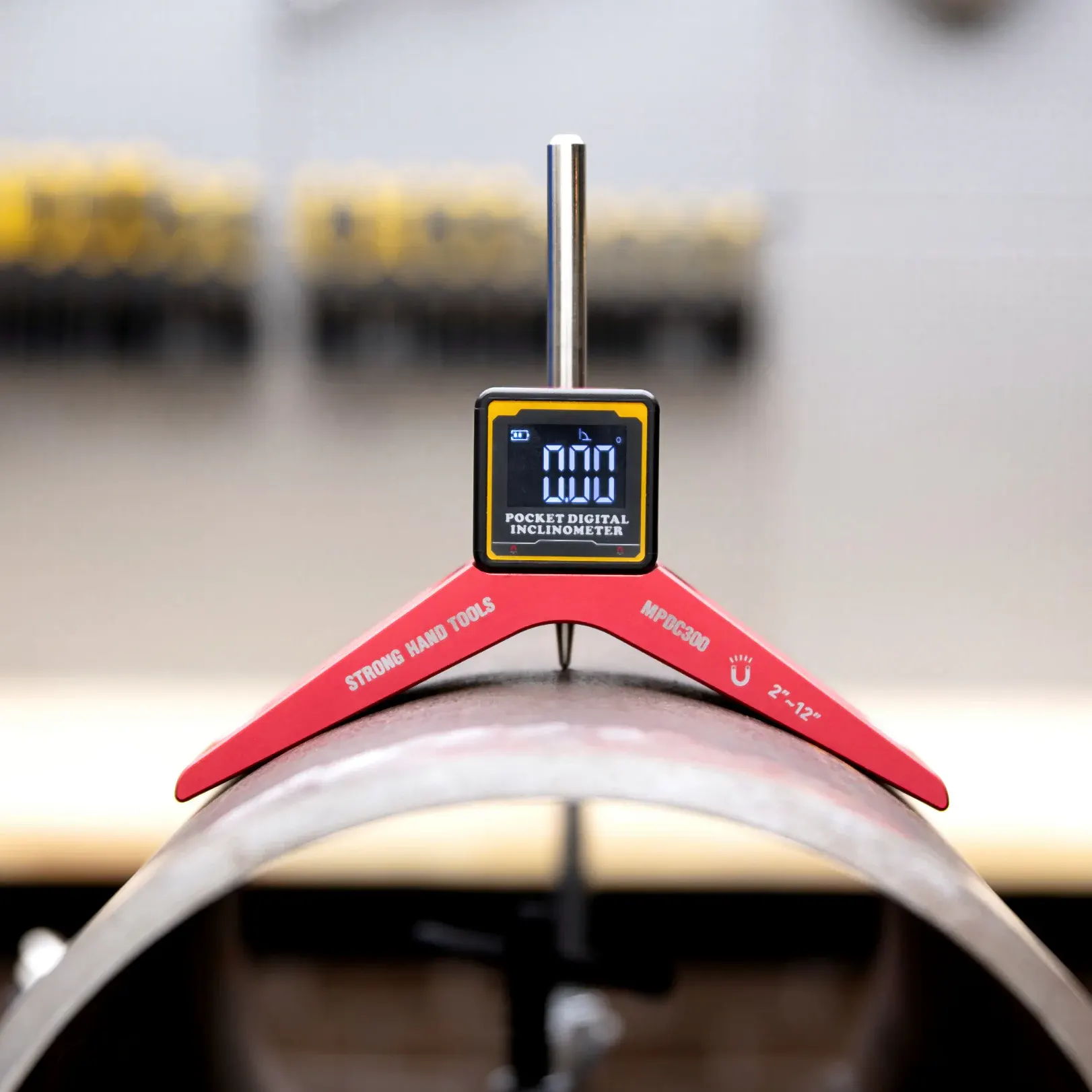

• Marks center points on both inside and outside pipe surfaces

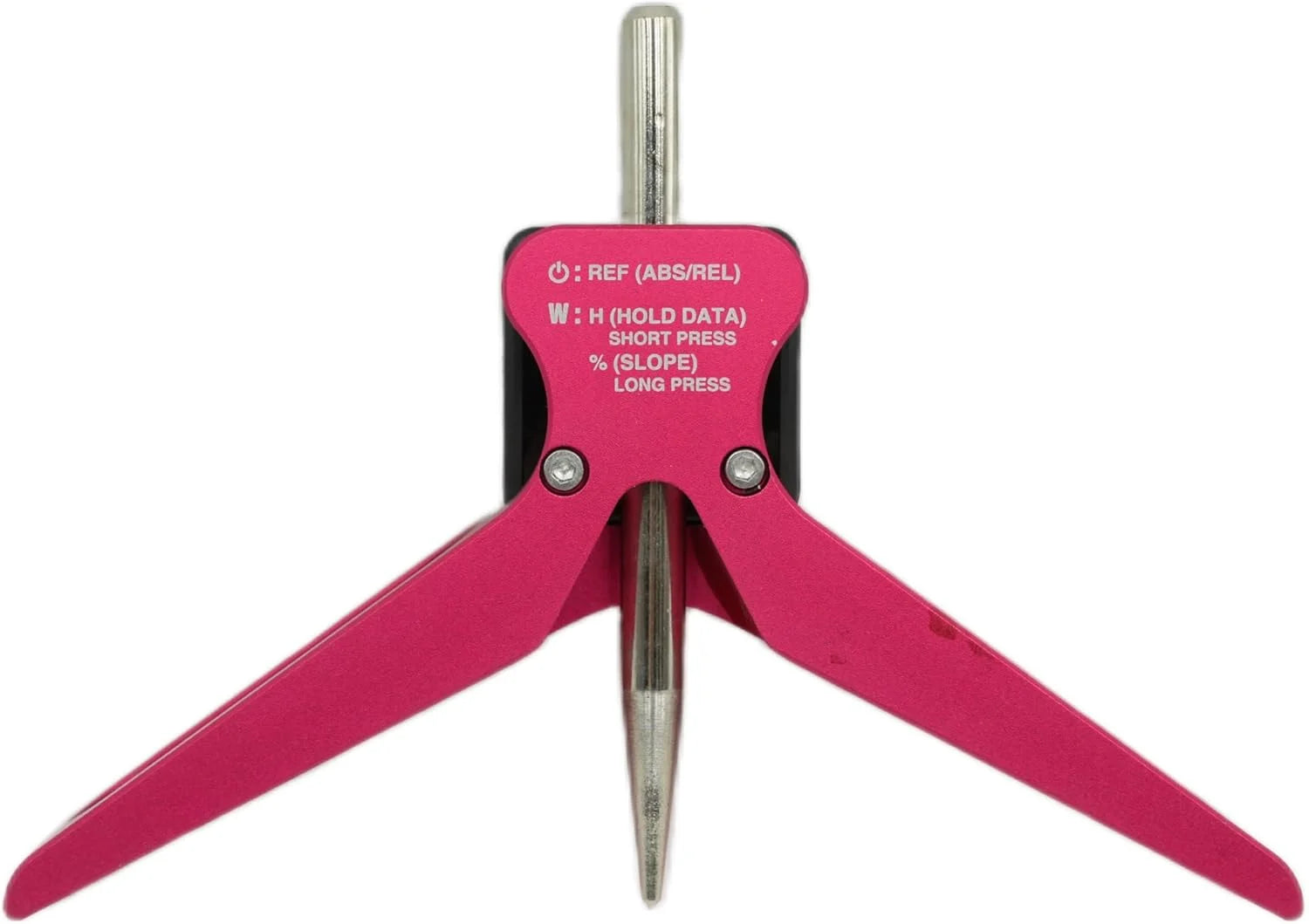

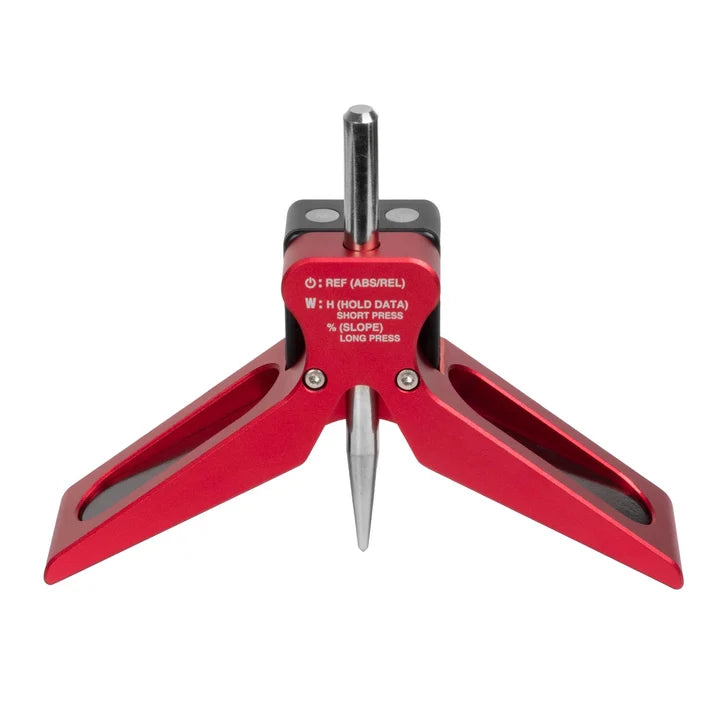

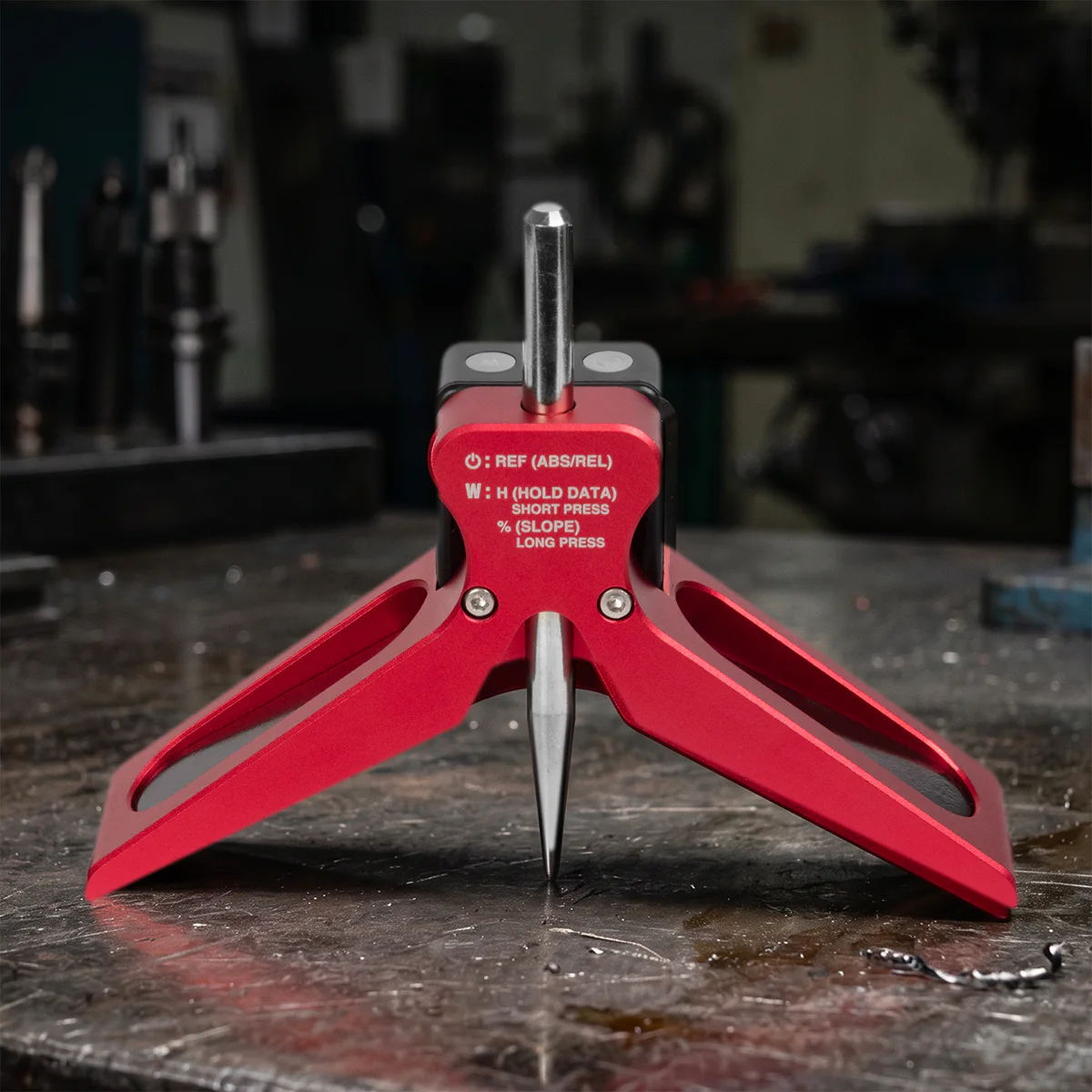

• Switchable Absolute and Relative measurement modes for flexible reference setup
• Automatic angle-to-slope conversion for faster layout calculations
• Data Hold function to freeze readings for easy viewing and marking
• One-touch zeroing function for quick calibration
• Auto power-off after 3 minutes to conserve battery life
• Adjustable dial bubble protractor with 2.5° increments

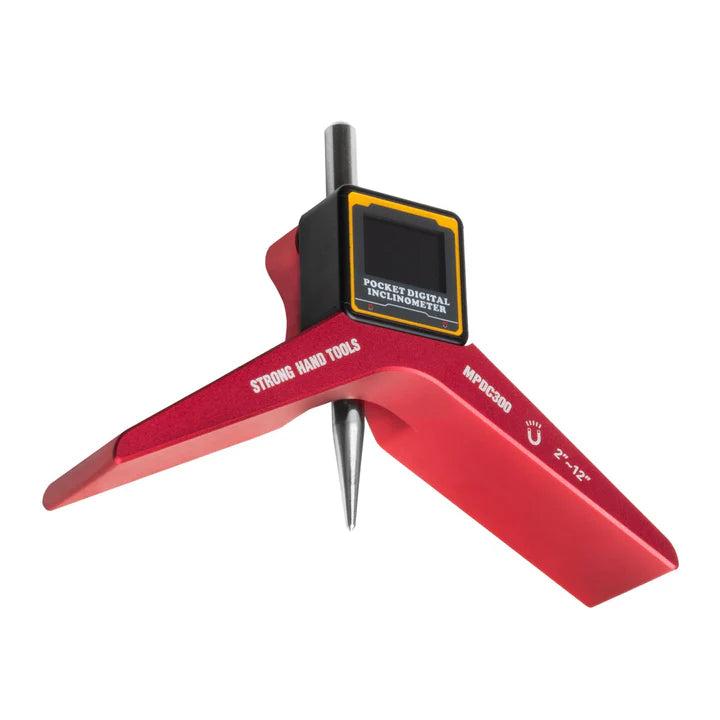

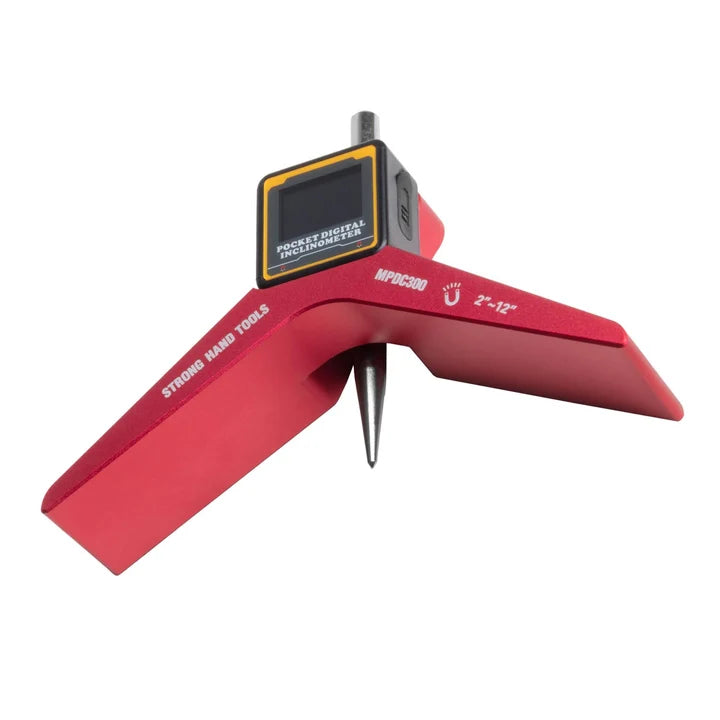

• Precision-machined anodized aluminum construction for durability
• Reduces manual measurement errors for faster, cleaner layout work
• Ideal for locating TDC (Top Dead Center) and BDC (Bottom Dead Center)

Included:

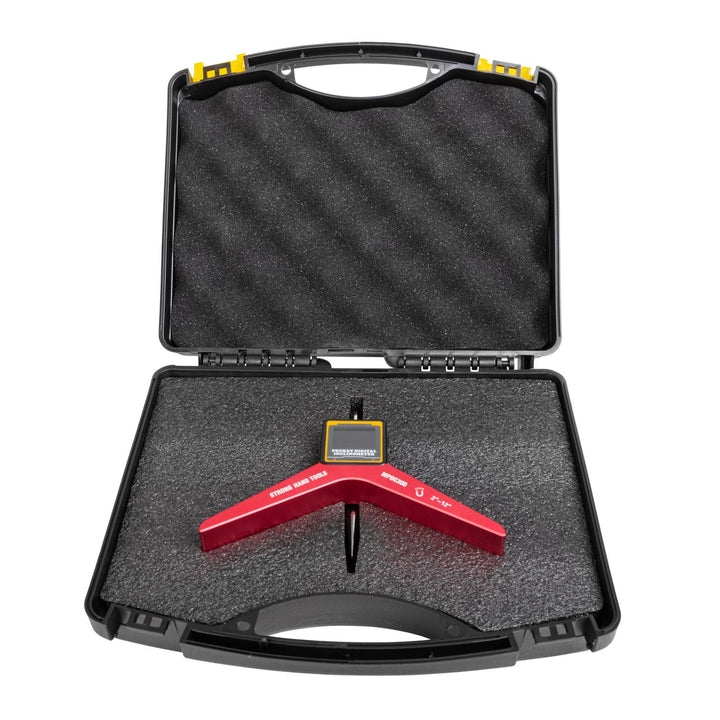

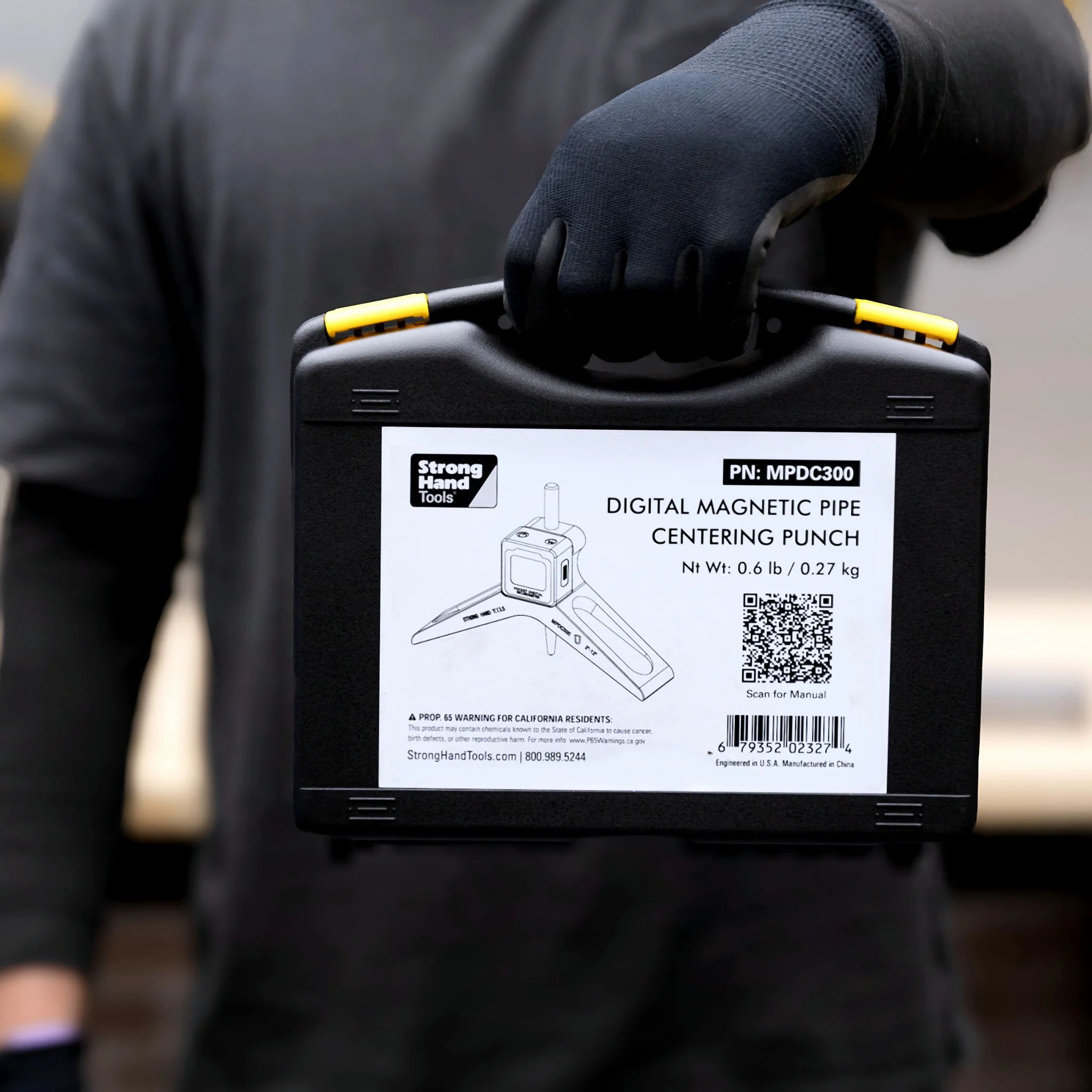

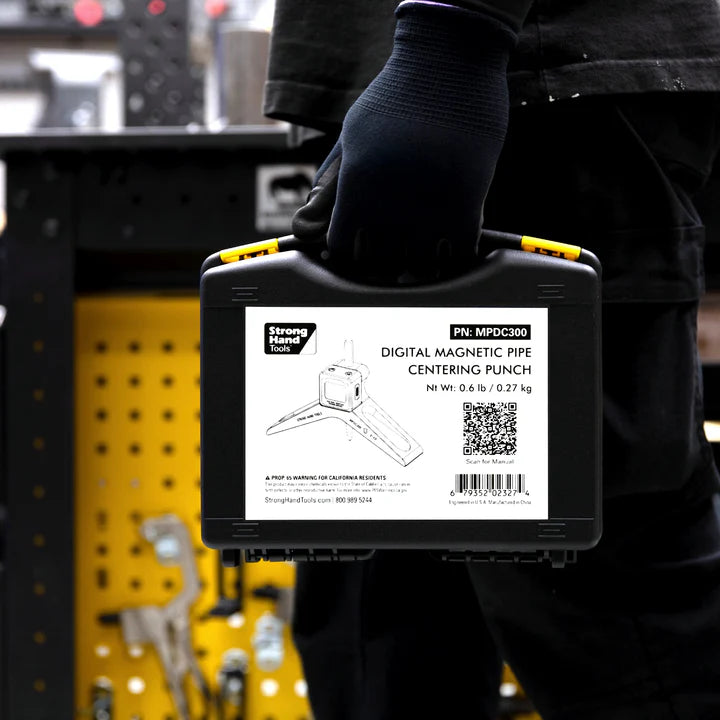

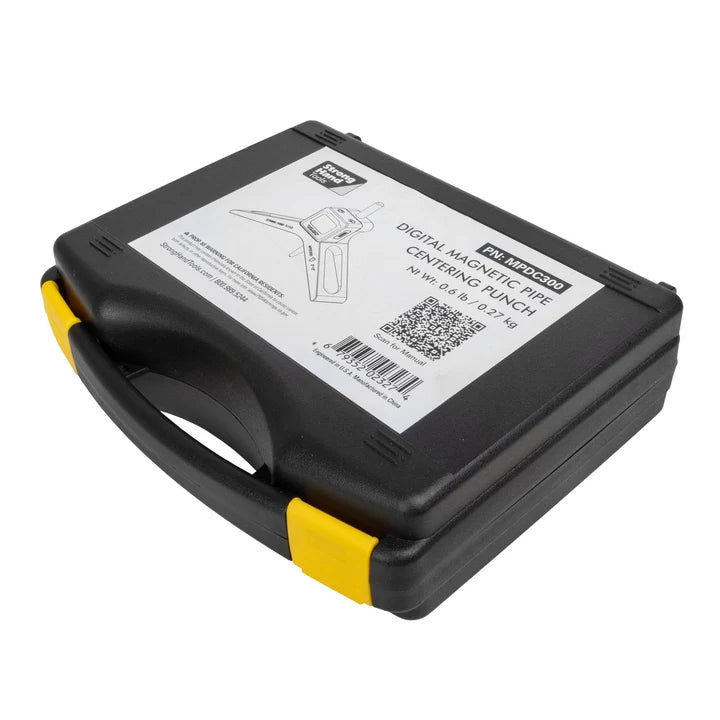

• Heavy-duty protective hard case for storage and transport

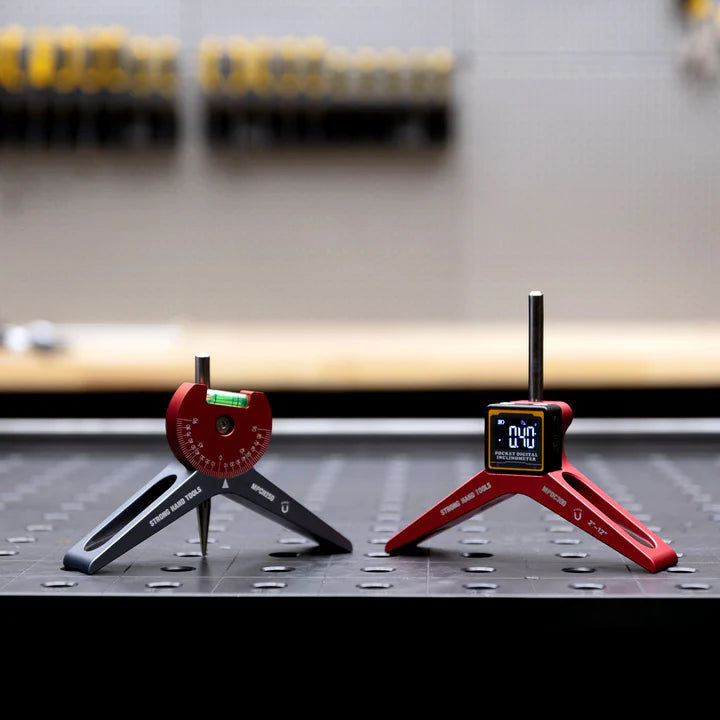

Standard vs. Digital Model:

• Standard (MPCH250): Manual layout with bubble protractor
• Digital (this model): Real-time angle readout, higher accuracy, and faster calibration
