Actual Table Surface Dimension: 2550x1250 mm
Tabletop Side Height: 160 mm
* All load capacities are calculated based on static load.
* Optional Leg Brace Assembly TMLB96 is suggested.
U.S. PAT. 8065967
Patented
MAX Welding Table, 2550x1250 mm (16 mm System)
MAX Welding Table, 2550x1250 mm (16 mm System)
Regular price
€6,870.00
Sale price
€6,870.00
Regular price
Shipping calculated at checkout.
Low stock
16 mm
Hole Diameter
50 mm
Hole Spacing
Nitrided
Material Finish
Reversible
Plates
-
Estimated delivery: Mar 21 - Mar 25
Couldn't load pickup availability
Manual Download
Manual Download
ALL MAX TABLES ARE PATENTED: U.S. PAT.8065967

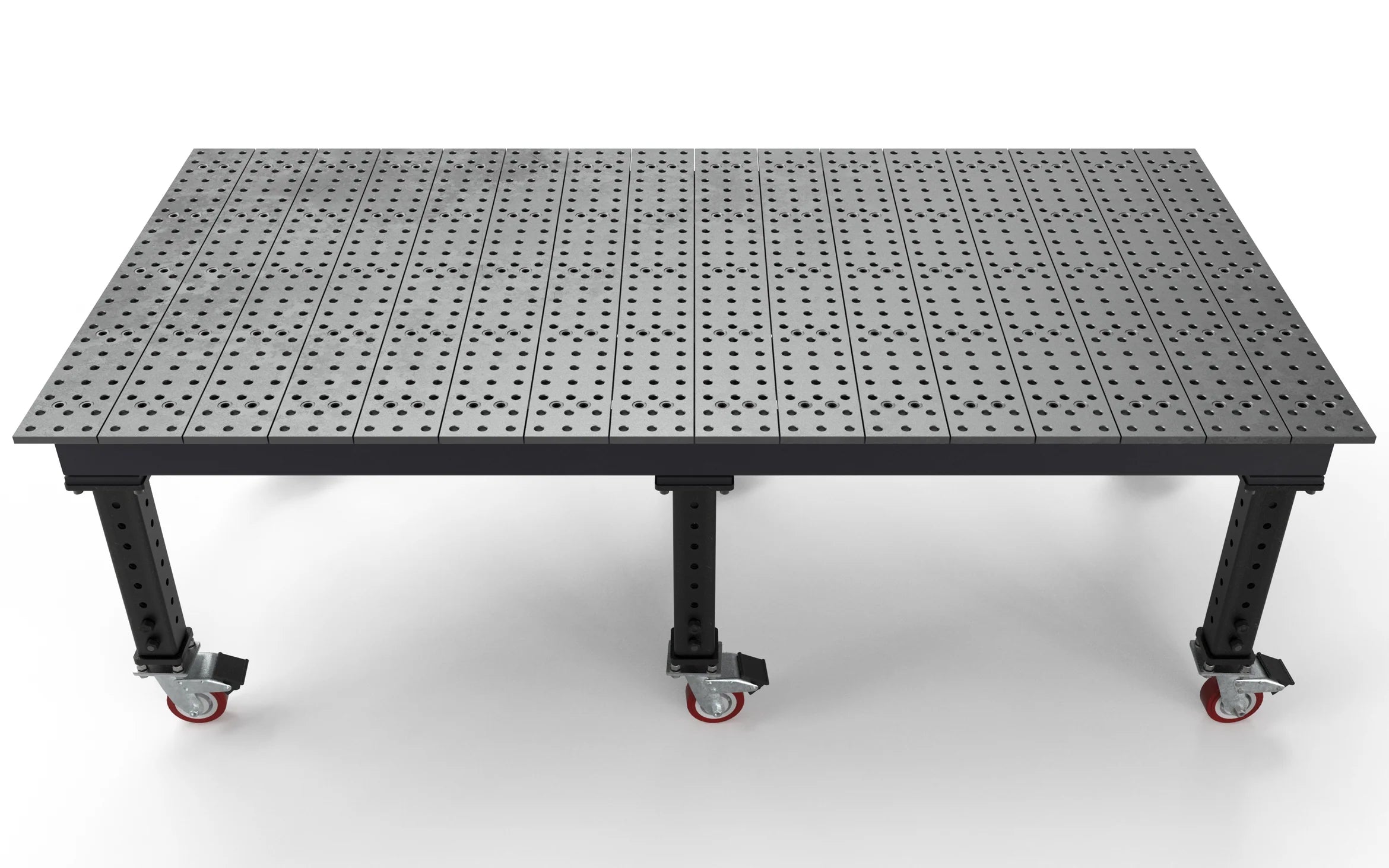

MAX 2550x1250 mm
Our single-sided heavy-duty tables feature boreholes on the top surface and patented self-locating and reversible table top plates. Maximum Table Surface, Maximum Capacity. Utilize the additional holes (33% more than slotted tables) for clamping at multiple points.
Available in standard and nitrided tabletop finishes.
Tabletop Information
| Hole Diameter: |
| 16 mm |
| Grid Pattern: |
| 50x50 mm |
| Tabletop Size: |
| 2550x1250 mm |
| Tabletop Thickness: |
| 16 mm |
| Surface Hardness: |
| HV 550 |
| Coefficient of Friction: |
| 0.37 |
| Optional Finish: |
| Nitrided |
| Nitriding Case Depth: |
| 0.01 - 0.02 mm |
| Table Flatness: |
| 0.3 mm / 1,000 mm |
| Tabletop Side Height: |
| 160 mm |
| Capacity: |
| 680 kg per Leg |
| Gross Weight: |
| 600 kg |
Features
Reversible Self-Locating Table Plates
Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!
CNC Hole Pattern
Accurately position parts using CNC precision bored 16 mm holes in 50x50 mm spacing pattern.
Locking Casters
Steel legs are equipped with locking casters and leveling feet for mobile or stationary use.
Compatible with 16 mm Fixtures
Compatible with all 16 mm System components and fixtures.
Tabletop Side Height
160 mm for both MAX and MAX Slotted tables.
MAX Table Accuracy
Table Flatness: 0.3 mm per 1,000 mm
Hole Spacing: 50 mm
Hole Diameter: 16 mm
Plate Thickness: 16 mm
Standard (plain) / Nitrided Finish
Choose from standard finish (medium carbon steel) or Nitrided (heat-treated) finish.
Other Sizes
Reversible Plates

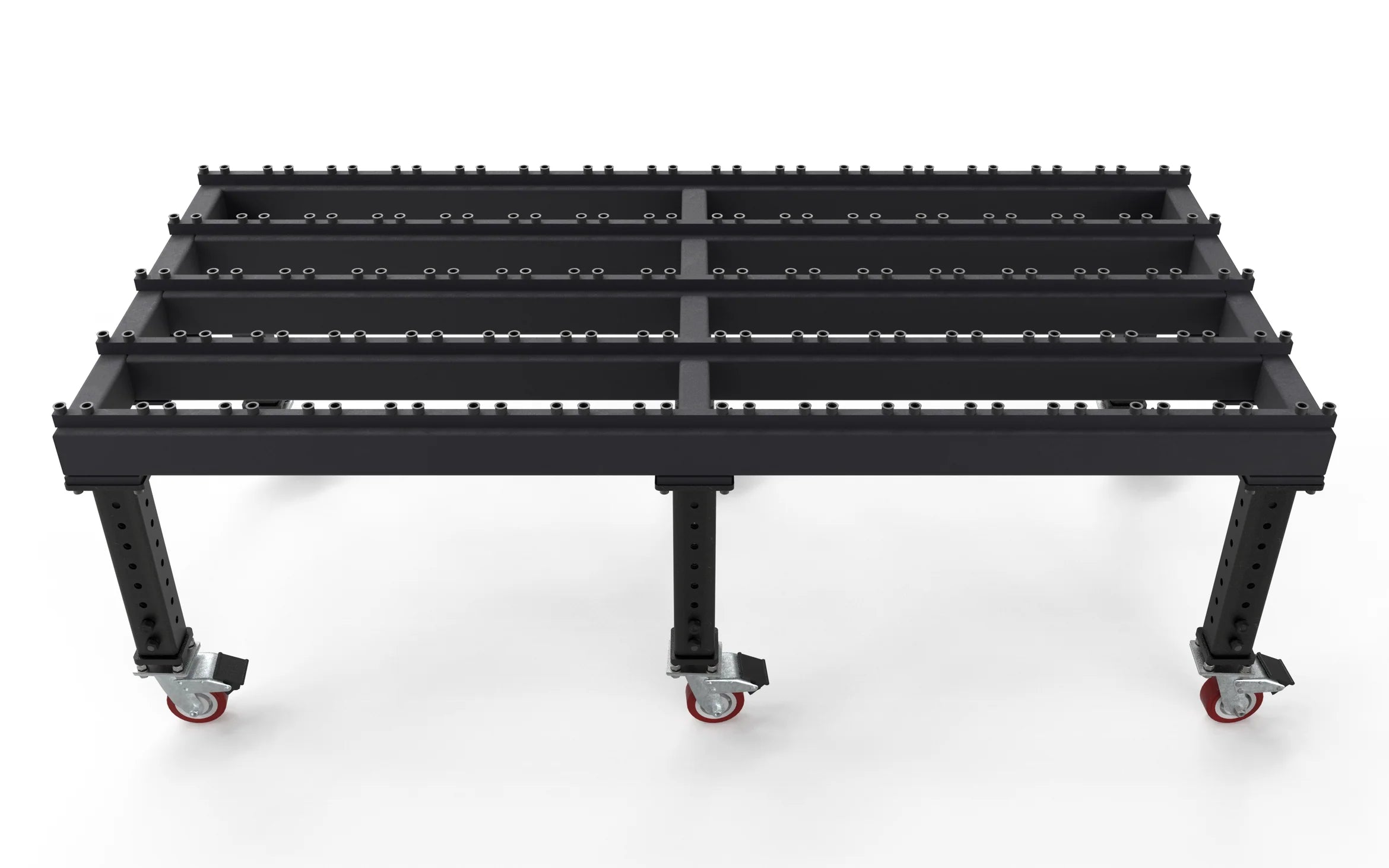

Frame
