Positioner Capacity: 1,100 kg

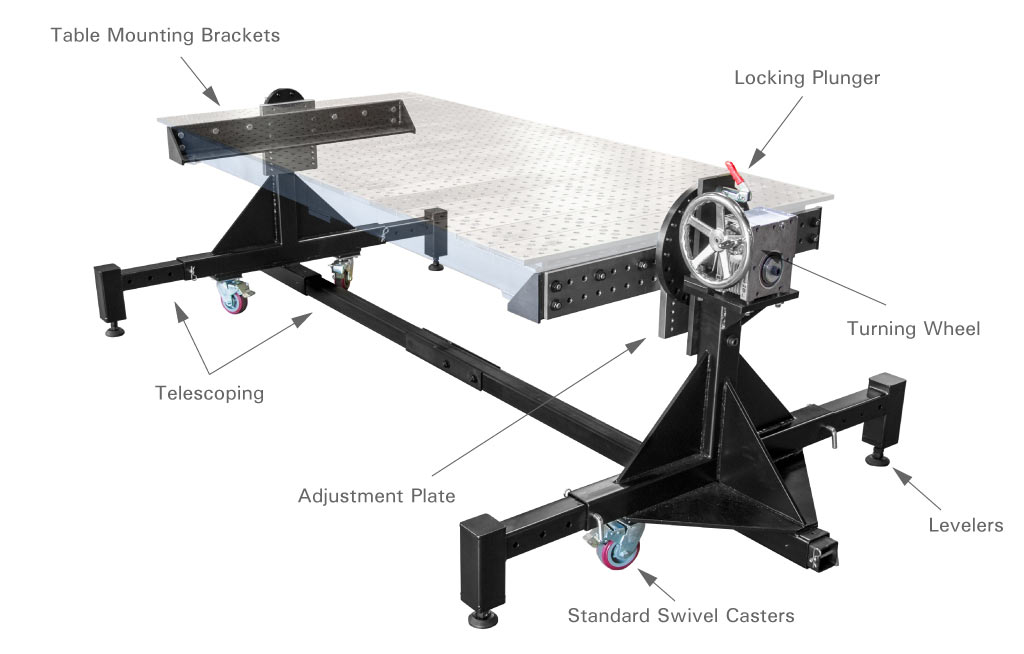

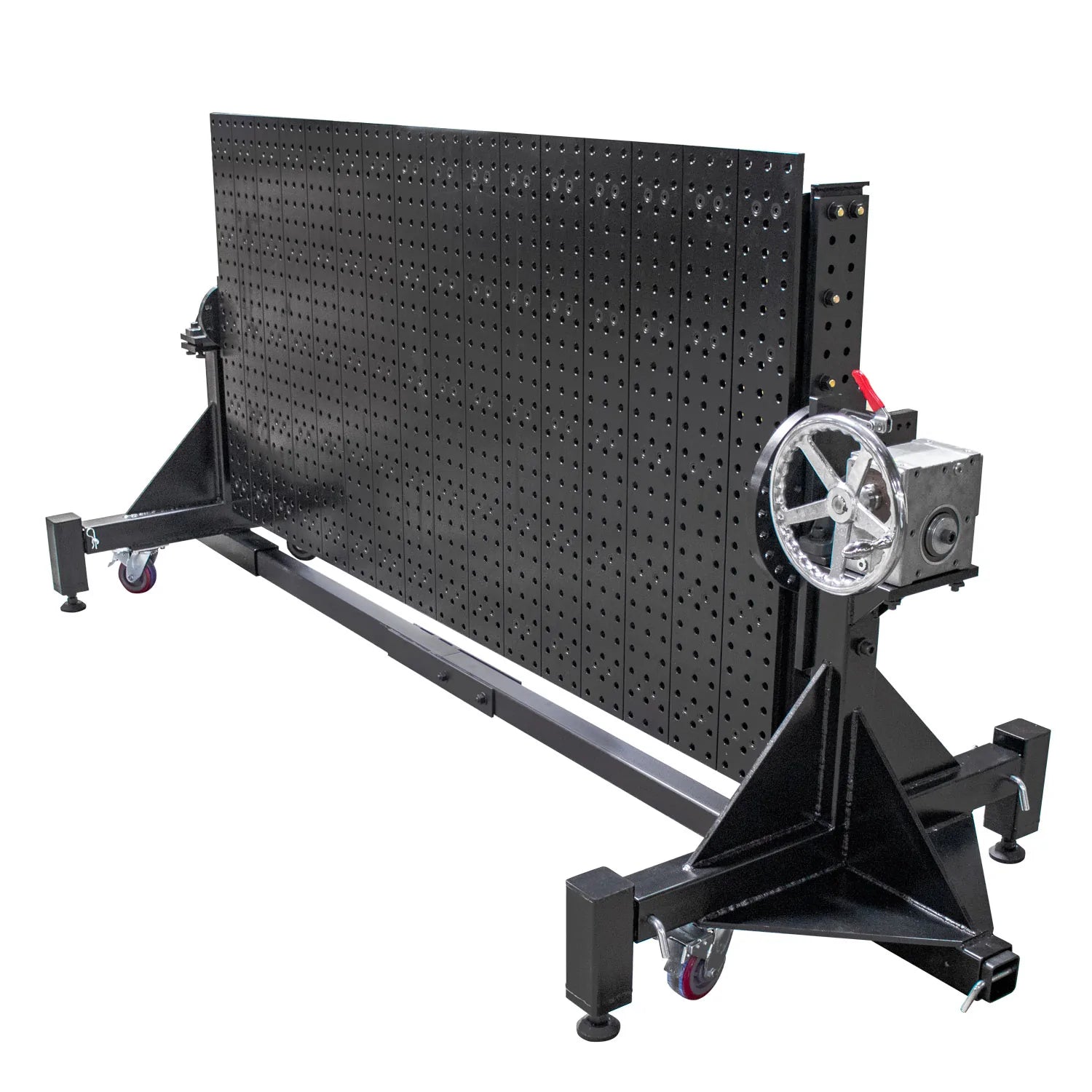

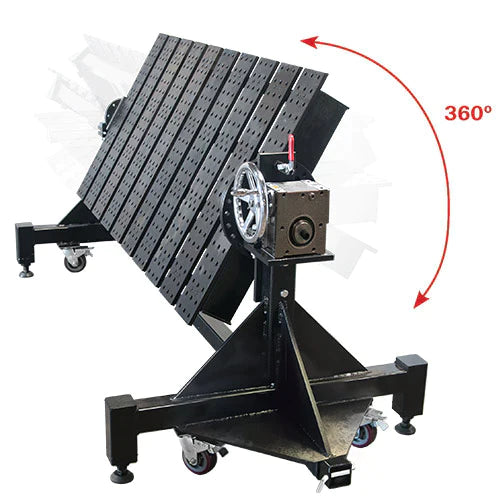

Mount your MAX or Alpha Welding Tabletop to the BuildPro Rotary Positioner for plane rotation of your work surface. The low backlash gear drive allows for smooth operation, stability, and controlled turning and positioning.

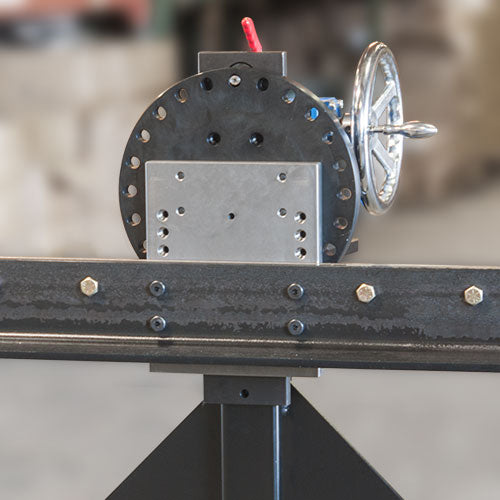

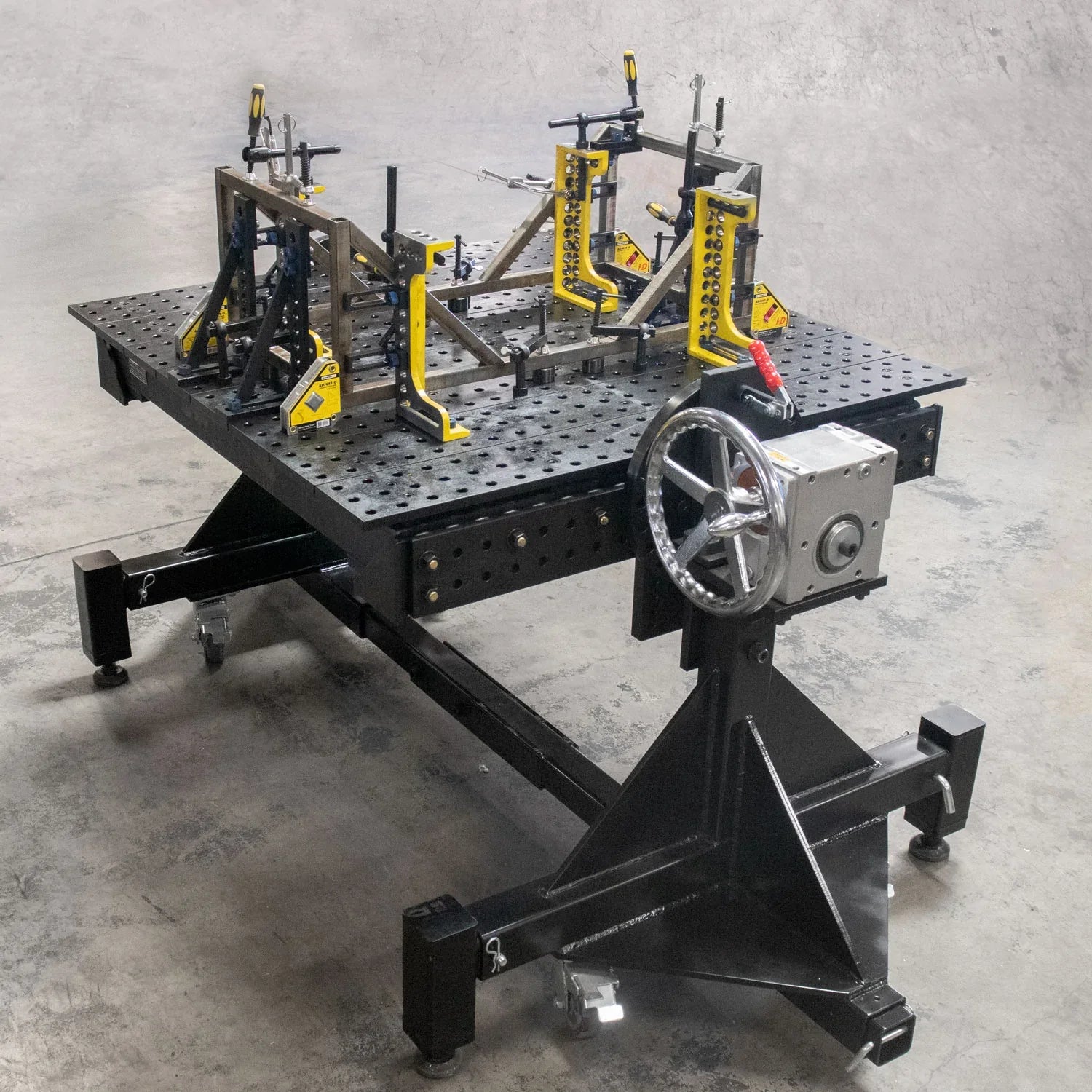

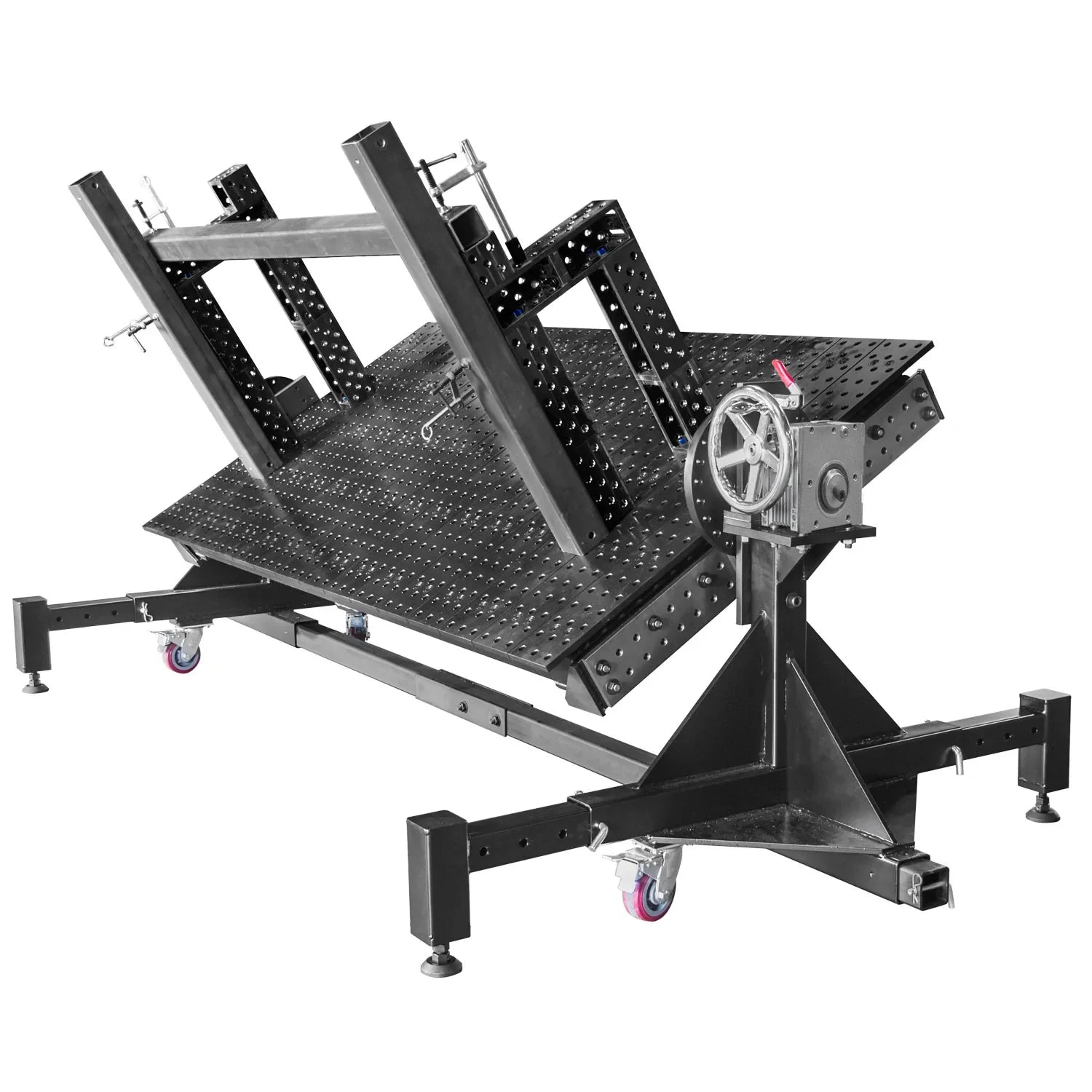

The worm gears combined with center of gravity positioning minimizes the effort required for rotation while preventing free rotation of the table from gravity. A faceplate with 15° increments provides positive manual locking. The BuildPro Rotary Positioner allows you to rotate your weld fixture to the best ergonomic position for worker safety, comfort, and reduced operator fatigue.

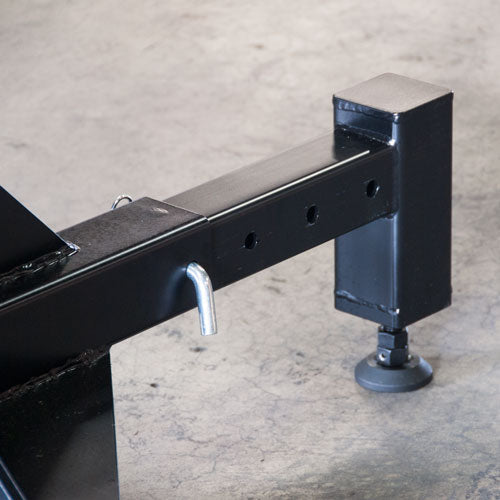

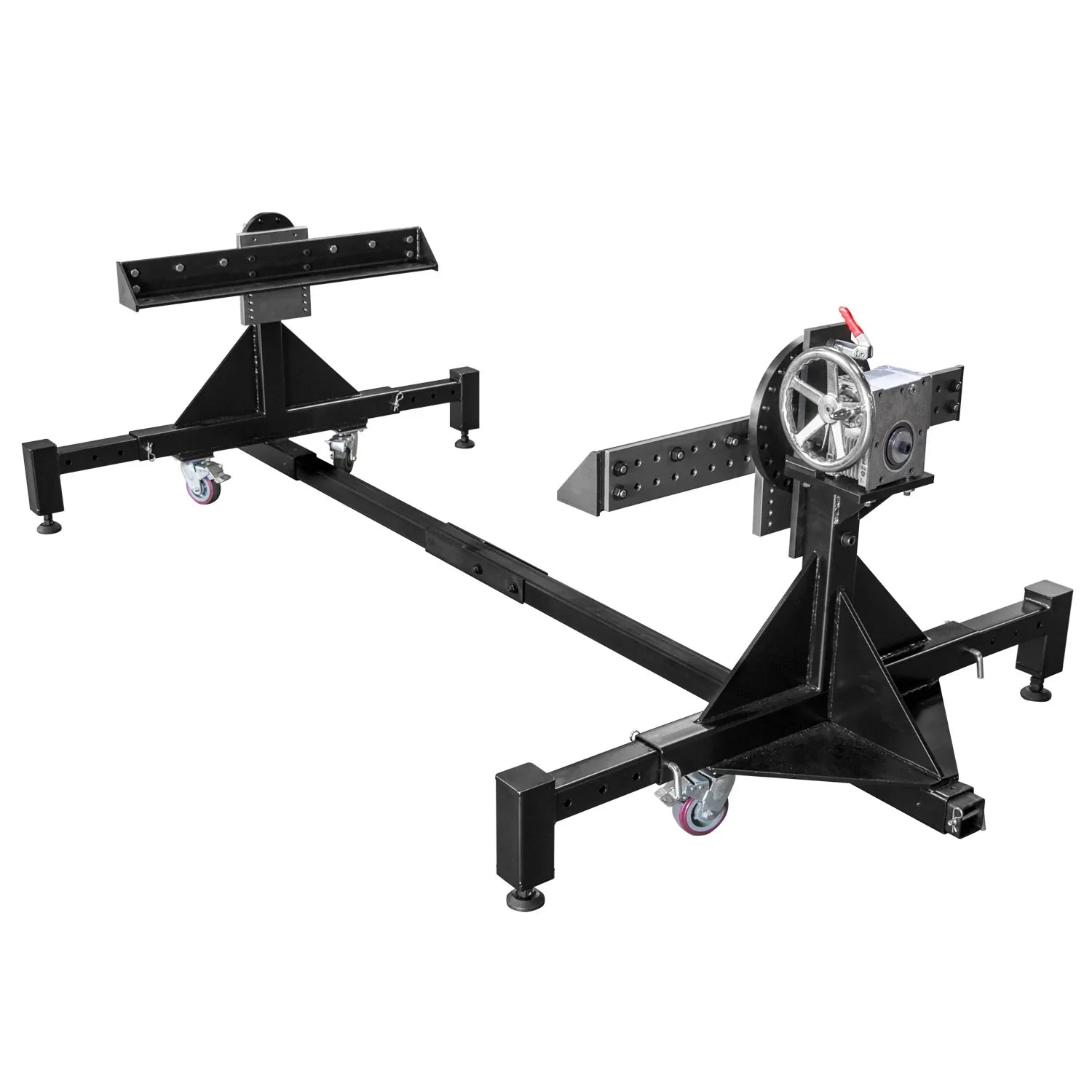

The BuildPro Rotary Positioner is universal, with an adjustable base to accommodate most MAX or Alpha 16 mm Welding Tabletops. The Positioner features four swiveling, locking casters, and four leveling feet for setup at dedicated or alternating locations in the shop.
MADE IN USA
U.S. PAT.10328538
* Tabletop sold separately.
* Positioners are designed for MAX and Slotted tables, for Alpha 28 and 16 mm applications, please contact our sales team.
