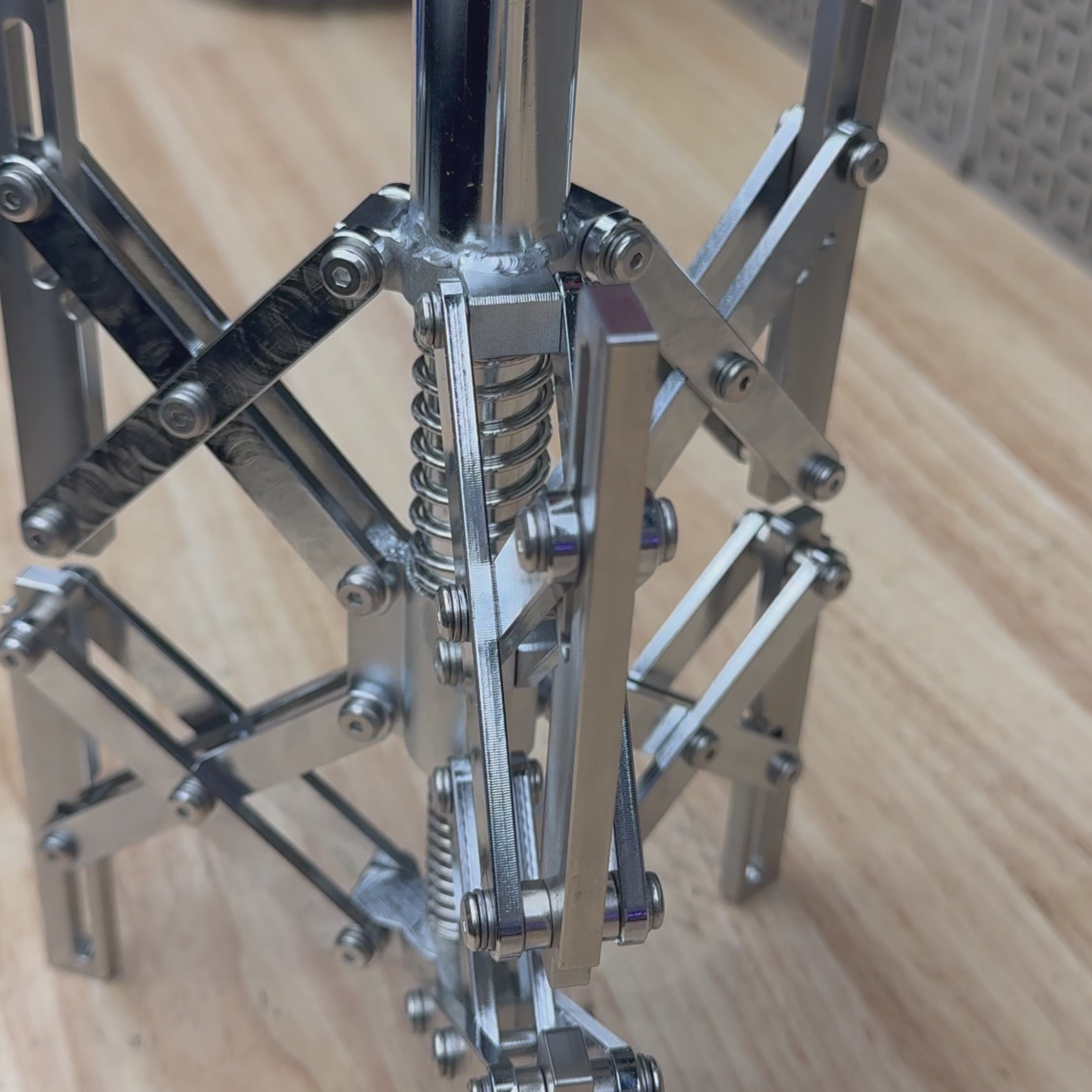

"The Spider" Internal Pipe Fit-Up Clamps
"The Spider" Internal Pipe Fit-Up Clamps
Regular price
€356.00
Sale price
€356.00
Regular price
Shipping calculated at checkout.
Low stock
-
Estimated delivery: Jul 16 - Jul 20
Couldn't load pickup availability
Manual Download
Manual Download
Spec Drawing
Spec Drawing
CSA480 - PDF

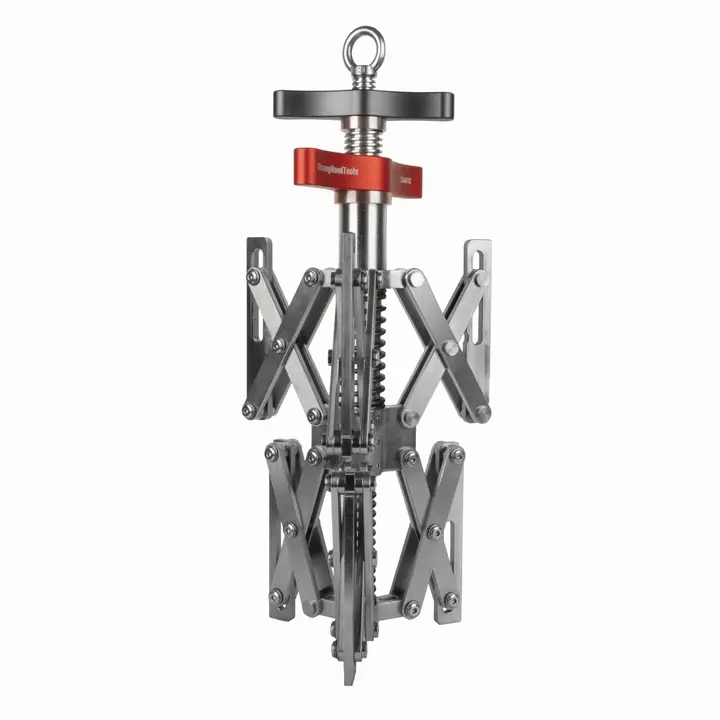

"The Spider" Internal Fit-Up Clamps
CNC Machined for Precise Alignment
Stainless Steel Contact Points
All contact points are made from durable stainless steel, offering superior resistance to corrosion and wear.

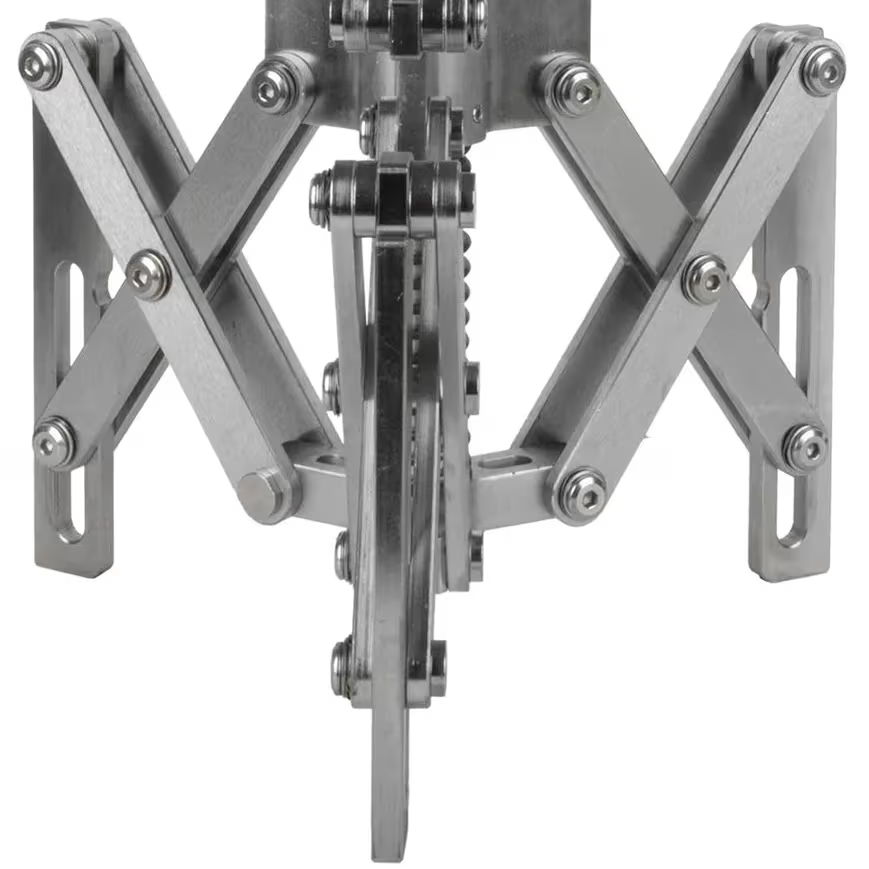

Dual Locking Legs Adjustment

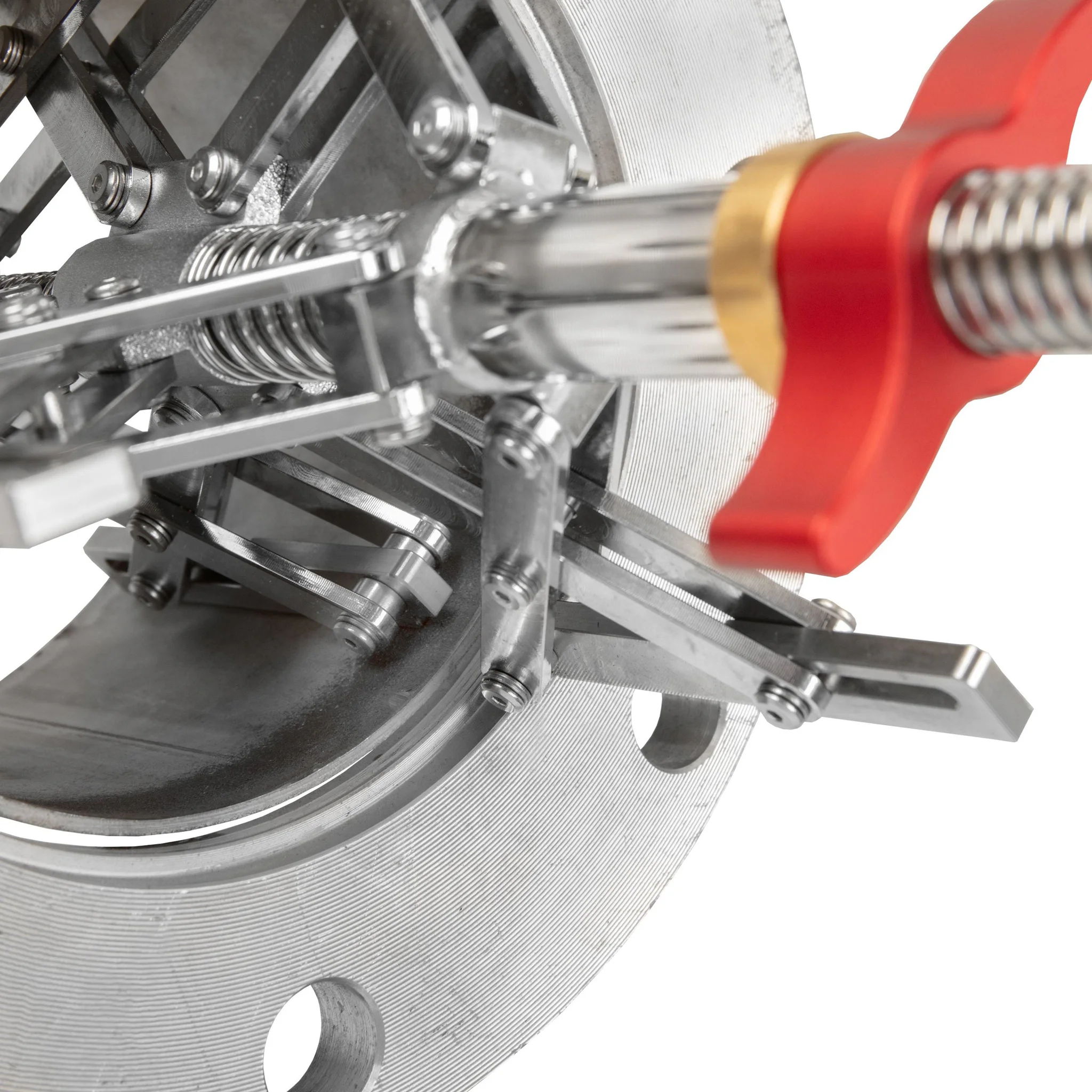

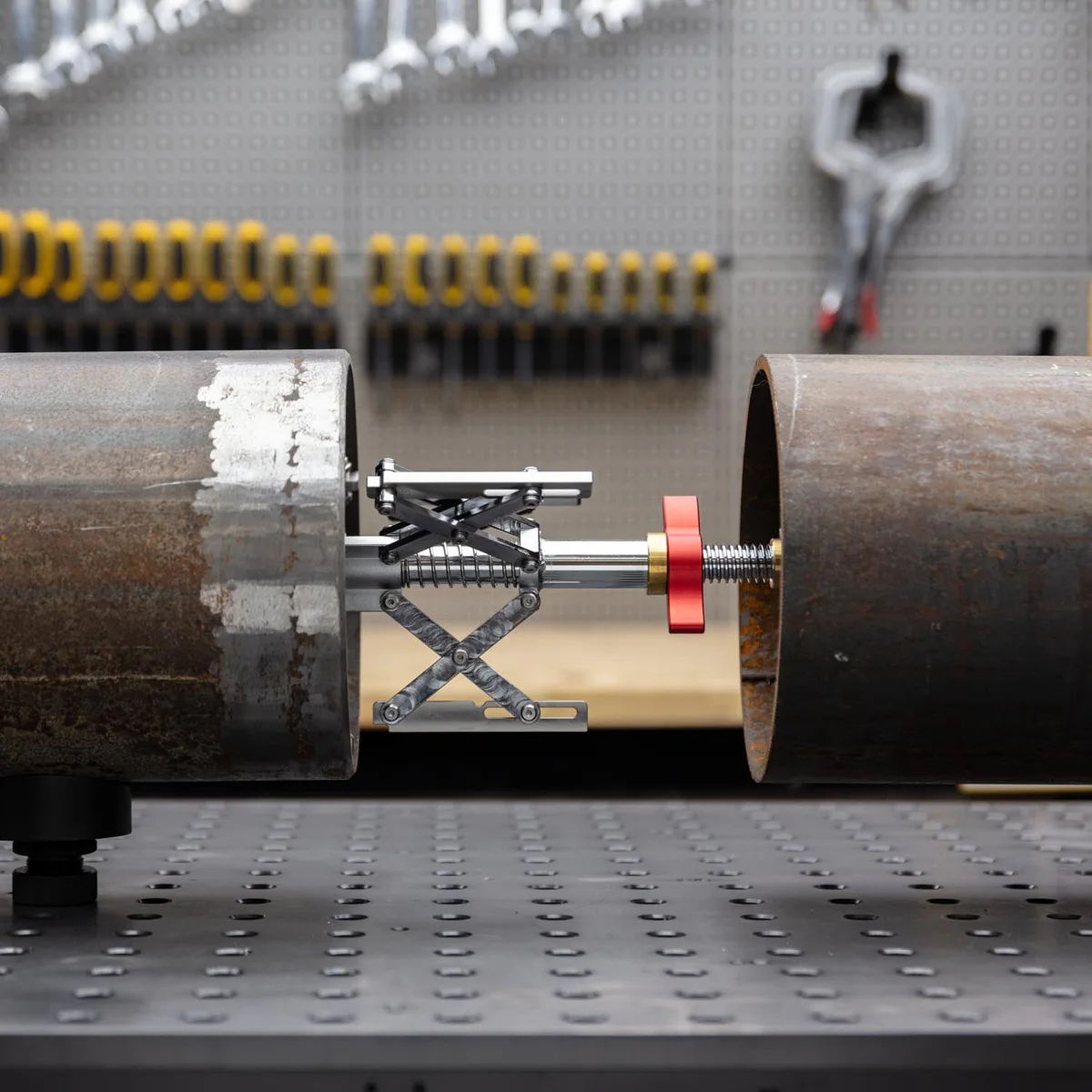

Two knobs for independent adjustment of the front and rear sections. Expand one set of Locating Legs to anchor securely within the pipe, while the second set of legs adjusts to perfectly align the pipe or flange.
Versatile Fit
Accommodates a variety of pipe diameters from 100 to 200 mm (200 to 300 mm), weighing under 9 kg, providing flexibility for various welding projects.
CNC Machined for Precise Alignment
CNC machining ensures smooth adjustments and accurate alignment, making it easy to achieve optimal positioning for every weld.
Stainless Steel Contact Points
All contact points are made from durable stainless steel, offering superior resistance to corrosion and wear.
Dual Locking Legs Adjustment
Two knobs for independent adjustment of the front and rear sections. Expand one set of Locating Legs to anchor securely within the pipe, while the second set of legs adjusts to perfectly align the pipe or flange.
Versatile Fit
Accommodates a variety of pipe diameters from 100 to 200 mm (200 to 300 mm), weighing under 9 kg, providing flexibility for various welding projects.

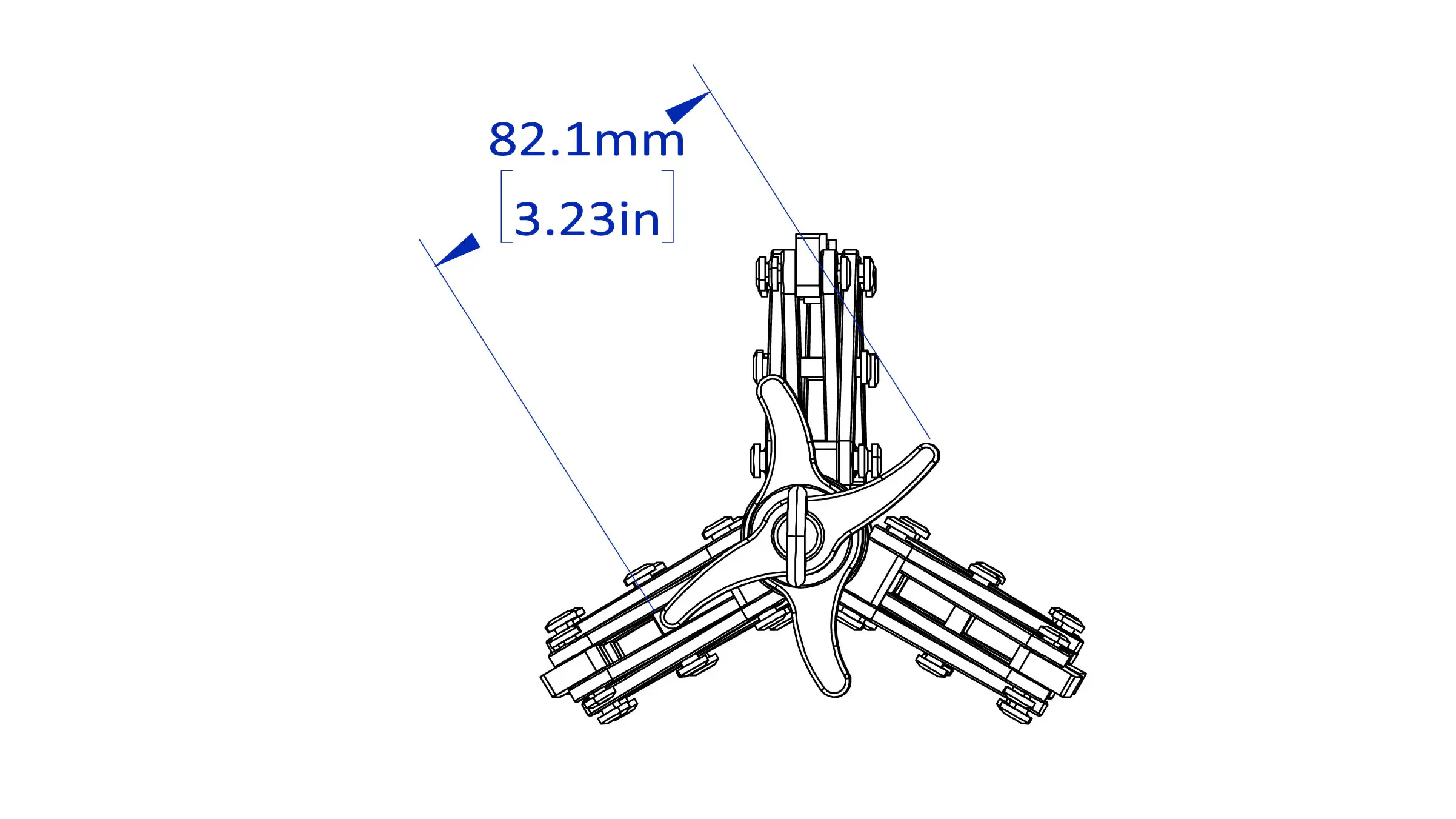

For Flanges 100 - 200 mm
| Part No. |
| CSA480 |
| Flange (mm) |
| 100 ~ 200 |
| Internal Diameter (mm) |
| Ø83 ~ Ø207 |
| Flange Weight Capacity (kg) |
| Less than 9 |

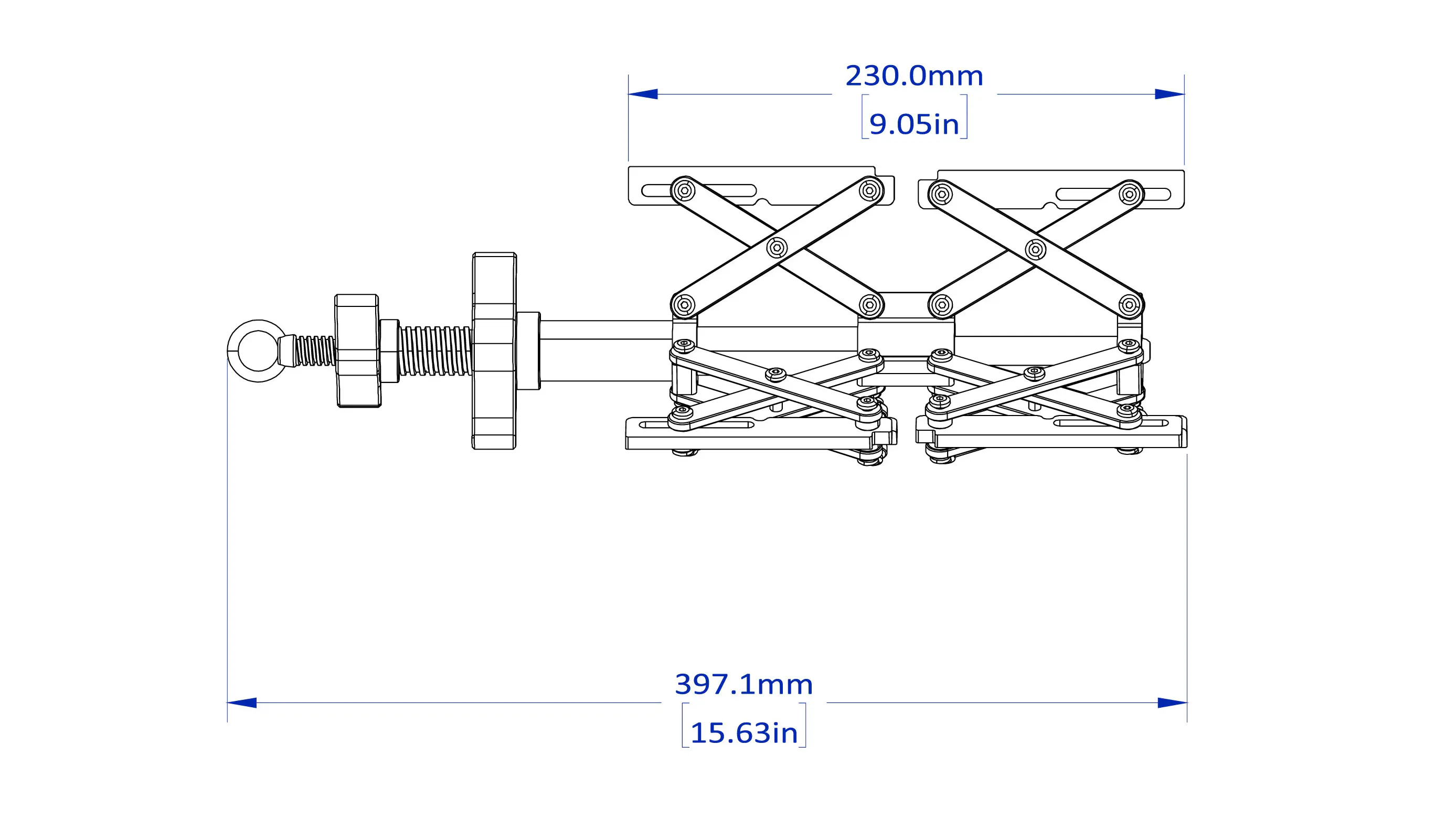

| Overall Length (mm) |
| 397.1 |
| Weight (kg) |
| 2.7 |

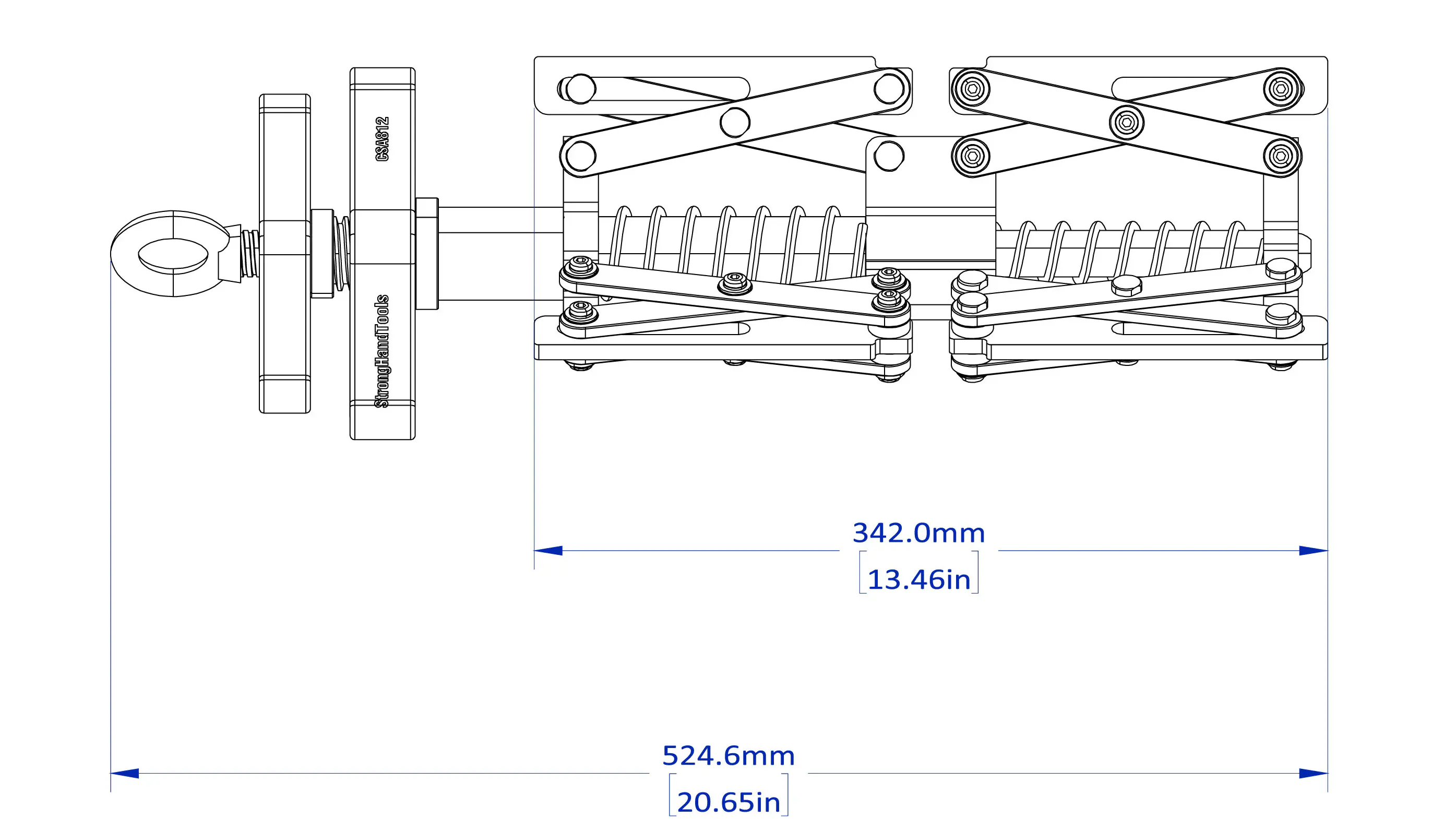

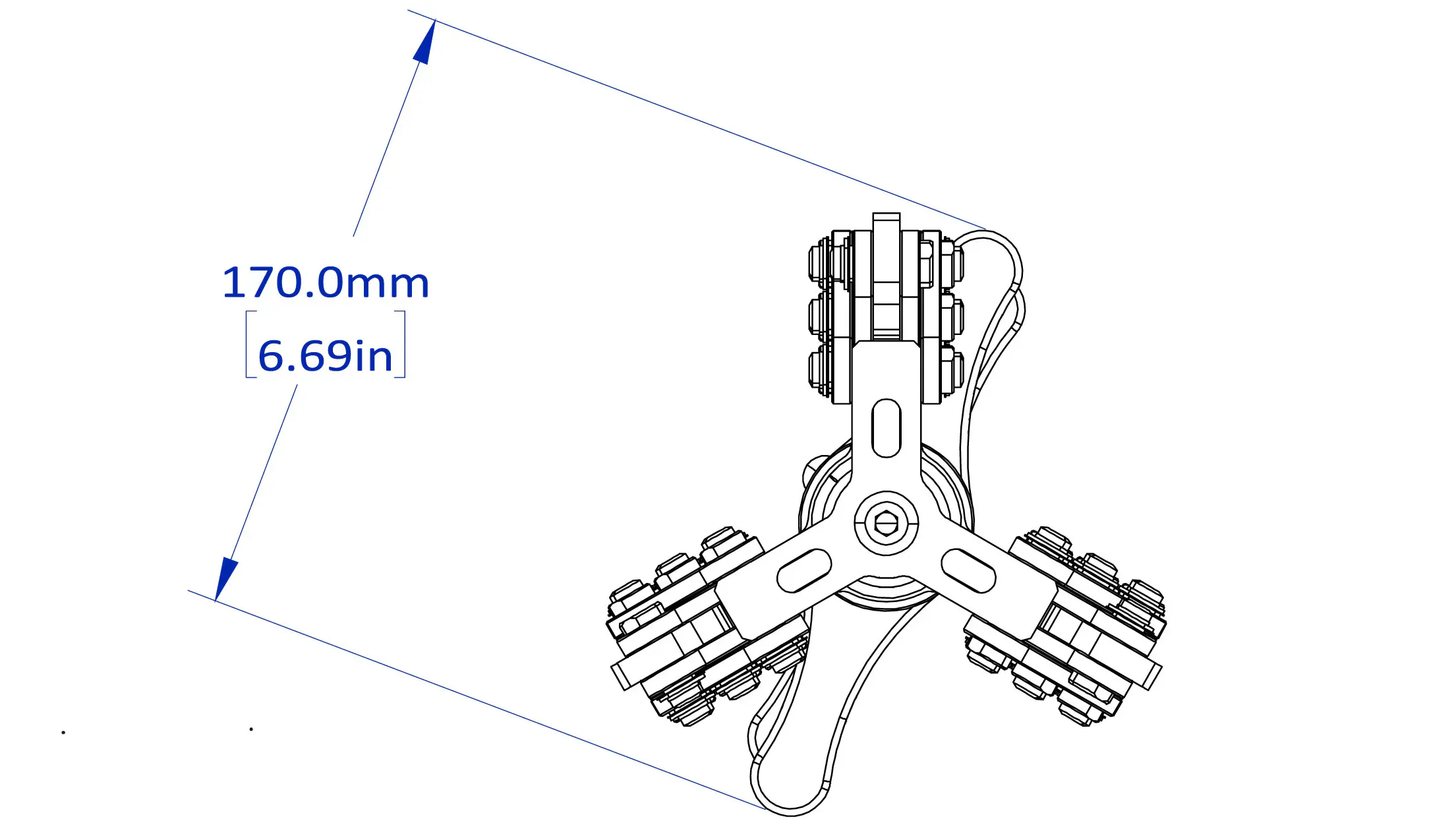

For Flanges 200 - 300 mm
| Part No. |
| CSA812 |
| Flange (mm) |
| 200 ~ 300 |
| Internal Diameter (mm) |
| Ø170 ~ Ø322 |
| Flange Weight Capacity (kg) |
| Less than 25 |
| Overall Length (mm) |
| 524.6 |
| Weight (kg) |
| 8.7 |
