MAX Slotted Tables, 1160 x 1150 mm

SKU: TMD61211SV

All BuildPro® Tables are constructed from 16 mm thick steel plate, with Ø 16 mm CNC machined and holes chamfered in a 50 mm grid pattern.

All Slotted tables have 40 mm slots between plates.

Actual Table Surface Dimension: 1,160 x 1,150 mm
Tabletop Side Height: 160 mm

* All load capacities are calculated based on static load.

* Optional Leg Brace Assembly TMLBR47 is suggested.

U.S. PAT. 8065967
Regular price €3,160.00
Sale price €3,160.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
Finish:
Legs:
This is a pre order item. We will ship it when it comes in stock.
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

* ALL MAX TABLES ARE PATENTED: U.S. PAT. 8065967
Our slotted, single-sided heavy-duty tables feature open gaps between the top plates. Providing extra versatility, allowing you to slide clamping tools or pliers using T-Slot adapters or Sliding Channel on the open slot edges as clamping surfaces.
Available in standard and nitrided tabletop finishes.

REVERSIBLE Self-Locating Plates

Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!

2X LIFE! The reversibility doubles the table lifespan.

Tabletop Side Height

160 mm for both MAX and MAX Slotted tables

Table Accuracy

Table Flatness: 0.3 mm per 1,000 mm
Hole Spacing: 50 mm
Hole Diameter: 16 mm
Plate Thickness: 16 mm
Slot: 40 mm

Standard (plain) / Nitrided Finish

Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish.

What People Say About Us

A must have welding table for any fabricator! Perfect addition to our High School welding program.

Adam S

Hazel Park, MI, USA

My BuildPro expands capabilities in manufacturing and reduces setup time for the 10+ fixtures that we use. It is a space saver!

Austin N

Pro-Grow Supply

We make pump assemblies that we could not weld in-house on a typical bench. The BuildPro table holds the parts firmly to maintain accurate weldments.

Jason C

Industrial Flow Solutions

Discover Options

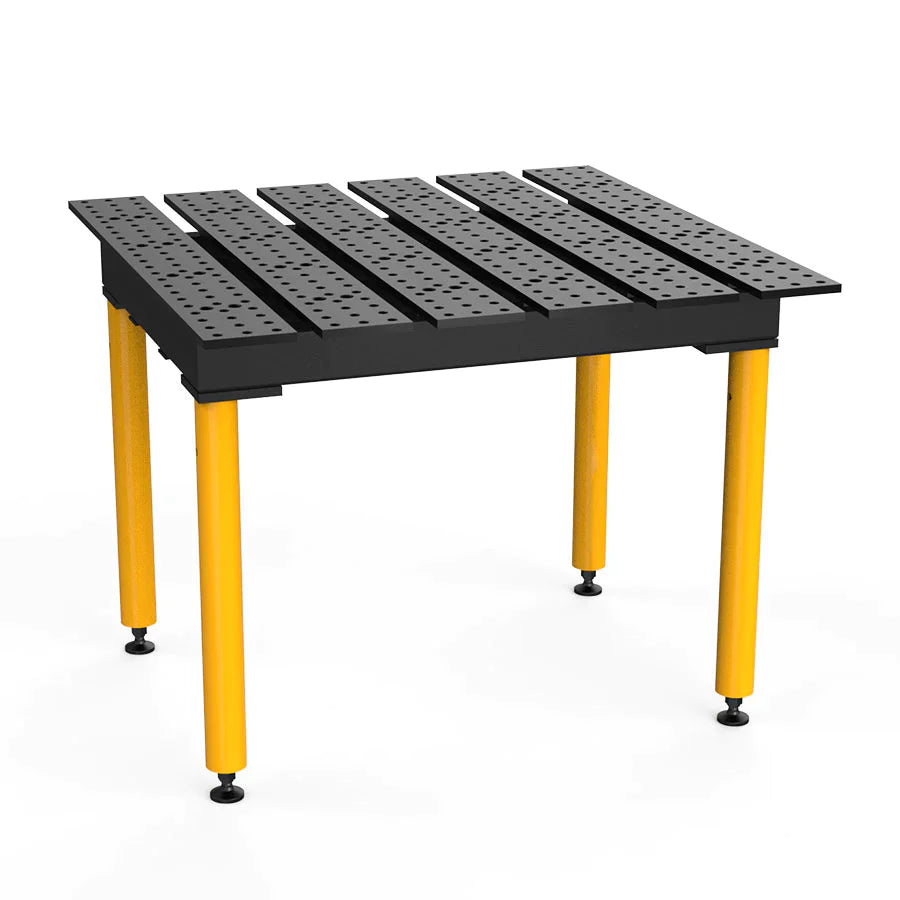

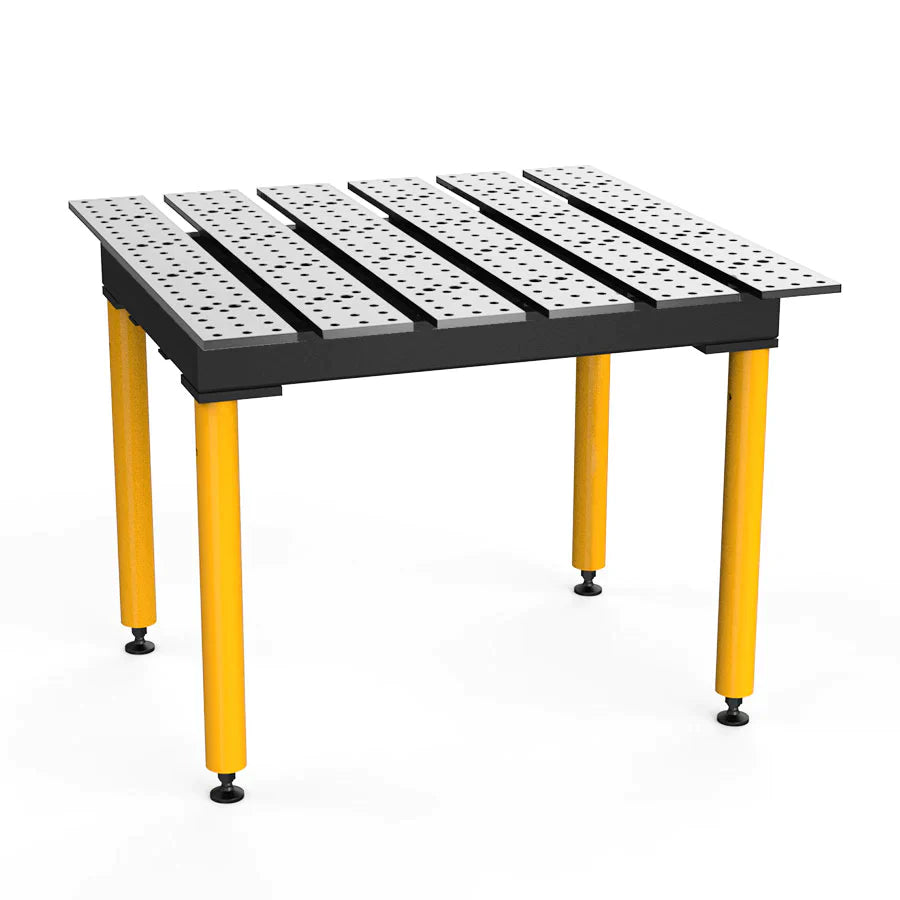

Tabletop + Fixed Length Legs

Capacity: 680 kg per Leg
Part No. (Standard) Part No. (Nitrided) Includes Leg Table Surface Height (mm) Gross Weight (kg)
TMD61211SV
TMQD61211SV
TML3130
927
247
TME61211SV
TMQE61211SV
TML2530
777
243

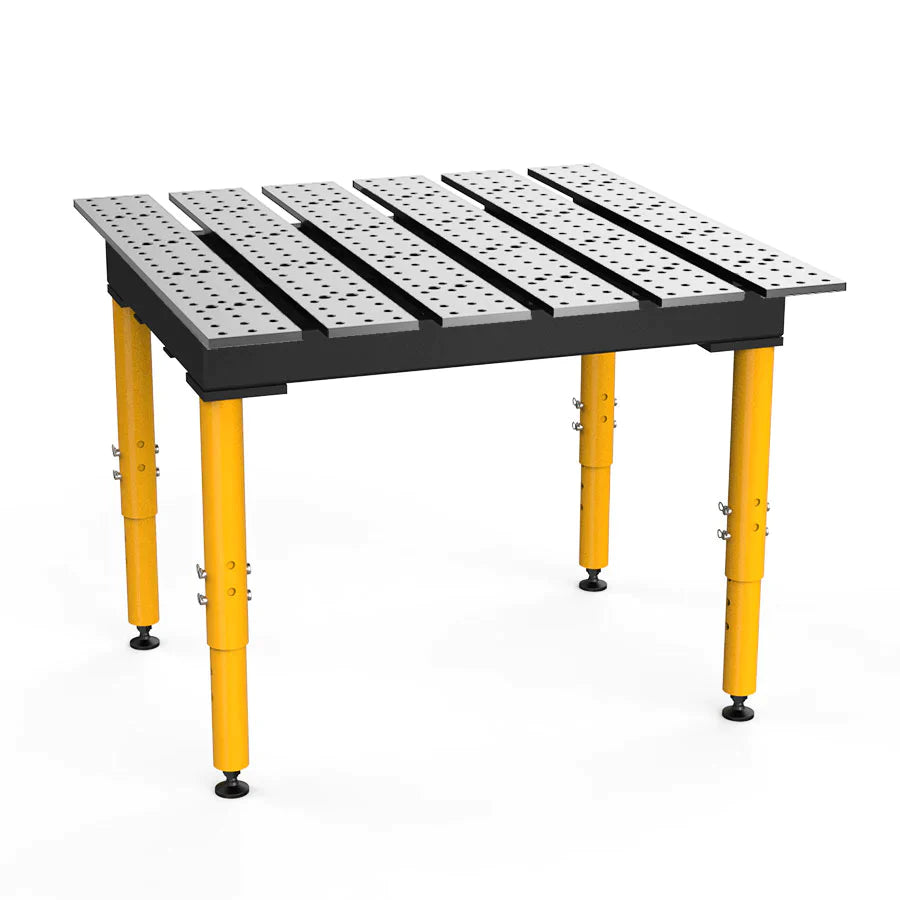

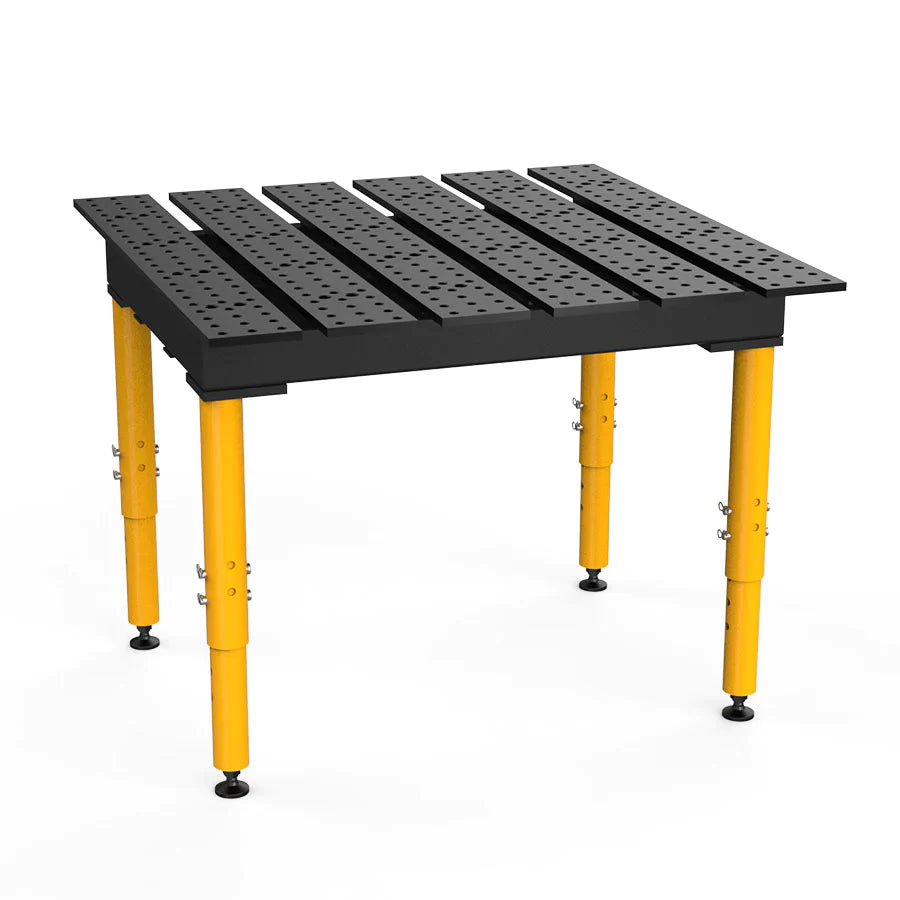

Tabletop + Height-Adjustable Legs

Capacity: 680 kg per Leg
Part No. (Standard) Part No. (Nitrided) Includes Leg Table Surface Height (mm) Gross Weight (kg)
TMR61211SV
TMQR61211SV
TMLR30
725 ~ 979
251

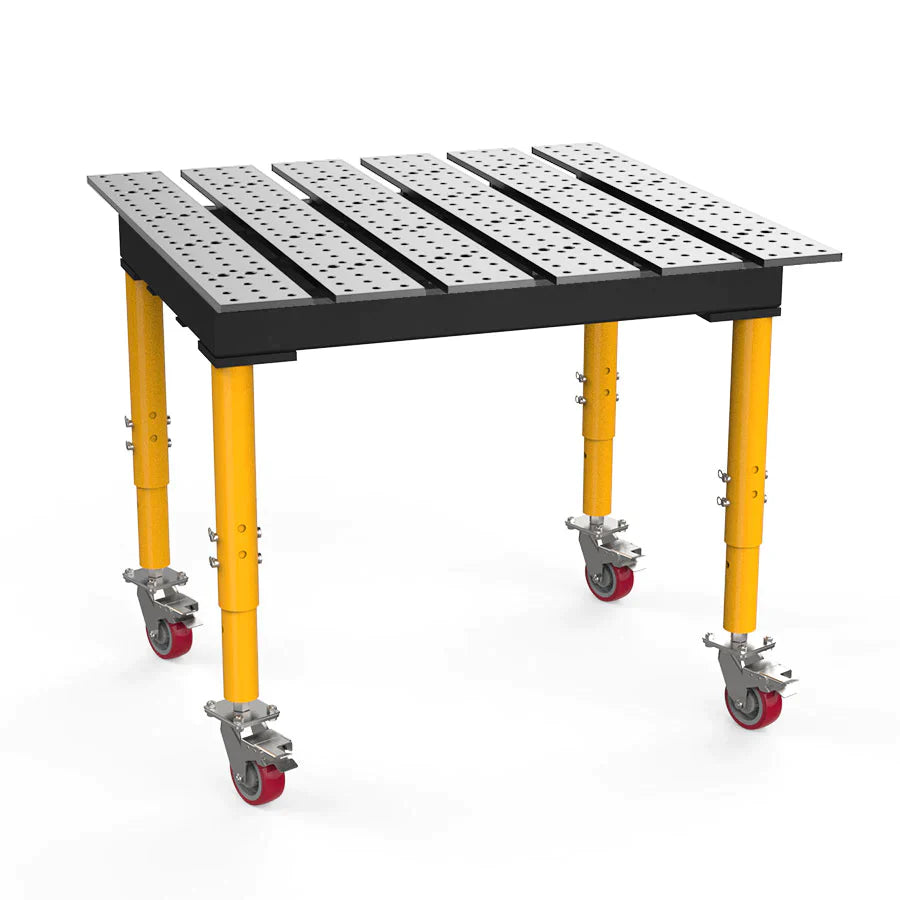

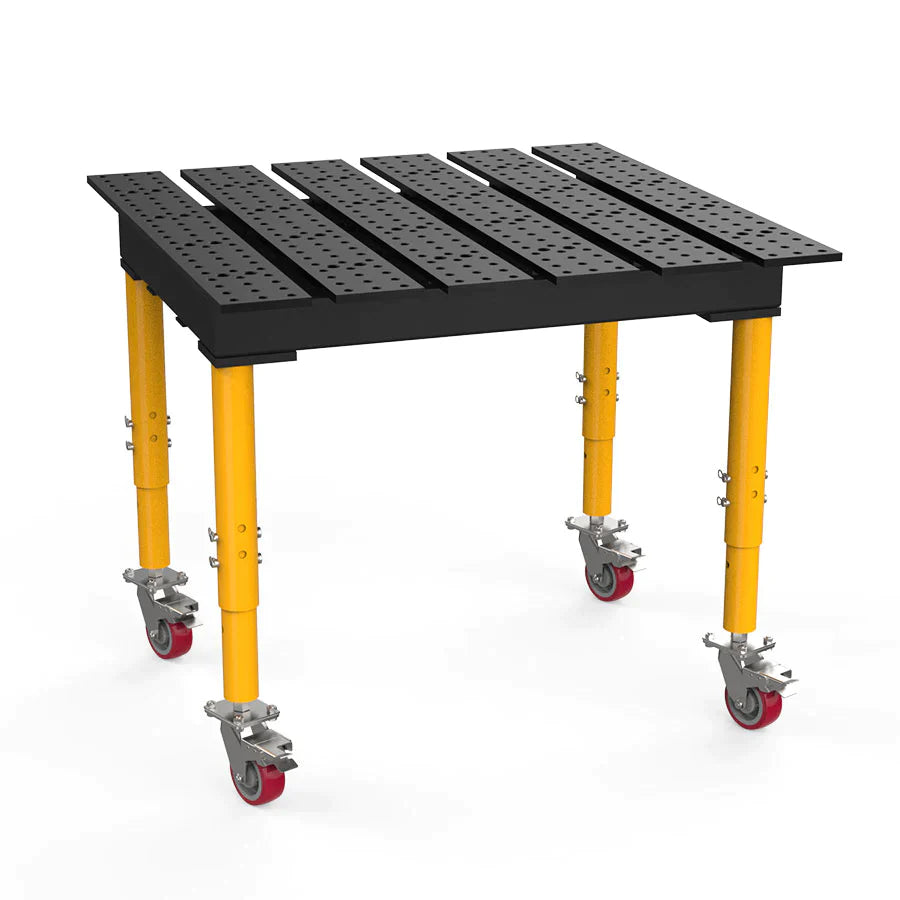

Tabletop + Height-Adjustable Legs with Mobility Caster

Capacity: 300 kg per Leg
Part No. (Standard) Part No. (Nitrided) Includes Leg Table Surface Height (mm) Gross Weight (kg)
TMRC61211SV
TMQRC61211SV
TMLC30
845 ~ 1,100
266
