This table was used as a display piece at an exhibition and may show minor signs of use. All such tables are sold as-is and are not eligible for returns, exchanges, or refunds.
Sold out
Patented

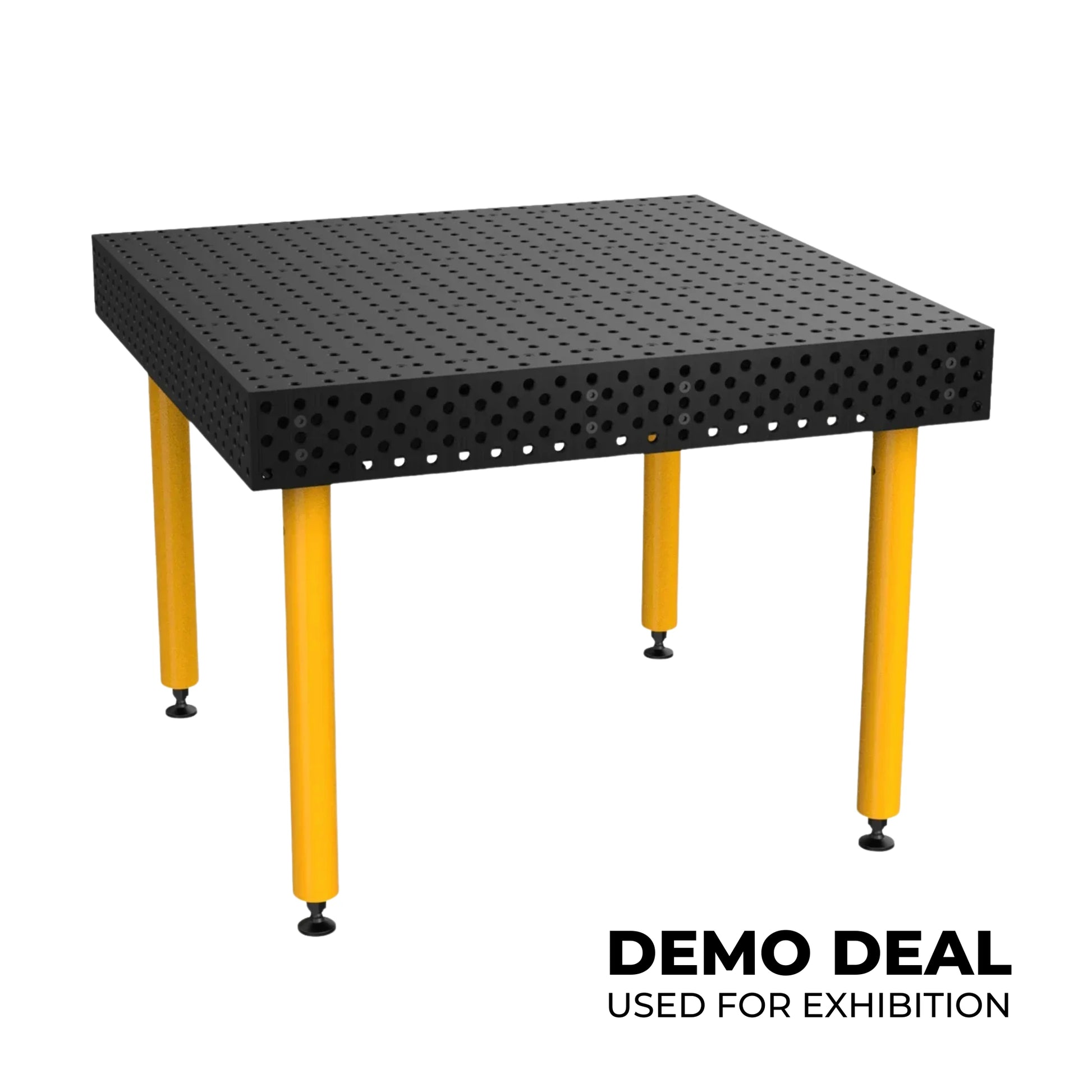

Alpha 16 Welding Table, 1200x1200 mm, Nitrided [Demo Deal]
Alpha 16 Welding Table, 1200x1200 mm, Nitrided [Demo Deal]
Regular price
€1,850.00
Sale price
€1,850.00
Regular price
Shipping calculated at checkout.
Out of stock
16 mm
Hole Diameter
50 mm
Hole Spacing
Nitrided
Material Finish
Reversible
Plates
-
Estimated delivery: May 06 - May 10
Couldn't load pickup availability
Manual Download
Manual Download
Alpha 16, 1200x1200 mm
The new heavy-duty table line from BuildPro, it features 5 sides fitted with 16 mm diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.
Available in standard and nitrided tabletop finishes.
Tabletop Information
| Hole Diameter: |
| 16 mm |
| Grid Pattern: |
| 50x50 mm |
| Tabletop Size: |
| 1200x1200 mm |
| Tabletop Thickness: |
| 12 mm |
| Surface Hardness: |
| 58-62 HRC (top) |
| Coefficient of Friction: |
| 0.37 |
| Optional Finish: |
| Nitrided |
| Nitriding Case Depth: |
| 0.01 - 0.02 mm |
| Table Flatness: |
| 0.3 mm / 1,000 mm |
| Tabletop Side Height: |
| 150 mm |
| Capacity: |
| 680 kg per Leg |
| Gross Weight: |
| 315 kg |
Features
Reversible Self-Locating Table Plates
Each table plate can be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
Table Accuracy
Table Flatness: 0.3 mm / 1,000 mm
Hole Spacing: 50 mm ±0.0254
Hole Diameter: 16 mm
Plate Thickness: 12 mm ±0.1016
Tabletop Side Height
Our five-sided tables feature a 138 mm side plate combined with the top plate to create a 150 mm height.
Alpha table side plates feature an extended 5 borehole pattern for added precision and adjustability.
Nitrided Tabletop
All top and side plates are constructed from heat-treated steel, hardened to 58-62 HRC (top) and 50-55 HRC (side), and finished with a nitride coating with a case depth of 0.01 - 0.02 mm.
