Universal Flange Clamping Plate, 16 mm Holes

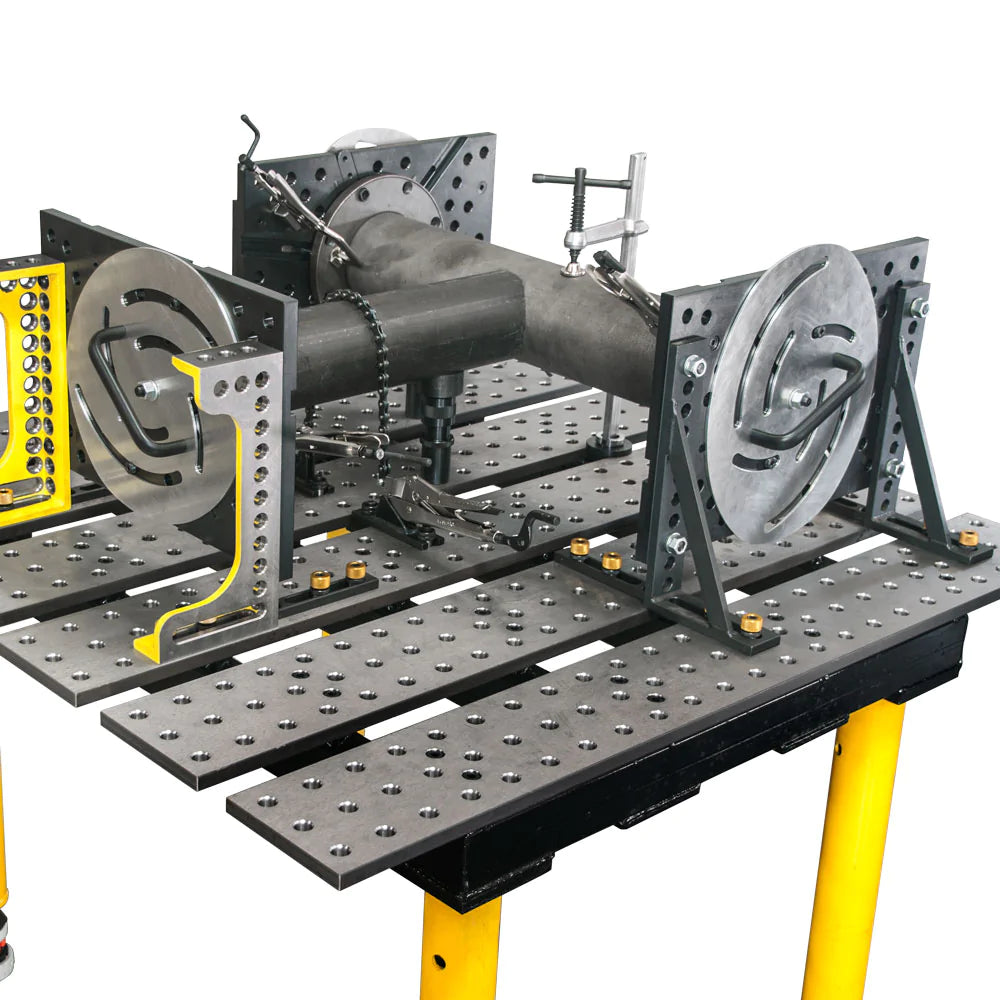

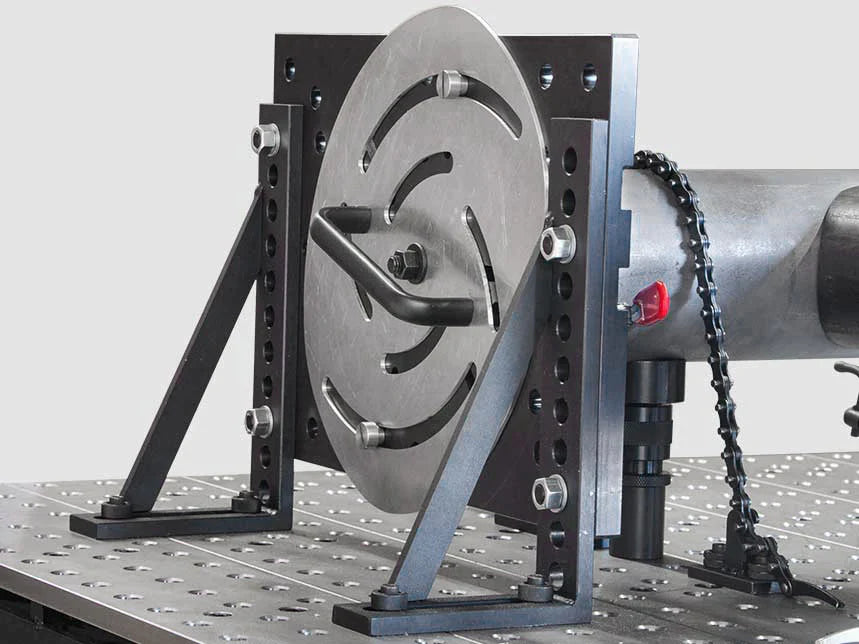

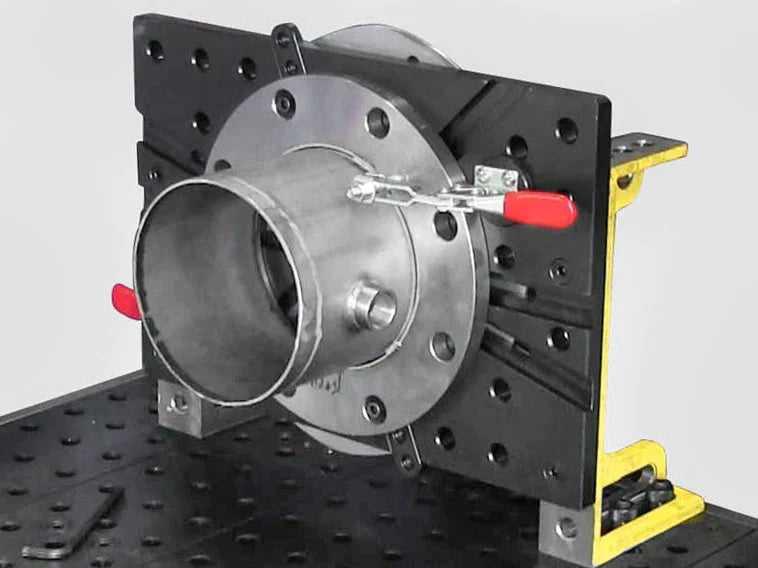

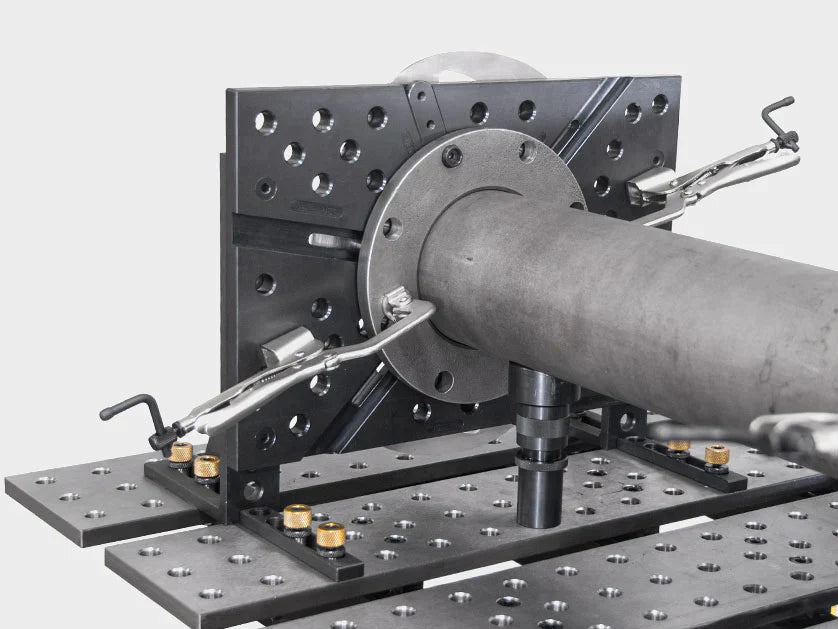

Hold ASME / ANSI / DIN Standard Flanges in position for flange + pipe joining!

Reduce set-up time and increase weld quality for greater repeatability.

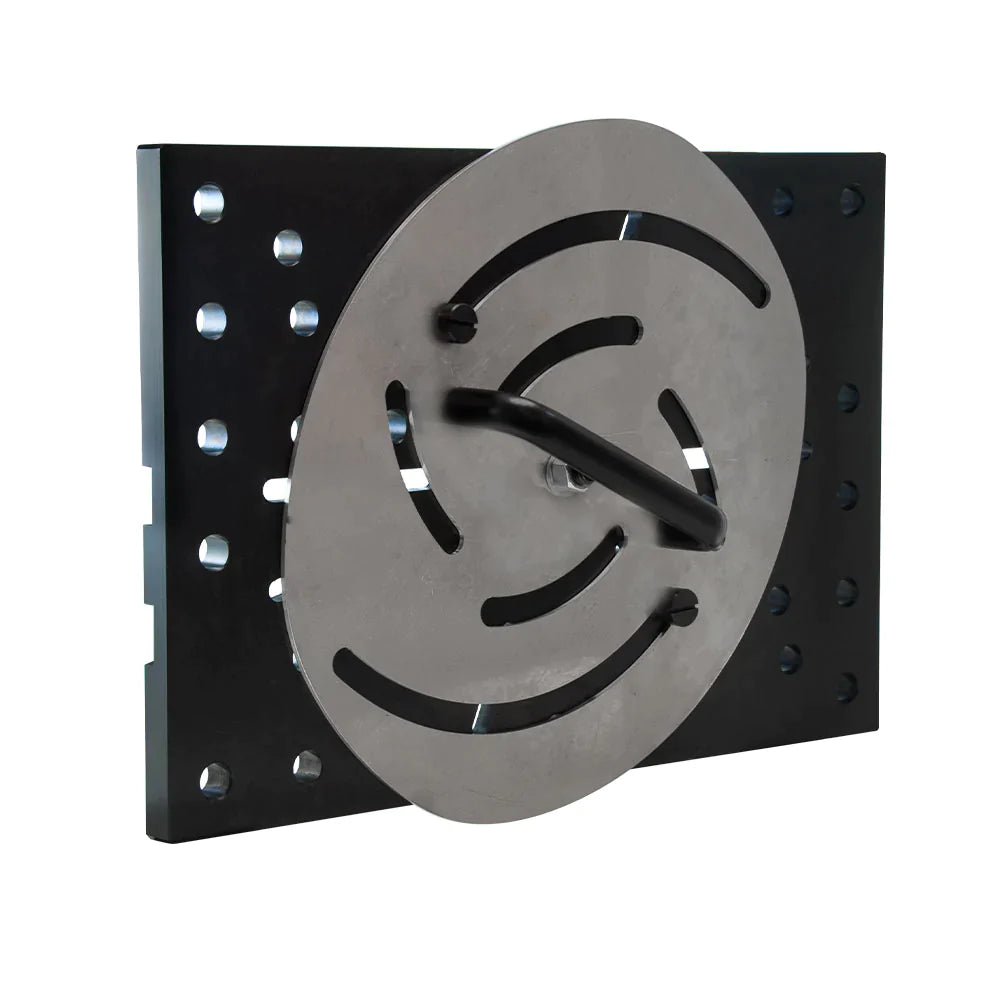

Hold, accurately locate, and securely clamp down standard flanges. Guide Blocks in the Flange Clamping Plate expand or contract symmetrically to accurately locate the flange for greater weld quality. The patent pending Flange Clamping Plate provides full welding clearance, and allows easy removal of the finished weldment.

Fits standard flanges with these specifications:

• Hole circle diameter range: 76.2 – 465 mm
• Number of bolt holes: 4, 8, 12, 16

U.S. PAT.9827636
